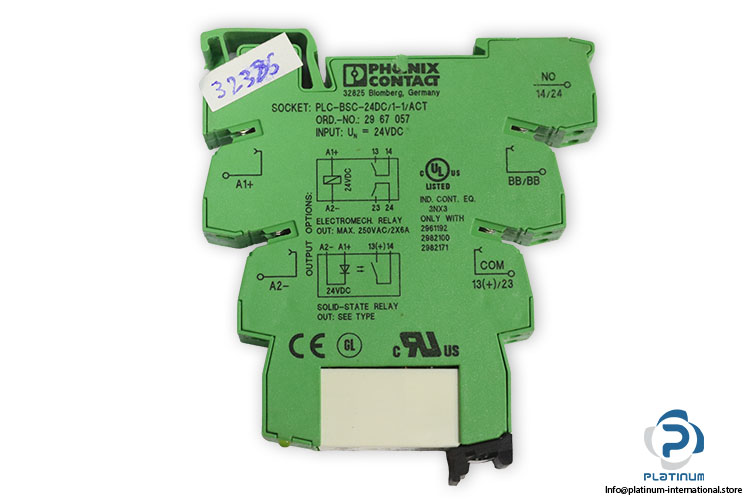

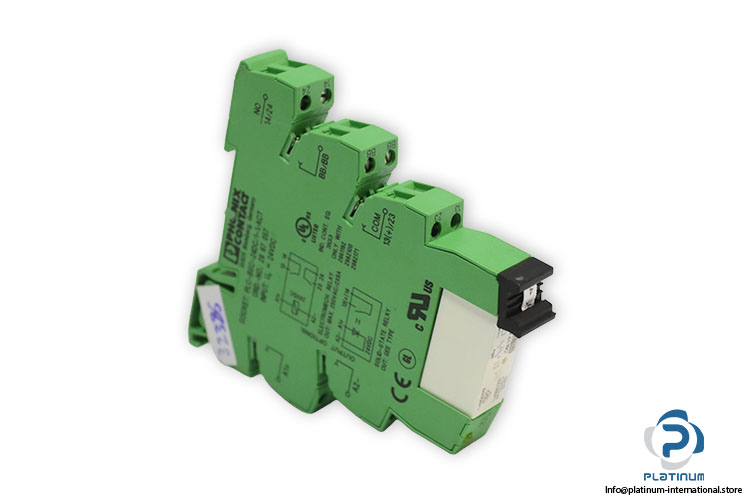

Phoenix Contact PLC-BSC- 24DC/ 1- 1/ACT Relay Module
Relay Module
A compact and efficient relay module designed for fast response, reliable signal switching, and long-term performance in PLC and industrial automation systems.PHOENIX CONTACT PLC-BSC-24DC/1-1/ACT Relay Module
A compact and high-performance relay module designed for fast switching, reliable signal isolation, and efficient control in electrical and industrial automation systems. Part of the PLC-INTERFACE family, this module offers secure connections, stable operation, and long service life, making it suitable for control cabinets, PLC systems, and industrial equipment. Manufacturer: PHOENIX CONTACT
Type: Relay Module
Model: PLC-BSC-24DC/1-1/ACT
Order No.: 2967057
Relay bases and sockets for various relay types are available.
For compatible options, please contact us directly or visit our website to view all available models.
| Product Family | PLC-INTERFACE |
| Rated Control Voltage | 24 V DC |
| Status Display | LED |
| Contact Type | 1 N/O Contact |
| Connection Name | Input Side |
| Connection Method | Screw Connection |
| Stripping Length | 8 mm |
| Screw Thread | M3 |
| Conductor Cross Section (Solid) | 0.14 mm² / 2.5 mm² |
| Temperature Range | -40 / 60 °C |
| Dimensions | 80 x 6.2 x 94 mm |

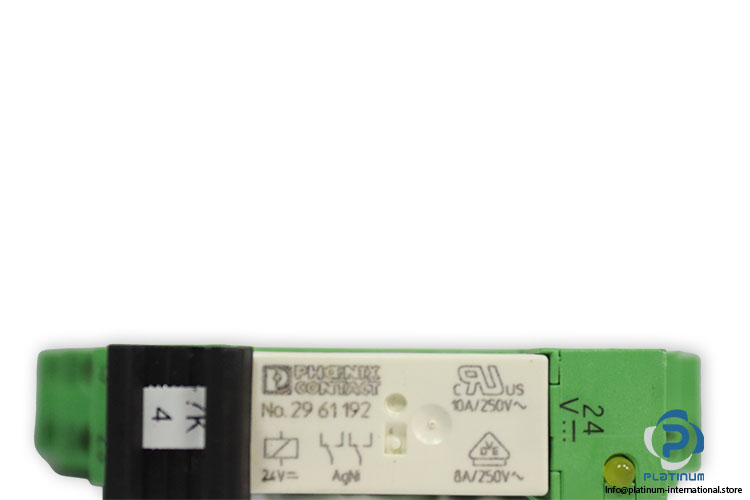

| Attached With | PHOENIX CONTACT 2961192 Single Relay |
| Nominal Input Voltage (UN) | 24 V DC |
| Input Voltage Range | 15.6 V DC ... 59.52 V DC |
| Drive and Function | Monostable |
| Drive (Polarity) | Non-polarized |
| Typical Input Current at UN | 17 mA |
| Typical Response Time | 7 ms |
| Typical Release Time | 3 ms |
| Contact Switching Type | 2 Changeover Contacts |
| Type of Switch Contact | Single Contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 5 V (10 mA) |
| Limiting Continuous Current | 8 A |
