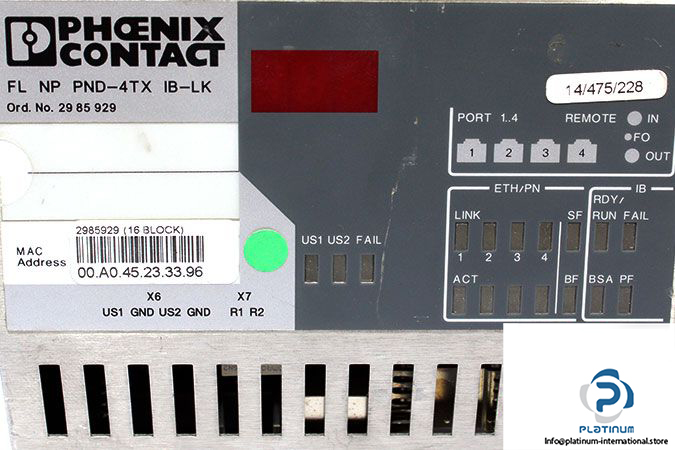

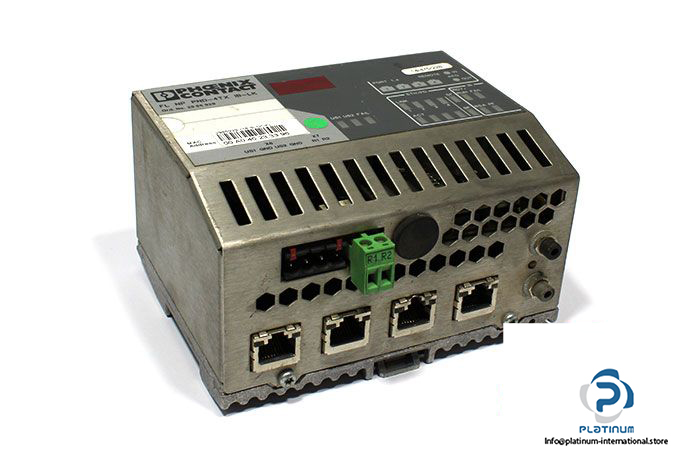

Phoenix Contact Proxy FL NP PND-4TX IB-LK 29 85 929 Profinet-Proxy

Manufacturer: Phoenix Contact

Type: PROFINET-PROXY

Model: PROXY FL NP PND-4TX IB-LK

MNR: 2985929

Function: Proxy for PROFINET-RT, G4 functionality, INTERBUS proxy for fiber optics with integrated 4-port switch

Supply voltage: 24 V DC

current consumption: 350 mA

No. of ports: 4

Connection method: RJ45 socket

Air pressure: 80 kPa … 108 kPa (2000 above sea level)

Ambient temperature: -25 °C … 60 °C

Transmission length: 100 m

Degree of protection: IP20

Dimensions: 128 x 95 x 69 mm

Weight: 0.7 kg
