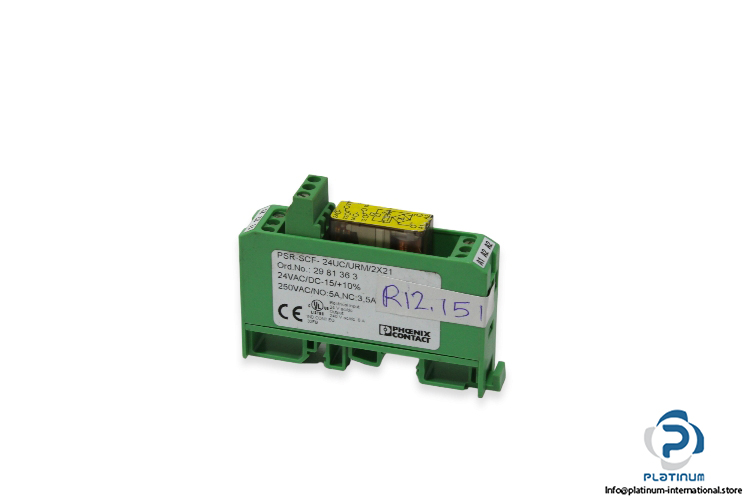

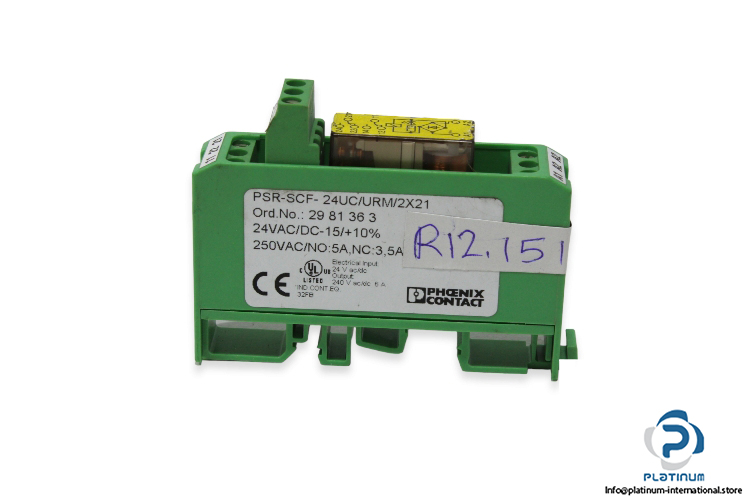

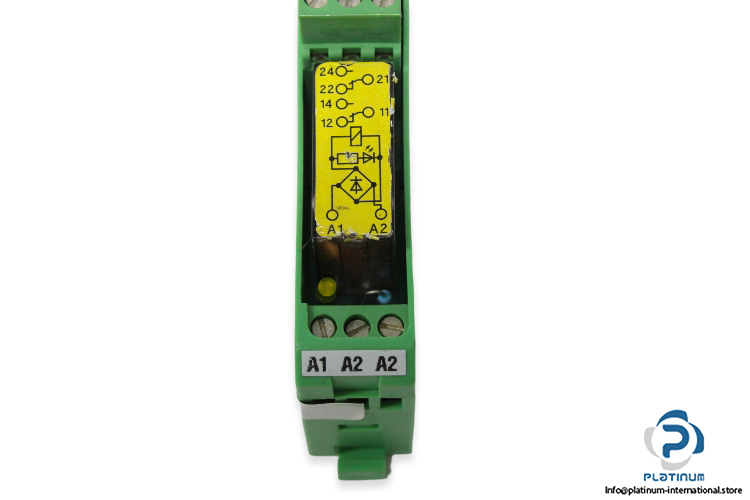

Phoenix Contact PSR-SCF-24UC/URM/2X21 Universal Safety Relay
Manufacturer: Phoenix Contact
Type: Universal Safety Relay
Model: PSR-SCF-24UC/URM/2X21
Order No.: 2981363
Nominal input voltage UN: 24 V AC/DC
Output Data
Minimum switching voltage: 15 V AC/DC
Maximum switching voltage: 250 V AC/DC
Limiting continuous current: 5 A (N/O contact), 3.5 A (N/C contact)
Contacts type: 2 change-over contacts Single pole double through
Contact material: AgNi
Relay type: Electromechanical relay with forcibly guided contacts in accordance with EN 50205
Mounting: DIN rail mounting
Degree of protection: IP20
Connection method: Screw connection
Screw thread: M3
Operating Temperature: -20 °C … 50 °C
