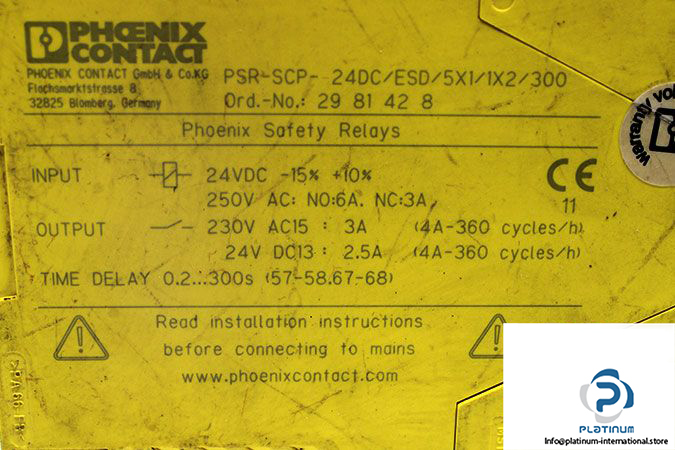

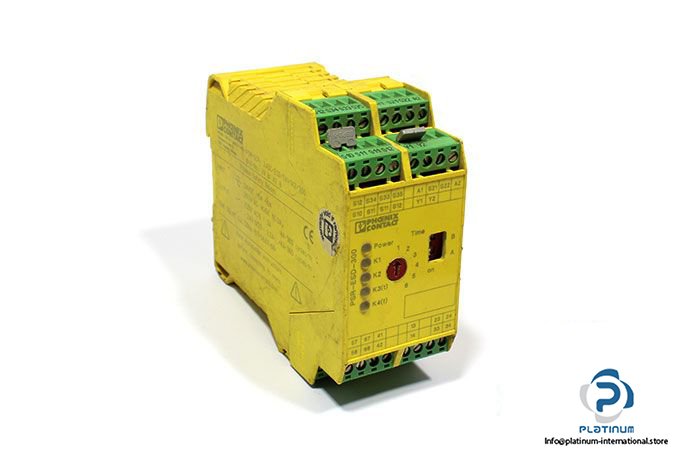

Phoenix Contact PSR-SCP-24DC/ESD/5X1/1X2/300 Safety Relay

Manufacturer: PHOENIX CONTACT

Type: SAFETY RELAY

Model: PSR-SCP-24DC/ESD/5X1/1X2/300

Order No.: 2981428

Supply Voltage: 24 V DC

Output Data:

Maximum switching voltage: 250 V AC

Limiting Continuous Current: NO: 6 A, NC: 3 A

Contacts Type: 5 enabling current paths (Normally open), 1 signaling current path (Normally Closed)

Switching capacity:

230 V AC15: 3 A (4 A-360 cycles/h)

24 V DC13: 2.5 A (4 A-360 cycles/h)

Time Delay: 0.2 … 300 s

Connection method: Screw connection

Housing material: PBT

Degree of protection: IP20

Ambient Temperature: -20 °C … 55 °C

Mounting type: DIN rail mounting

Dimensions: 100 x 110 x 45 mm
