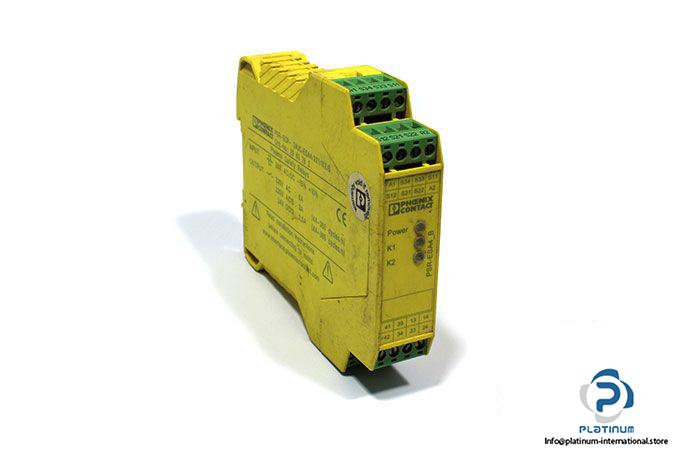

Phoenix Contact PSR-SCP-24UC/ESA4/3X1/1X2/B Safety Relay

Name: PHOENIX CONTACT PSR-SCP-24UC/ESA4/3X1/1X2/B SAFETY RELAY
SKU: 995183
Availability: LimitedAvailability

phoenix-contact-psr-scp-24uc_esa4_3x1_1x2_b_safety-relay-1

phoenix-contact-psr-scp-24uc_esa4_3x1_1x2_b_safety-relay-4

phoenix-contact-psr-scp-24uc_esa4_3x1_1x2_b_safety-relay-2

phoenix-contact-psr-scp-24uc_esa4_3x1_1x2_b_safety-relay-3

Used

In stock1 unitReady to ship

SKU

995183

Category

Safety Relays

Condition

Used

3NO Contact NC Phoenix Relays Safety

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: PHOENIX CONTACT

Type: SAFETY RELAY

Model: PSR-SCP-24UC/ESA4/3X1/1X2/B

Order No.: 2963763

Supply Voltage: 24 V AC/DC

Output Data:

Maximum switching voltage: 230 V AC

Limiting Continuous Current: NO: 6 A

Contacts Type: 3 enabling current paths (Normally open), 1 signaling current path (Normally Closed)

Switching capacity:

230 V AC15: 3 A (4 A-360 cycles/h)

24 V DC13: 2.5 A (4 A-360 cycles/h)

Number of Channels: 2 Channels

Connection method: Screw connection

Housing material: Polyamide

Degree of protection: IP20

Ambient Temperature: -20 °C … 55 °C

Mounting type: DIN rail mounting

Dimensions: 115 x 100 x 23 mm
