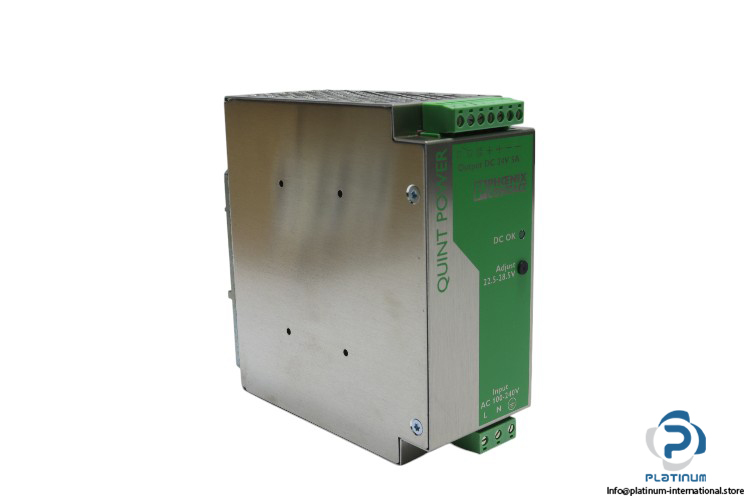

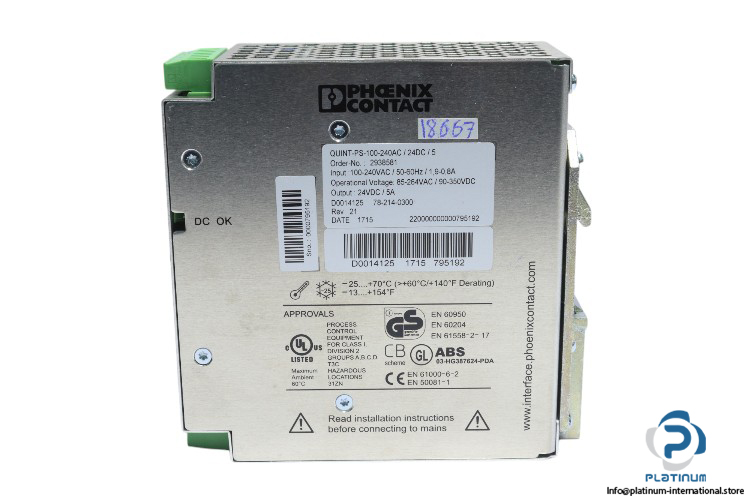

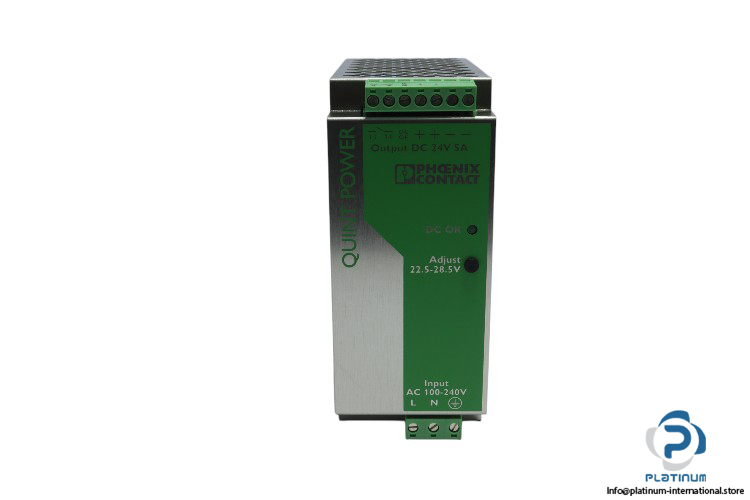

Phoenix Contact QUINT-PS-100-240AC/24DC/5 Power Supply Unit
Power Supply Unit
The Phoenix Contact QUINT-PS-100-240AC/24DC/5 Power Supply Unit provides 24 V DC output with up to 120 W power, wide input voltage range, and IP20 protection. Ideal for industrial automation, it features DIN rail mounting and operates in -25°C to 70°C environments.Phoenix Contact QUINT-PS-100-240AC/24DC/5 Power Supply Unit
The Phoenix Contact QUINT-PS-100-240AC/24DC/5 Power Supply Unit provides reliable and efficient power conversion for industrial applications. It offers a wide input voltage range from 85 V AC to 264 V AC or 90 V DC to 350 V DC, ensuring compatibility with various power sources. With a nominal output voltage of 24 V DC and a maximum output current of 5 A, it provides up to 120 W of power for controlling devices in automation and control systems. This power supply unit features a metal housing, pluggable screw connections, and IP20 protection, making it suitable for installation in industrial control panels. It operates in a wide ambient temperature range from -25°C to 70°C, and its compact design (130 x 55 x 125 mm) ensures space-saving installation.
Manufacturer: Phoenix Contact
Type: Power Supply Unit
Model: QUINT-PS-100-240AC/24DC/5
Output:
Other Information:
This power supply unit is designed for reliable and efficient operation in industrial environments, ensuring continuous power for critical systems while offering protection against environmental factors.
| Input | Nominal input voltage range: 100 V AC ... 240 V AC, 85 V AC ... 264 V AC, 90 V DC ... 350 V DC |
| Inrush Current | 20 A |
| Frequency Range | 45 to 65 Hz |
| Current Consumption | Approx. 1.6 A (120 V AC), Approx. 0.84 A (230 V AC) |
| Nominal Power Consumption | 134 W |
| Input Fuse | 5 A (slow-blow, internal) |
| Connection Method | Pluggable screw connection, M3 screw thread, tightening torque 0.5 - 0.6 Nm |
| Nominal Output Voltage | 24 V DC |
| Setting Range of Output Voltage (USet) | 22.5 V DC ... 28.5 V DC |
| Nominal Output Current (IN) | 5 A |
| Derating | 60 °C ... 70 °C |
| Output Power | 120 W |
| Rise Time | 2 ms |
| Connection Method | Pluggable screw connection, M3 screw thread, tightening torque 0.5 - 0.6 Nm |
| Degree of Pollution | 2 |
| Housing Material | Metal |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25°C to 70°C |
| Dimensions (HxWxD) | 130 x 55 x 125 mm |
