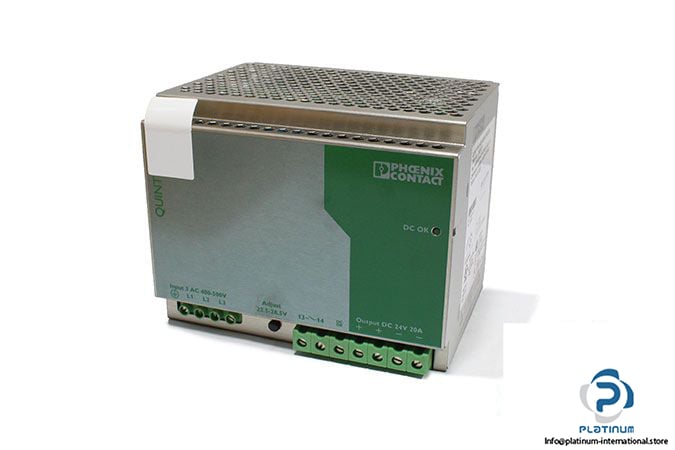

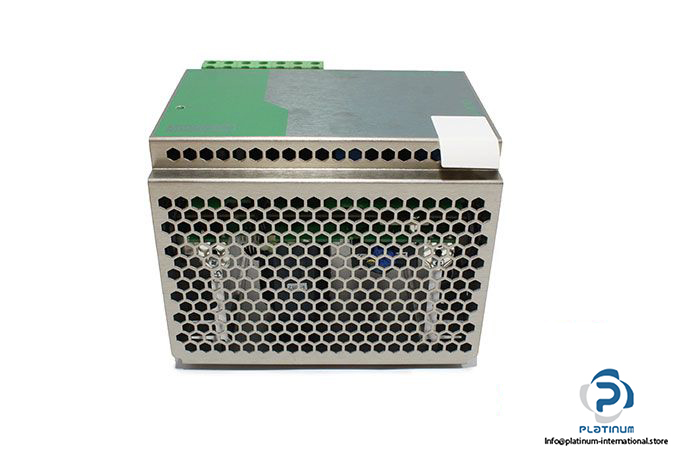

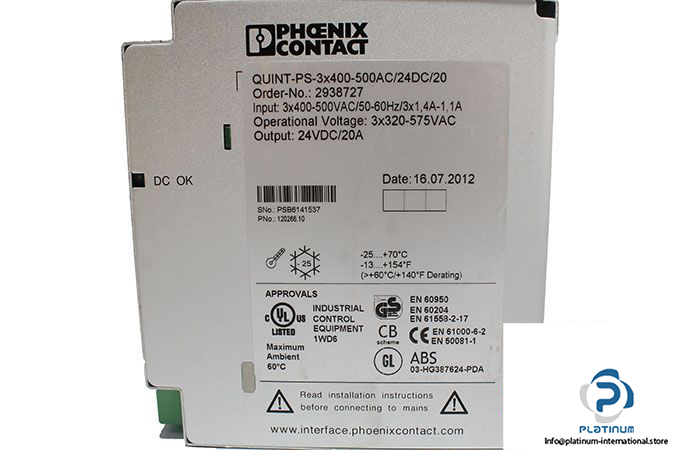

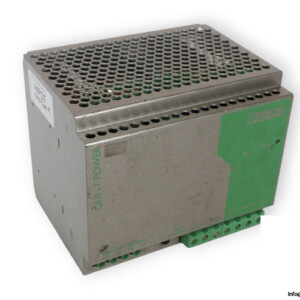

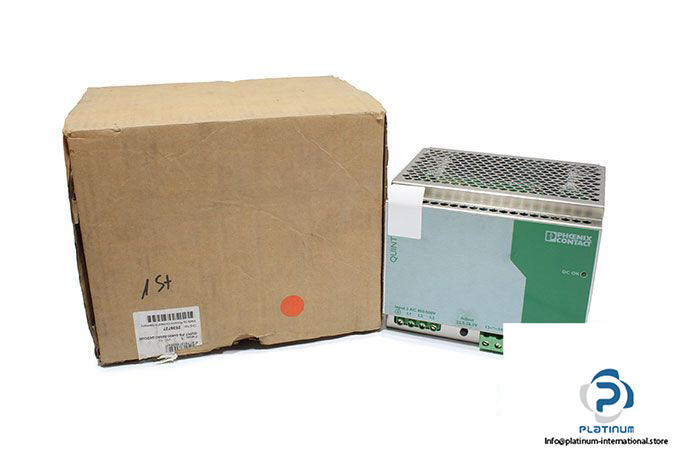

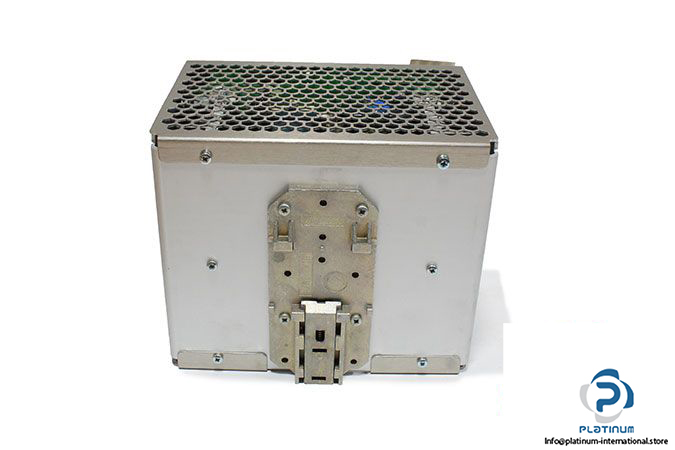

Phoenix Contact QUINT-PS-3X400-500AC/24DC/20 – 2938727 Power Supply Unit

Manufacturer: PHOENIX CONTACT

Type: Power Supply Unit

Model: QUINT-PS-3X400-500AC/24DC/20 – 2938727

Order No.: 2938727

Input:

Nominal Input Voltage Range: 3 phase 400 … 500 VAC

Input Voltage Range: 3 phase 320 … 575 VAC / 450 … 800 VDC

Frequency: 45 … 65 Hz

Nominal Power Consumption: 526 W

Type of Protection: Transient surge protection

Discharge Current: < 3.5 mA Output:

Nominal Output Voltage: 24 VDC

Setting Range of the Output Voltage: 22.5 … 28.5 V

Nominal Output Current: 20 A

Degree of Pollution: 2

Degree of Protection: IP20

Ambient Temperature: -25 °C … 70 °C

Dimensions: 130 X 160 X 125 mm

Weight: 1.9 Kg
