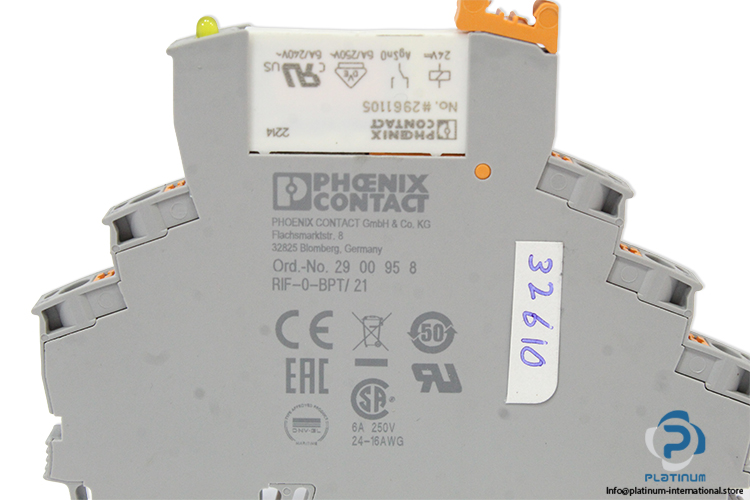

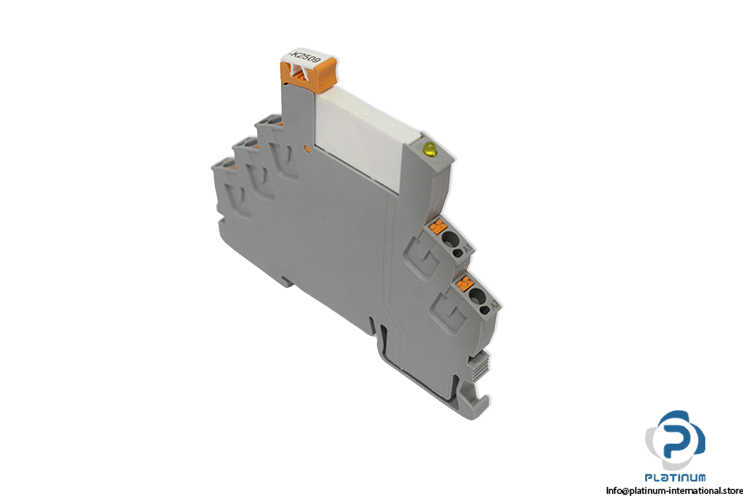

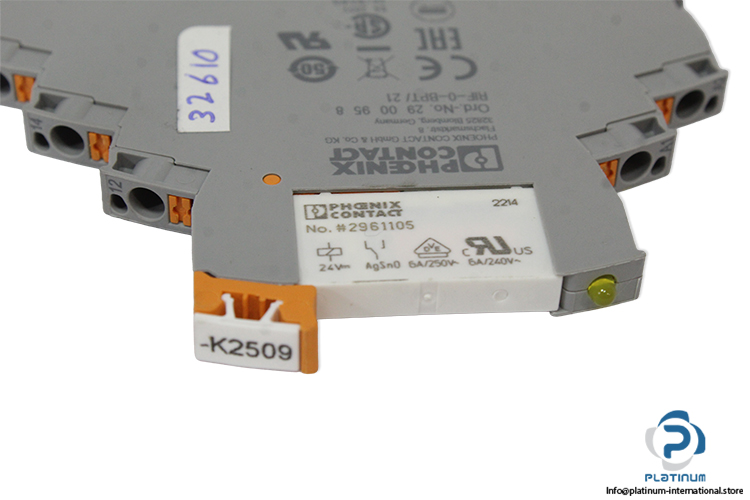

Phoenix Contact RIF-0-BPT/21 Relay Base
New
In stock10 unitsReady to ship
Relay Base Phoenix Contact RIF-0-BPT/21 relay base with push-in connection, freewheeling diode protection, and attached 24 V DC single relay for industrial automation and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2900958 |
| Nominal voltage UN | 250 V AC/DC (Contact side) |
| Nominal current IN | max. 8 A (Depends on application/assembly) Protective circuit :Freewheeling diode |
| Input voltage range | 12 V DC ... 24 V DC |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross-section rigid | 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² Conductor cross-section flexible :0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross-section AWG | 24 ... 16 |
| Dimensions | Width 6.2 mm Height 93 mm Depth 78 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 (Housing) | V2 (Housing) |

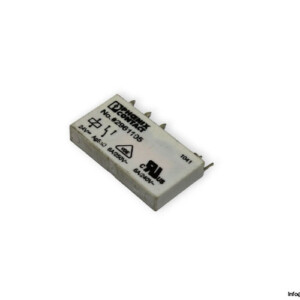

| Attached with | Phoenix Contact 2961105 Single Relay |
| Nominal input voltage UN, Single Relay | 24 V DC |
| Typical input current at UN, Single Relay | 7 Ma |
| Power dissipation for nominal condition, Single Relay | 0.17 W |
| Contact type, Single Relay | 1 Changeover contact (Single pole double through) |
| Switching capacity, Single Relay | 6A/250VAC |
| Contact material, Single Relay | AgSnO |
| Operating Temperature, Single Relay | -40 … +85 °C |
| Dimensions, Single Relay | 5 x 28 x 15 mm |
| Condition | New |
| SKU | 1099097 |
| Weight | 0,02 |
