Phoenix Contact RV8-TP(2,4X0,8)L Marshalling Panel
New
In stock1 unitReady to ship
61,11$
Marshalling Panel
The PHOENIX CONTACT RV8-TP(2,4X0,8)L is a compact potential distributor with 16 connections and 8 potentials. Featuring TERMI-POINT pin technology, it ensures stable connections for efficient control cabinet wiring.4X08)LAutomationBlockComponentContactControlDistributorElectricalEquipmentIndustrialMarshallingPanelPhoenixPotentialRV8-TP(2Termi-PointterminalWiring
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

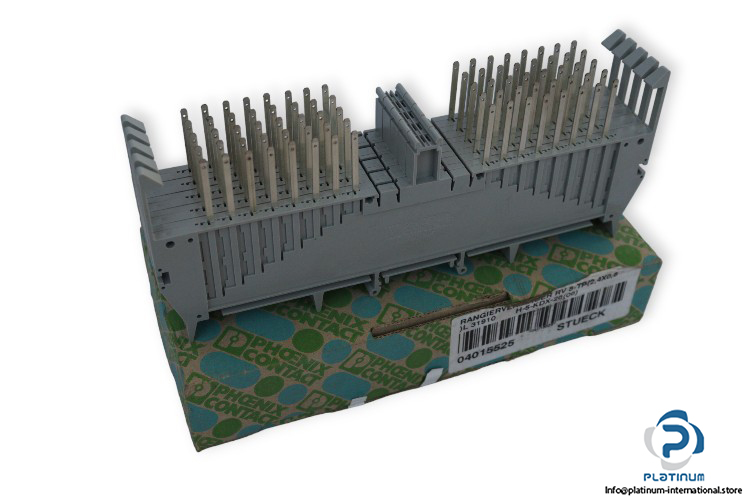

PHOENIX CONTACT RV8-TP(2,4X0,8)L Marshalling Panel
The PHOENIX CONTACT RV8-TP(2,4X0,8)L Marshalling Panel is a high-quality potential distributor designed for organized and efficient signal marshalling in control cabinets. It features TERMI-POINT pin technology for reliable connections, ensuring long-term stability in automation, instrumentation, and control applications. With a compact 7.6 mm width, it provides space-saving wiring solutions while maintaining excellent electrical performance.
Manufacturer: PHOENIX CONTACT
Type: Marshalling Panel
Model: RV8-TP(2,4X0,8)L
Order No.: 31 91 01 3
| Product Type | Potential Distributor |
| Number of Positions | 1 |
| Number of Connections | 16 |
| Number of Rows | 1 |
| Potentials | 8 |
| Rated Surge Voltage | 4 kV |
| Number of Connections per Level | 16 |
| TERMI-POINT Pin Dimensions | 2.4 x 0.8 mm |
| Cross Section AWG | 24 / 20 (Converted Acc. to IEC) |
| Conductor Cross Section (Flexible) | 0.22 mm² / 0.56 mm² |
| Flexible Conductor Cross Section [AWG] | 24 / 20 (Converted Acc. to IEC) |
| Flexible Conductor Cross Section (Ferrule with Plastic Sleeve) | 0.25 mm² / 0.5 mm² |
| Nominal Current | 5 A |
| Maximum Load Current | 5 A |
| Nominal Voltage | 250 V |
| Width | 7.6 mm |
