Phoenix Contact SAC-3P-M 8MS/3,0-PUR Sensor/Actuator Cable

Available on request

Sensor/Actuator Cable

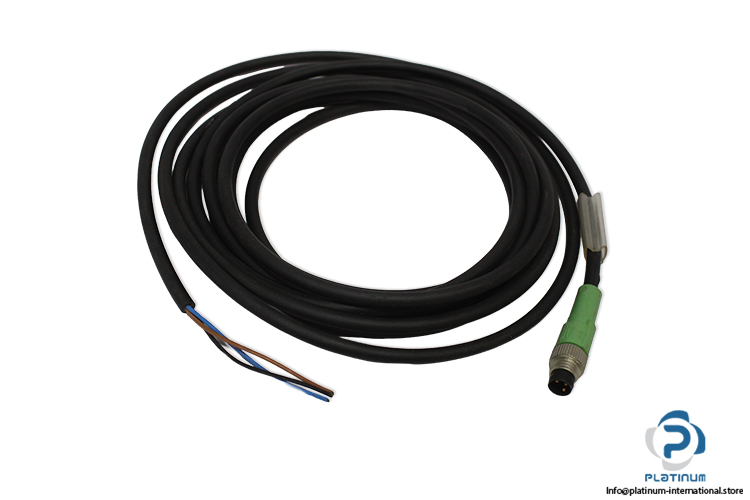

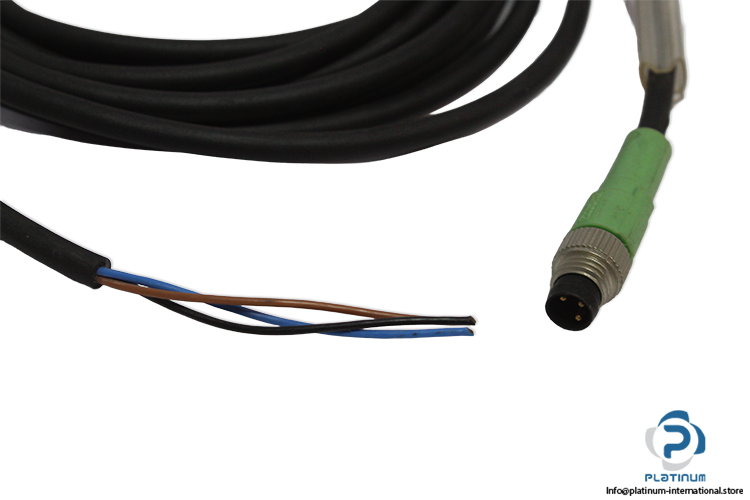

PHOENIX CONTACT SAC-3P-M 8MS/3,0-PUR M8 sensor/actuator cable, 3 m length, 3-pin male connector, PUR sheath, IP65/IP67/IP68 protection, rated 48 V AC / 60 V DC, 4 A.

Manufacturer
PHOENIX CONTACT
SKU
1095634
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.1681677
Cable Length3 m
Connector 13-Pins | Male
Connector 23 Wires / Male
Connection 1 TypePlug Straight M8
Number Of Positions3
Coding TypeA
Connection 2 TypeFree Cable End

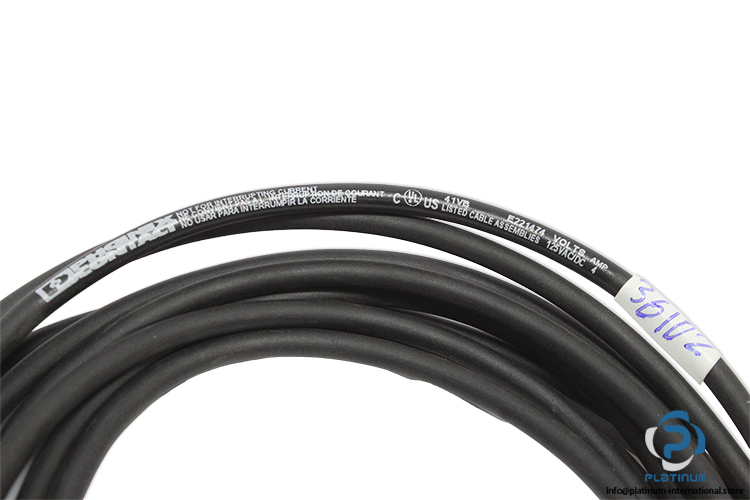

Cable Information41 VB. E221474, 4 A
Outer Sheath MaterialPUR
Contact MaterialCuSn
Contact Surface MaterialNi/Au
Contact Carrier MaterialTPU GF
Material For Screw ConnectionZinc Die-Cast, Nickel-Plated
Nominal Voltage (UN)48 V AC / 60 V DC
Nominal Current (IN)4 A
Nominal Voltage (Cable)300 V
Test Voltage3000 V
Insulation Resistance‰¥ 100 Mohm
Insertion/Withdrawal Cycles‰¥ 100
Smallest Bending Radius (Fixed Installation)18 mm
Smallest Bending Radius (Movable Installation)36 mm
Degree Of ProtectionIP65 / IP67 / IP68
Ambient Temperature (Operation)-25 °C ... 90 °C (Plug / Socket)
Standard DesignationM8 Connector
Standards/SpecificationsIEC 61076-2-104
ConditionNew
Stock KeyJO-004
