Phoenix Contact SAC-5P-M12MSB/2.0-900/M12FSB BUS System Cable
New
In stock6 unitsReady to ship
Bus System Cable
PHOENIX CONTACT SAC-5P-M12MSB/2.0-900/M12FSB preassembled INTERBUS data cable, 2 m length, 5-pin M12 connectors, shielded copper transmission, rated 48 V AC / 60 V DC, 4 A.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PHOENIX CONTACT SAC-5P-M12MSB/2.0-900/M12FSB Bus System Cable

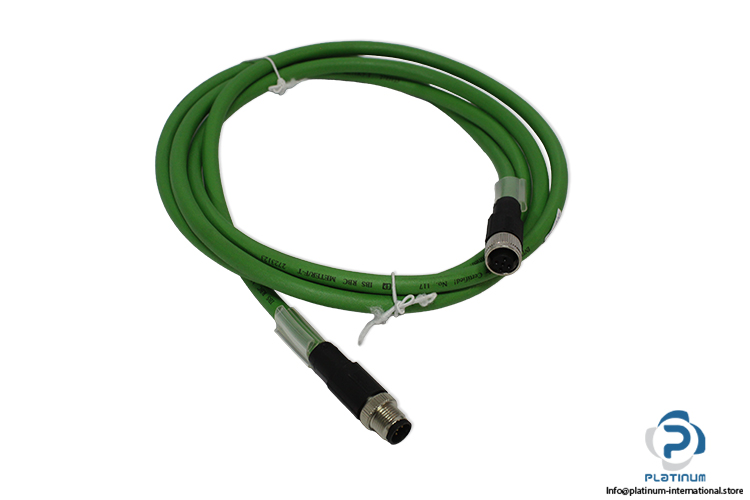

The PHOENIX CONTACT SAC-5P-M12MSB/2.0-900/M12FSB is a preassembled INTERBUS data cable designed for reliable industrial bus communication. With B-coded M12 connectors and shielded copper transmission medium, this cable ensures stable signal transmission at high data rates in demanding environments.
Manufacturer: PHOENIX CONTACT
Type: Bus System Cable
Model: SAC-5P-M12MSB/2.0-900/M12FSB

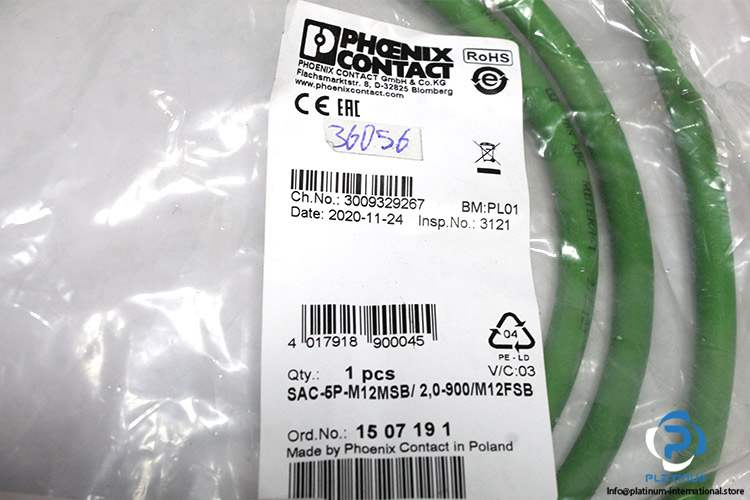

Order No.: 1507191
Ch No.: 3009329267
Product Type: Data Cable Preassembled
Application: Standard
Sensor Type: INTERBUS
Electrical Data:
Mechanical & Material Data:
Cable Specifications:
| Cable Length | 2 m |

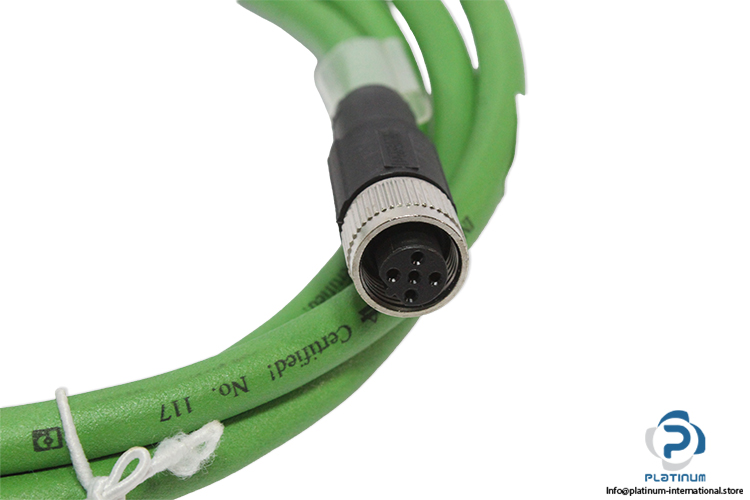

| Connector 1 | 5-Pins Female, M12 |

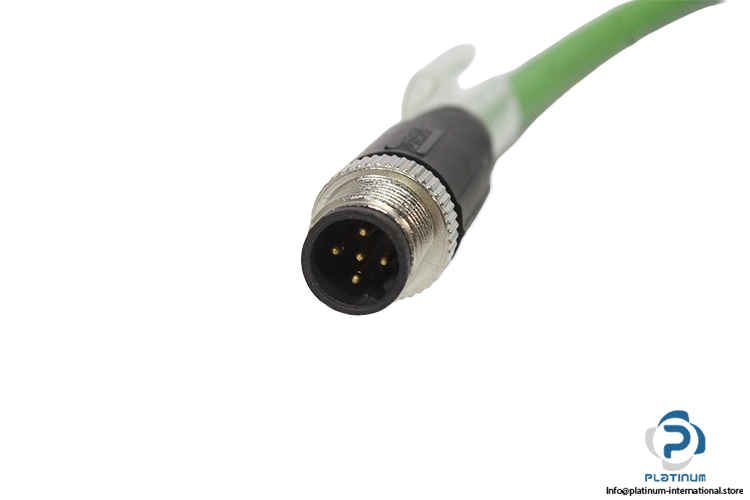

| Connector 2 | 5-Pins Male, M12 |
| Number Of Positions | 5 |
| No. Of Cable Outlets | 1 |
| Shielded | Yes |
| Coding | B |
| Interfaces Bus System | INTERBUS |
| Signal Type/Category | INTERBUS, 16 Mbps |
| Transmission Medium | Copper |
| Nominal Voltage (UN) | 48 V AC, 60 V DC |
| Nominal Current (IN) | 4 A |
| Insulation Resistance | ‰¥ 100 MΩ |
| Overvoltage Category | II |
| Degree Of Pollution | 3 |
| Insertion/Withdrawal Cycles | ‰¥ 100 |
| Flammability Rating | UL 94 V0 |
| Seal Material | NBR |
| Material Of Grip Body | TPU, Hardly Inflammable, Self-Extinguishing |
| Contact Material | CuSn |
| Contact Surface Material | Ni/Au |
| Cable Type | INTERBUS [900] |
| Conductor Structure | 3 x 2 x 0.22 mm² |
| Conductor Cross Section | 3 x 2 x 0.22 mm² |
| Conductor Structure Signal Line | 32 x 0.10 mm |
| AWG Signal Line | 24 |
| Signal Speed | 0.66 c |
| External Cable Diameter | 8.00 mm |
| Ambient Temperature (Operation) | -25 °C ... 90 °C |
