Phoenix Contact SACC-M12FSB-5CON-PG9-SH-AU Connector
New
In stock55 unitsReady to ship
M12 Industrial Connector
PHOENIX CONTACT SACC-M12FSB-5CON-PG9-SH-AU shielded 5-position M12 connector with B-coding, Pg9 screw connection, IP67 protection, and gold-plated contacts for PROFIBUS and INTERBUS applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

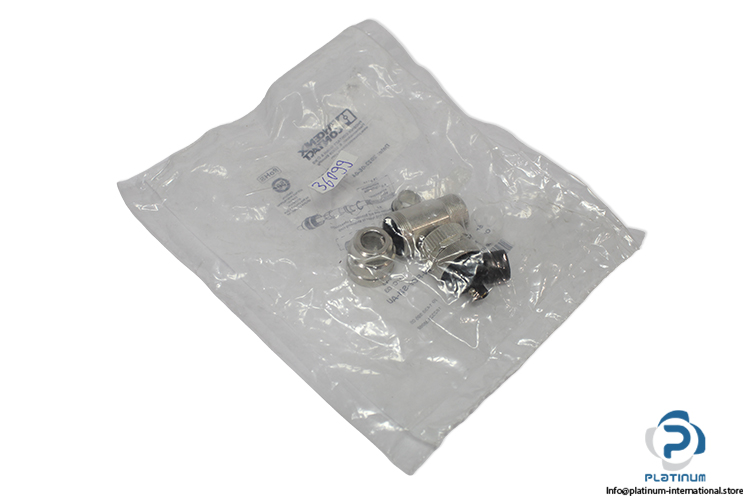

PHOENIX CONTACT SACC-M12FSB-5CON-PG9-SH-AU Connector
The PHOENIX CONTACT SACC-M12FSB-5CON-PG9-SH-AU is a shielded M12 connector designed for reliable industrial communication systems, including PROFIBUS and INTERBUS applications. It features durable construction, gold-plated contacts, and IP67 protection for secure operation in demanding environments.
Manufacturer: PHOENIX CONTACT
Type: Connector

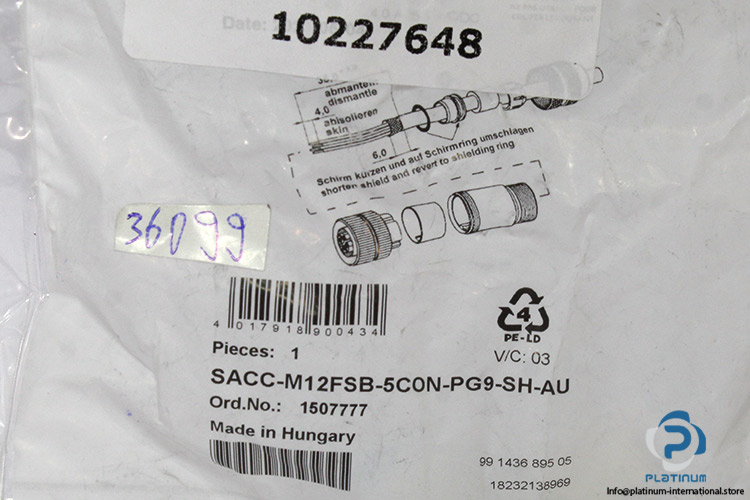

Model: SACC-M12FSB-5CON-PG9-SH-AU
Part No.: 1507777
Code: 10227648
Application Data:
Insulation Characteristics:
External Dimensions:
Housing:
Electrical Data:
Connection 1:
| Sensor Type | PROFIBUS |
| Number Of Positions | 5 |
| Number Of Cable Outlets | 1 |
| Shielded | Yes |
| Coding | B |
| Cable Outlet | Straight |
| Pg Screw Connection | Pg9 |
| Overvoltage Category | II |
| Degree Of Pollution | 3 |
| Width | 20 mm |
| Height | 20 mm |
| Length | 56 mm |
| Outside Diameter | 6.5 mm ... 8.5 mm |
| Diameter Housing | 20 mm |
| Contact Material | CuZn |
| Contact Surface Material | Au |
| Rated Surge Voltage | 1.5 kV |
| Contact Resistance | ‰¤ 3 mΩ |
| Insulation Resistance | ‰¥ 100 MΩ |
| Nominal Voltage (UN) | 48 V AC / 60 V DC |
| Nominal Current (IN) | 4 A |
| Head Design | Socket |
| Head Cable Outlet | Straight |
| Head Thread Type | M12 |
| Coding | B |
| Signal Type/Category | PROFIBUS / INTERBUS |
| Stripping Length Of Individual Wire | 5 mm |
| Degree Of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Plug / Socket) |
