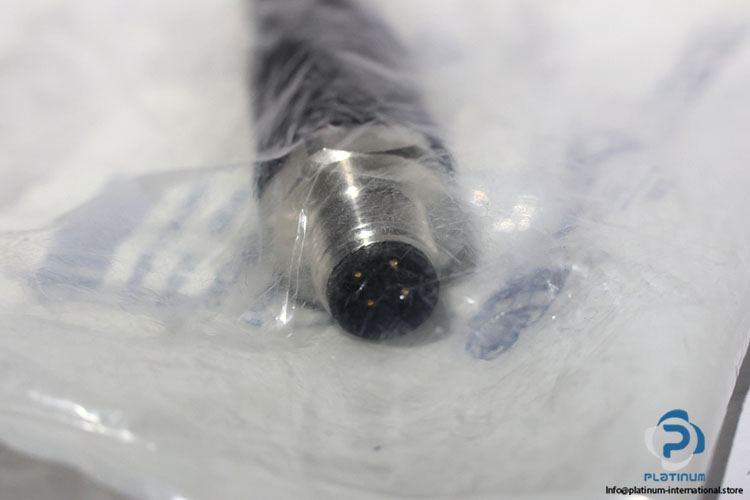

Phoenix Contact SACC-M12MS-4CON-PG7-VA Connector
New
In stock1 unitReady to ship
Connector PHOENIX CONTACT straight M12 4-pin connector with 250 V AC/DC rating, 4 A nominal current, screw connection and Pg7 cable outlet.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1553161 |
| Nominal voltage | 250 V AC/DC |
| Nominal current | 4 A |
| Rated surge voltage | 2.5 Kv |
| Connector | Plug, straight, M12,4pins |
| No. of positions | 4 |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Pg screw connection | Pg7 |
| Seal material | NBR |
| Material of grip body | PA |
| Connection method | Screw connection |
| Ambient temperature | -40 °C ... 85 °C |
| Diameter housing | 20 mm |
| Outside diameter | 4 mm ... 6 mm |
| Dimensions | 20 x 20 x 60 mm |
| Certificate | EAC, cURus, ROHS |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098386 |
| Weight | 0,02 |
