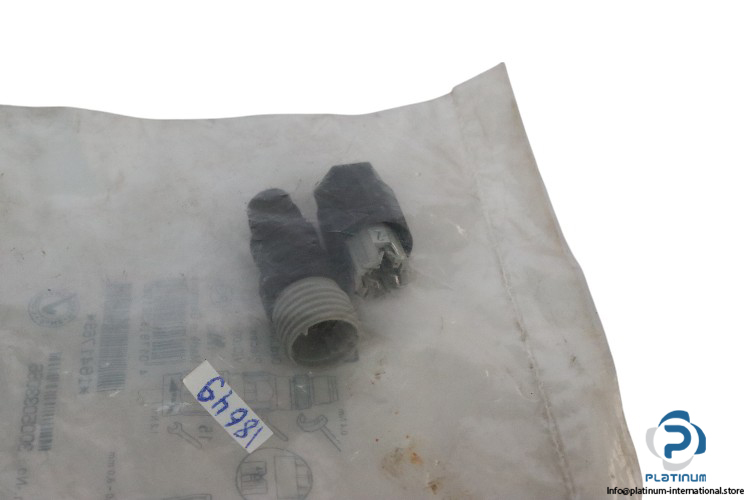

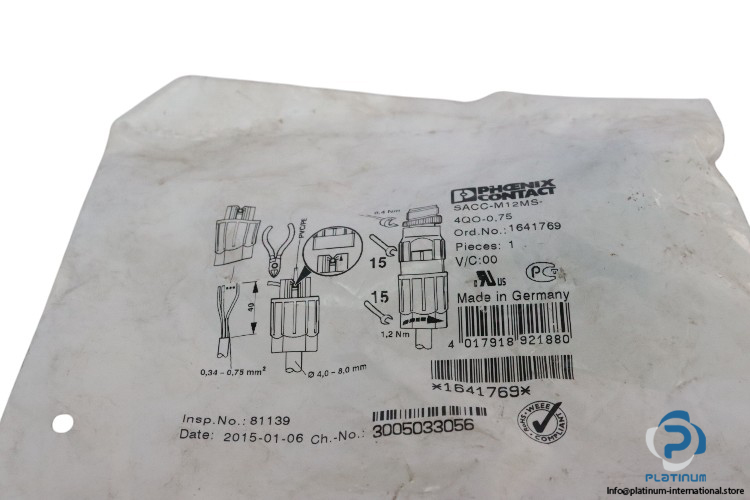

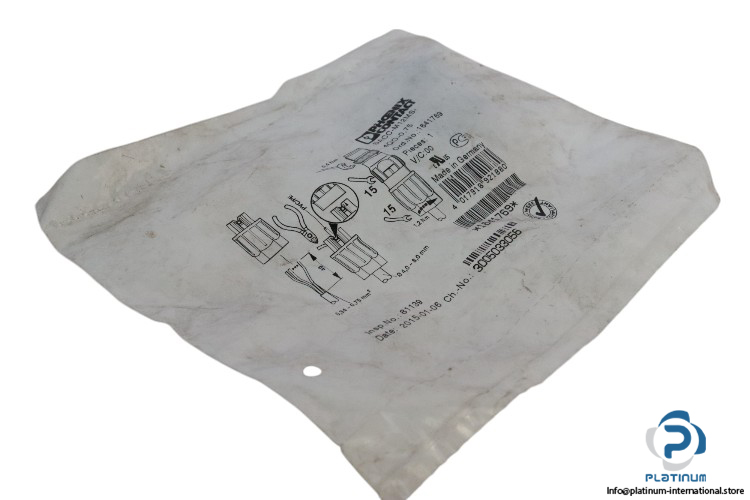

Phoenix Contact SACC-M12MS-4QO-0,75 Connector
The Phoenix Contact SACC-M12MS-4QO-0,75 Connector is designed for industrial use with a nominal voltage of 250 V AC/DC and a rated current of 4 A. It offers a high degree of protection (IP65/IP67) and features insulation displacement connection.
Phoenix Contact SACC-M12MS-4QO-0,75 Connector
The Phoenix Contact SACC-M12MS-4QO-0,75 Connector is a high-quality M12 connector designed for use in industrial applications. It features a nominal voltage of 250 V AC/DC and can handle a rated current of up to 4 A. The connector is equipped with insulation displacement connection for quick and secure installation. It provides a reliable electrical connection with a high degree of protection (IP65/IP67) and is designed for use in harsh environments.
Features:
- Nominal voltage (UN): 250 V AC/DC
- Nominal current (IN): 4 A
- Rated surge voltage: 4 kV
- Contact resistance: 5 mΩ
- Insulation resistance: 100 MΩ
- Head design: Plug
- Head cable outlet: Straight
- Head thread type: M12
- Connection method: Insulation displacement connection
- Connection cross section: 0.34 mm² … 0.75 mm²
- Tightening torque: 0.4 Nm (M12 knurl), 1.5 Nm (Pressure nut)
- Degree of pollution: 3
- Degree of protection: IP65, IP67
- Ambient temperature (operation): -25 to 80 °C
- Outside diameter: 4 to 8 mm
- Diameter housing: 18.4 mm
- Length: 55 mm
This connector ensures reliable performance and protection, making it ideal for demanding industrial environments that require robust and durable connection solutions.
