Phoenix Contact SACC-M12MSB-5SC SH Connector

In stock36 unitsReady to ship

CONNECTOR

Industrial-grade M12 connector with 5-position interface, IP67 sealing, and wide temperature resistance. Designed for durable and secure electrical connections in automation systems.

Manufacturer
PHOENIX CONTACT
SKU
1085650
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

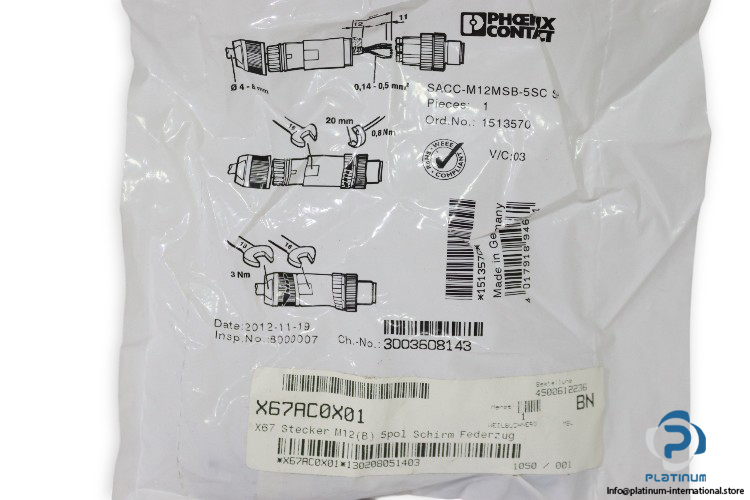

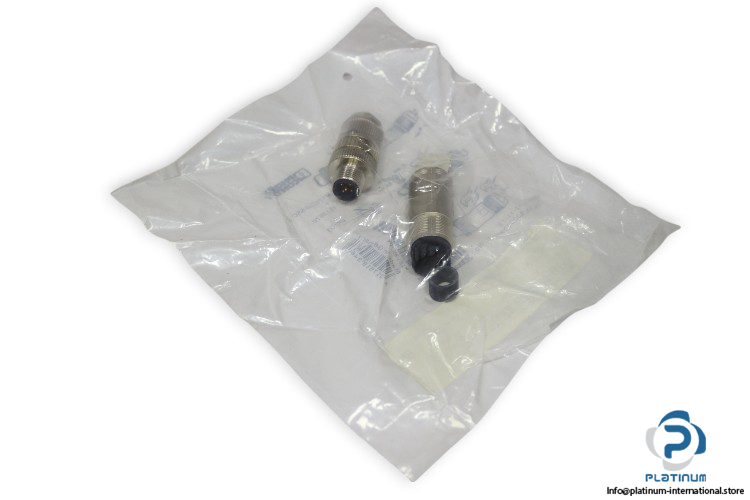

PHOENIX CONTACT SACC-M12MSB-5SC SH CONNECTOR

This high-performance M12 connector from Phoenix Contact is engineered for secure, compact, and reliable signal transmission in harsh industrial environments. Built with a nickel-plated zinc die-cast grip body and NBR sealing, it delivers exceptional protection and durability across a wide temperature range.

Manufacturer: Phoenix Contact

Type: Connector

Model: SACC-M12MSB-5SC SH

Part No.: X67AC0X01

Ord. No.: 1513570

Ch. No.: 3003608143

Insp. No.: 8000007

Number of Positions5
No. of Cable Outlets1
Wrench Size (Union Nut)13 mm
Outside Diameter4 mm to 8 mm
Seal MaterialNBR
Grip Body MaterialZinc die-cast, nickel-plated
Contact MaterialCuSn
Head Thread TypeM12
Connection Cross Section0.14 mm² to 0.5 mm²
Connection Cross Section AWG26 to 20
Stripping Length10 mm
Tightening Torque0.4 Nm
Nominal Voltage60 V DC / 48 V AC
Nominal Current4 A
Degree of ProtectionIP67
Ambient Temperature-40 °C to 85 °C
