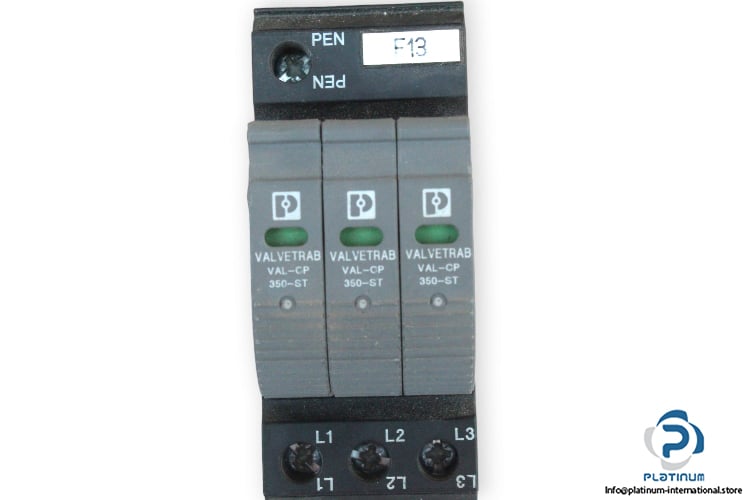

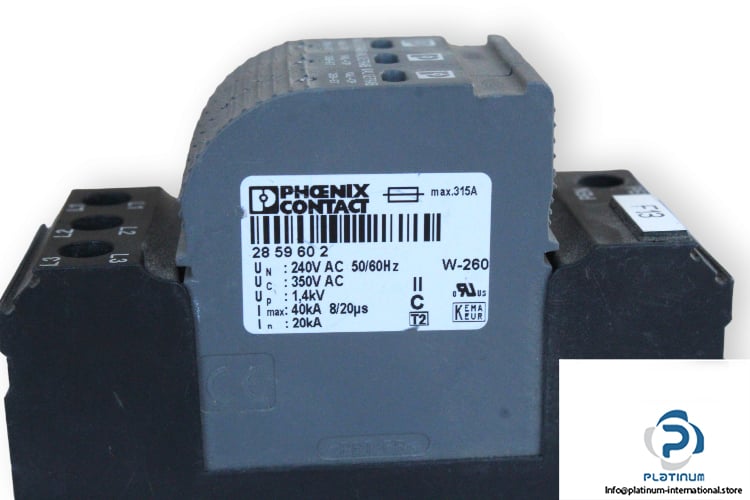

Phoenix Contact VAL-CP-350-ST Arrester Replacement Plug

Manufacturer: Phoenix Contact
Type: Arrester Replacement Plug
Model: VAL-CP-350-ST
Order No: 2859602

Housing material: PBT
Pollution Degree: 2
Degree of Protection: IP20
Operating Temperature: -40 … 80 °C
Nominal Voltage: 240 V AC
Control Circuit Voltage: 350 V AC
Voltage protection level: 1.4 kV
Maximum discharge current: 40 kA 8/20 µs
Nominal Current: 20 kA
Maximum overcurrent protection: 315 A

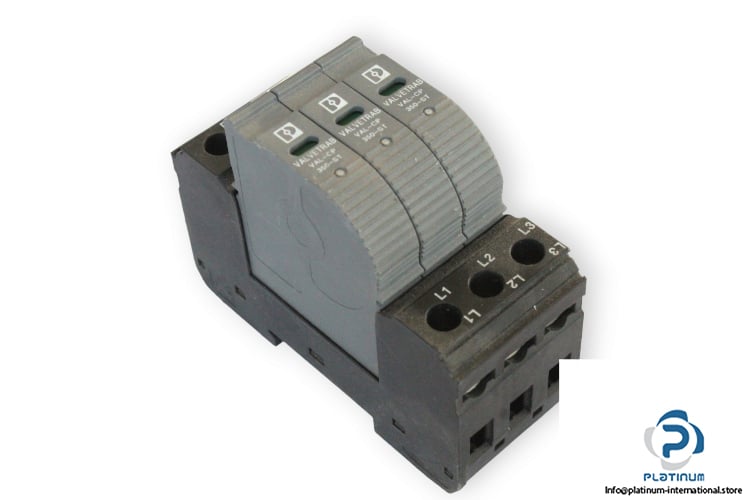

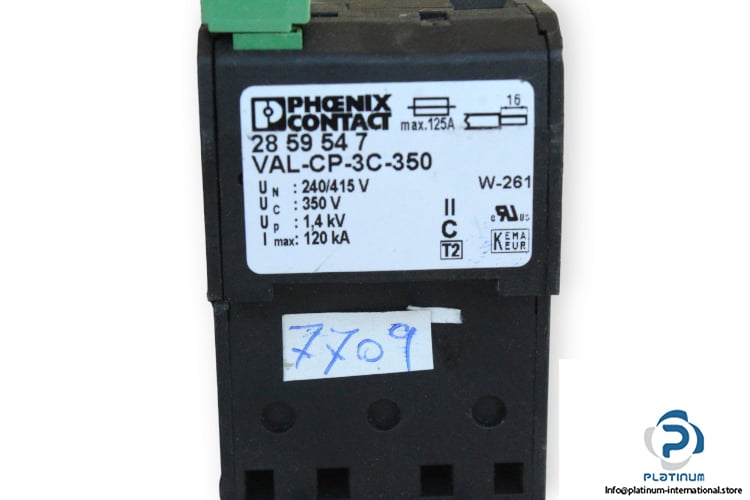

PHOENIX CONTACT VAL-CP-3C-350 SURGE ARRESTER

Manufacturer: Phoenix Contact
Type: Surge Arrester
Model: VAL-CP-3C-350
Order No: 2859547

Nominal Voltage: 240 … 415 V
Control Circuit Voltage: 350 V
Contact Configuration: 1 Changeover (CO)
Maximum overcurrent protection: 125 A
Voltage protection level: 1.4 kV
Maximum discharge current: 120 kA
Operating Temperature: -40 … 80 °C
Degree of protection: IP20
Dimensions: 37.25 X 98 X 71.5 mm
