Phoenix Contact VAL-MS 320/3+1 Surge Arrester

Name: PHOENIX CONTACT VAL-MS 320/3+1 SURGE ARRESTER
SKU: 1061198
Availability: LimitedAvailability

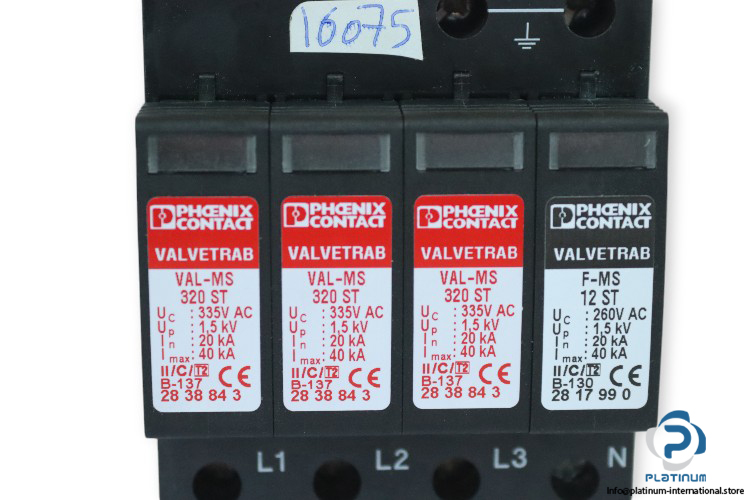

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)

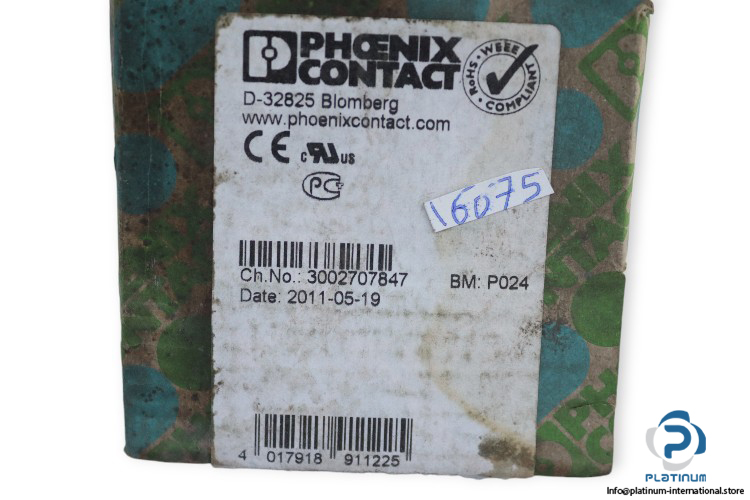

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-1

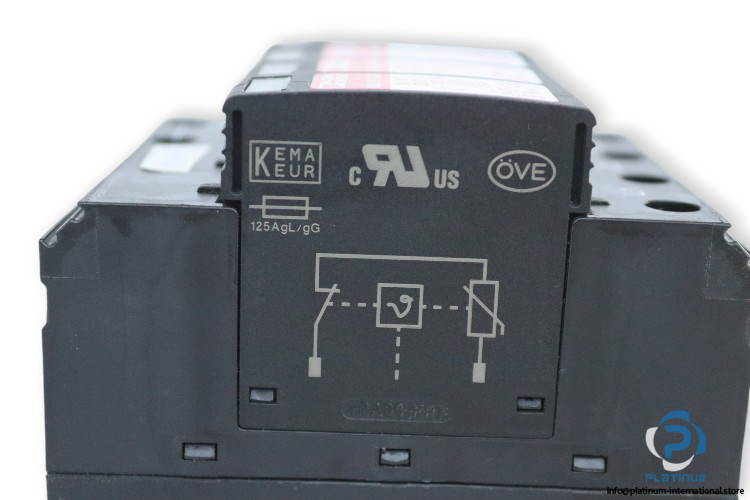

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-2

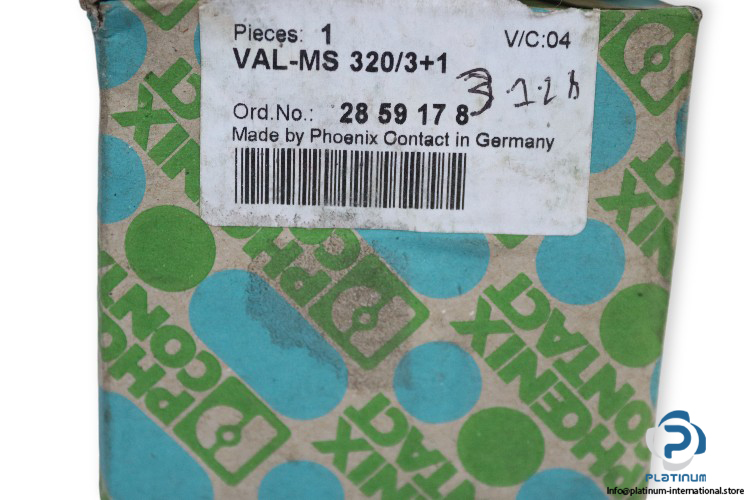

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-3

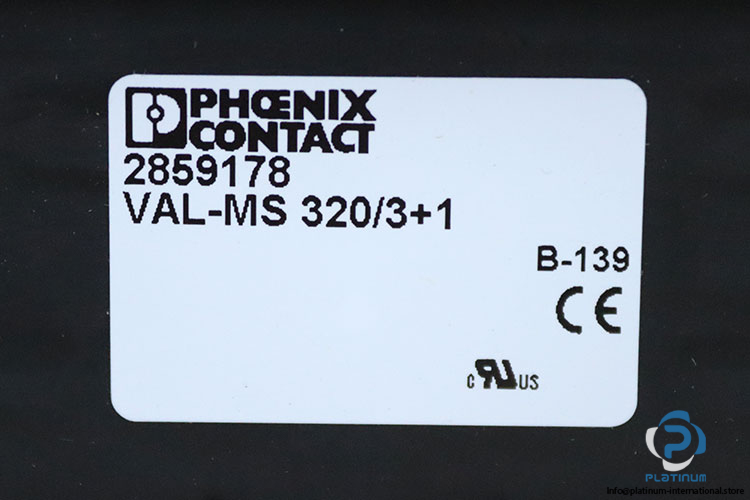

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-4

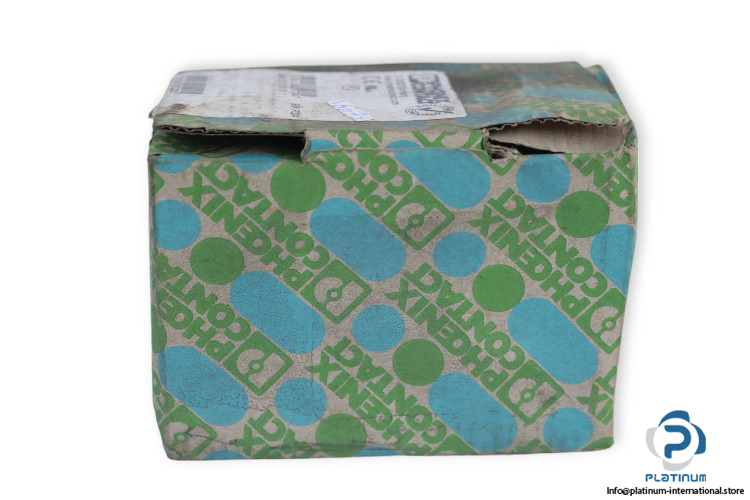

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-5

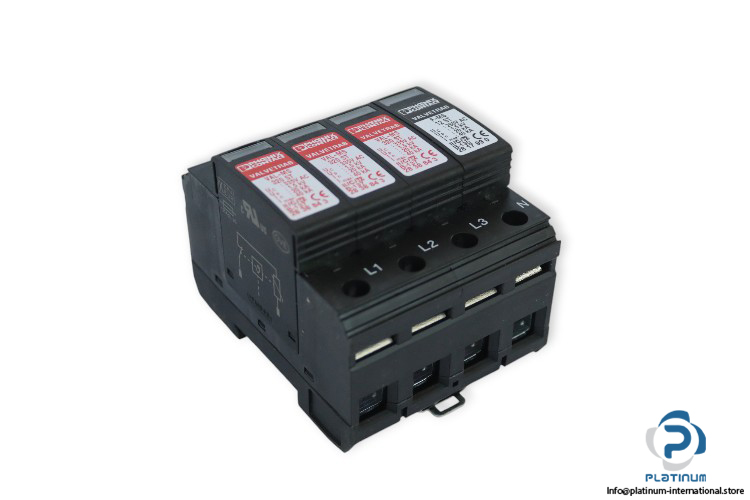

phoenix-contact-VAL-MS-320_3-1-surge-arrester-module-(New)-6

New

In stock1 unitReady to ship

Industrial surge arrester from the VALVETRAB MS family featuring 240/415 V AC nominal voltage, 20 kA nominal discharge current, 40 kA maximum discharge current, and 4-pole protection for electrical distribution systems.

Manufacturer

PHOENIX CONTACT

SKU

1061198

Category

Safety Relays

Condition

New

arrester Contact Module Phoenix Relays Remote Safety Surge Transfer With

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Part No.	2859178
Family	VALVETRAB MS
Nominal Voltage	240 / 415 V AC
Nominal Discharge Current	20 kA
Maximum Discharge Current	40 kA
Frequency	50 … 60 Hz
Poles No.	4
Protection Class	IP20
Temperature	-40 … 80 °C
Dimensions	89.8 x 71 x 65.7 mm
Attachment 1	PHOENIX CONTACT VAL-MS 320 ST SURGE PROTECTION PLUG
Family,PLUG	VALVETRAB MS
Nominal Voltage,PLUG	320 V AC
Continuous Voltage Max.,PLUG	335 V AC
Nominal Discharge Current,PLUG	20 kA
Discharge Current Max.,PLUG	40 kA
Voltage Protection Level Up Max.,PLUG	1.5 kA
Frequency,PLUG	50 … 60 Hz
Connection Mode,PLUG	Pluggable
Material,PLUG	PA 6.6
Protection Class,PLUG	IP20
Temperature,PLUG	-40 … 80 °C
Dimensions,PLUG	52.4 x 17.5 x 55.3 mm
Family,PROTECTION PLUG	VALVETRAB MS
Rated Continuous Operating Voltage,PROTECTION PLUG	260 V AC
Nominal Discharge Current,PROTECTION PLUG	20 kA
Maximum Discharge Current,PROTECTION PLUG	40 kA
Voltage Protection Level Up Max.,PROTECTION PLUG	1.5 kA
Frequency,PROTECTION PLUG	50 … 60 Hz
Mounting Mode,PROTECTION PLUG	Pluggable
Material,PROTECTION PLUG	PA 6.6
Protection Class,PROTECTION PLUG	IP20
Temperature,PROTECTION PLUG	-40 … 80 °C
Dimensions,PROTECTION PLUG	52.4 x 17.5 x 55.3 mm
Condition	New
SKU	1061198
Weight	0,4
