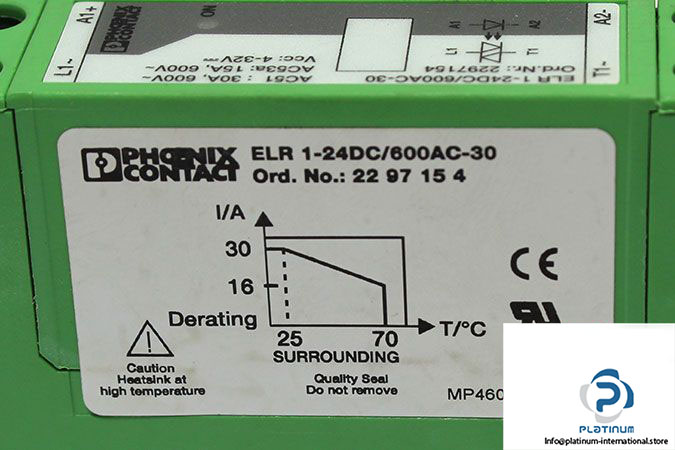

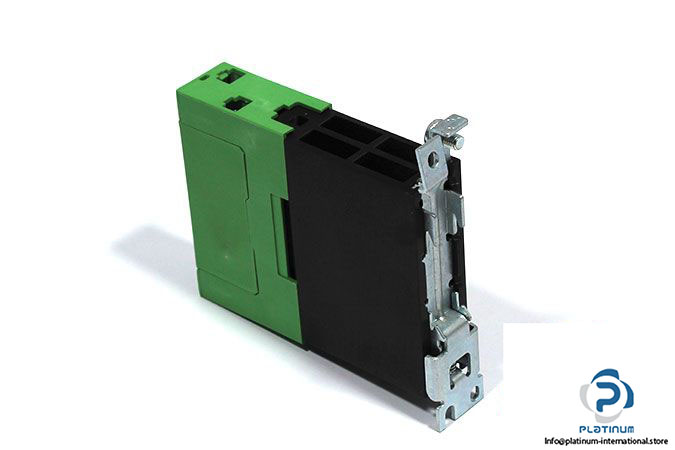

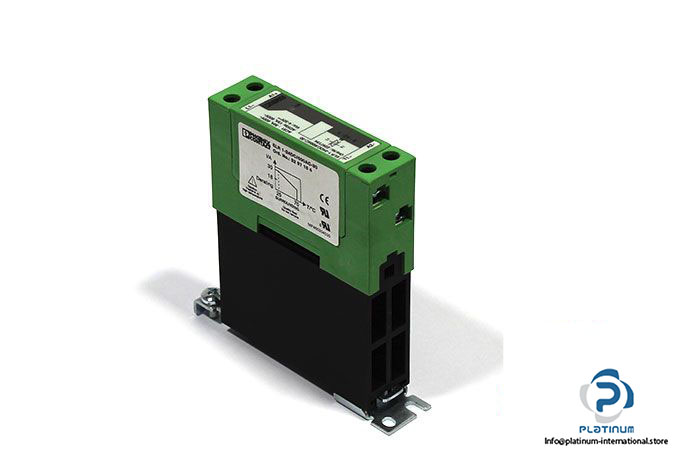

Phoenix Contact ELR 1-24DC/600AC-30 Solid-State Contactor

Name: PHOENIX CONTACT ELR 1-24DC/600AC-30 SOLID-STATE CONTACTOR
SKU: 988442
Availability: LimitedAvailability

phoenix-ELR-1-24DC_600AC-30-solid-state-contactor

phoenix-elr-1-24dc_600ac-30-solid-state-contactor-1

phoenix-elr-1-24dc_600ac-30-solid-state-contactor-2

phoenix-elr-1-24dc_600ac-30-solid-state-contactor-3

New

In stock1 unitReady to ship

Manufacturer

PHOENIX CONTACT

SKU

988442

Category

Solid State Relays

Condition

New

Contact Contactor Electronic Load Phase Phoenix Relay Single Solid solid-state State

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Phoenix Contact

Type: Solid-State Contactor

Model: ELR 1-24DC/600AC-30

Order No: 2297154

Rated Actuating Voltage: 24 VDC

Triggering Voltage Range: 4…32 VDC

Number of Phases: 1

Maximum Power Dissipation for Nominal Condition: 48 W

Rated Actuating Current: 12 mA

Operating Output Voltage Range: 42…660 V AC

Rated Output Operating Current at AC-51: 30 A

Rated Output Operating Current at AC-53a: 15 A

Mains Frequency: 45…65 Hz

Load Current Range: 150 mA … 30 A

Connection Method: Screw Connection

Operating Temperature: -40…100 °C

Dimensions: 103 x 103 x 22.5 mm

Weight: 0.26 kg
