Piab F30-2 Suction CUP

In stock4 unitsReady to ship

19,99$

Suction Cup

The PIAB F30-2 suction cup is made of chloroprene, offering flexibility, 30 mm size, and a wide temperature range of -40 to 110 °C, ideal for smooth and curved surface handling.

Manufacturer
PIAB
SKU
1083841
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

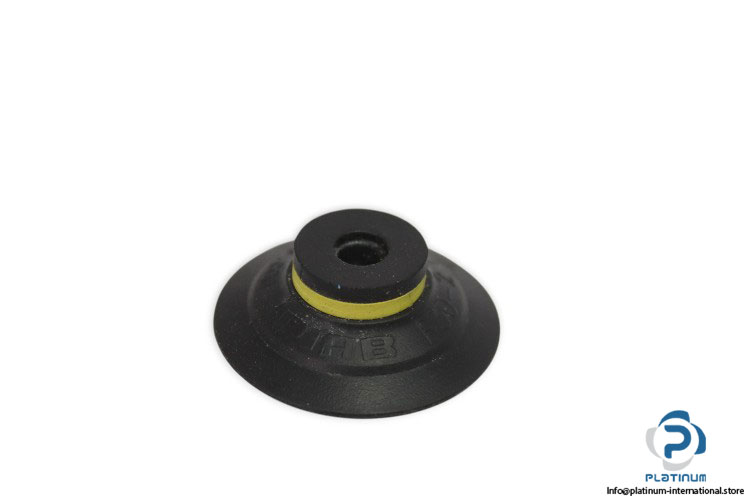

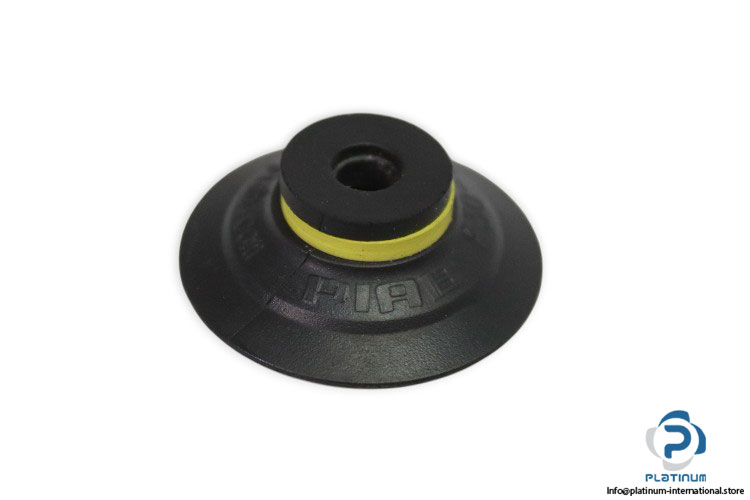

PIAB F30-2 Suction Cup

The PIAB F30-2 Suction Cup is a compact and flexible vacuum component designed for reliable gripping of smooth or slightly curved surfaces. Made from durable chloroprene material, it offers long service life and excellent temperature resistance for industrial automation applications.

Manufacturer: PIAB

Type: Suction Cup

Model: F30-2

MaterialChloroprene (CR)
Suction Cup ModelF
Weight, min.2.2 g
Suction Cup Size (Name, for Filtering)30 mm
Volume2 cm³
Movement, Vertical Max.2.8 mm
Curve Radius, Min.25 mm
Outer Diameter, Min.32 mm
Height10.4 mm
Outer Diameter, Actuated32.6 mm
Temperature Range-40 “ 110 °C
Hardness50 °Shore A
