Pilz 751104 Safety Relay
New
Available on request
150,00$

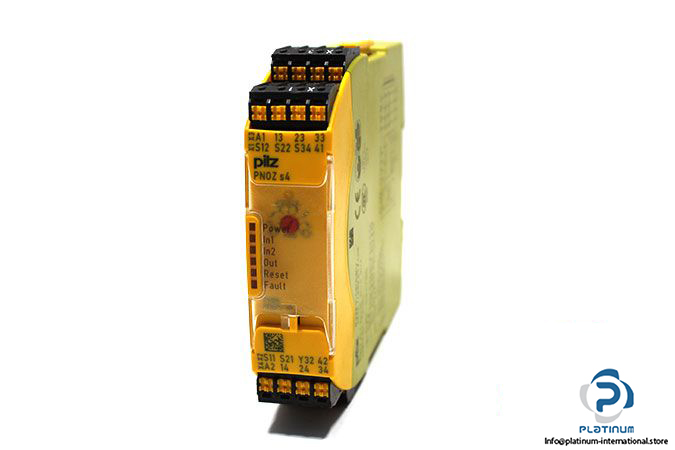

Safety Relay The Pilz PNOZ s4 C 24VDC 3N/O 1N/C Safety Relay is a compact safety controller designed for reliable monitoring of emergency stop circuits, safety gates, and light curtains. Featuring a 24 V DC supply, manual or automatic restart, three normally open safety contacts, one normally closed contact, and spring-loaded terminals, it provides dependable protection for industrial machinery and automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

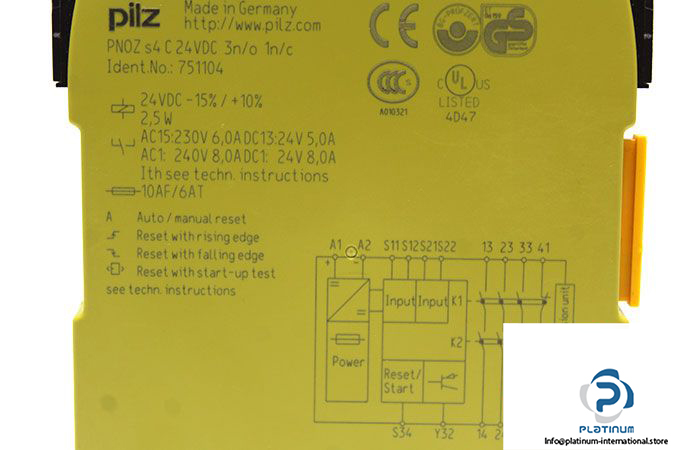

| Part No. | 751 104 |
| PNOZsigma safety relay (standalone), inputs | 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic |
| start, outputs | 3 N/O, 1 N/C, 1 SC, UB 24 V DC, width: 22.5 mm, plug-in spring-loaded terminals, monitoring of E-STOP, safety gates, lightguard. |
| Supply Voltage | 24 V DC, ± 20% |
| Power Consumption | 2.5 W |
| No. Of Inputs | 2 |
| No. Semiconductor Outputs | 1 |
| Connection Terminal | Spring-Loaded Terminal |
| Dimensions | 100 x 22 x 120 mm |
| Condition | New |
| SKU | 982456 |
| Weight | 0,18 |
