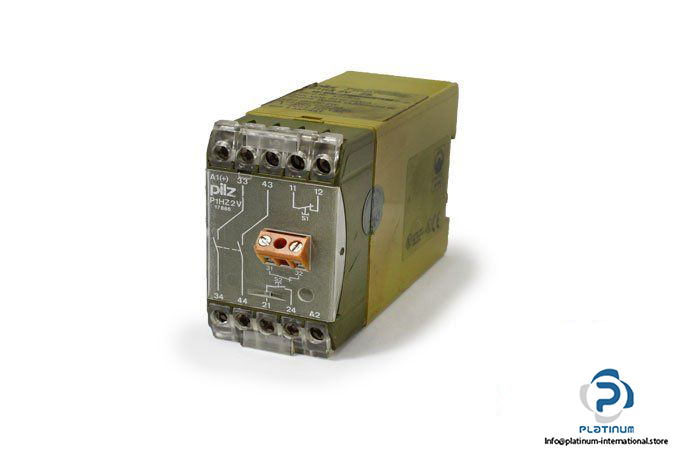

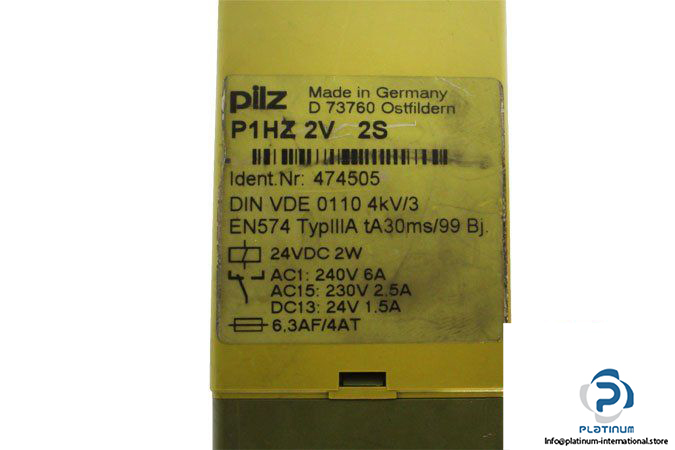

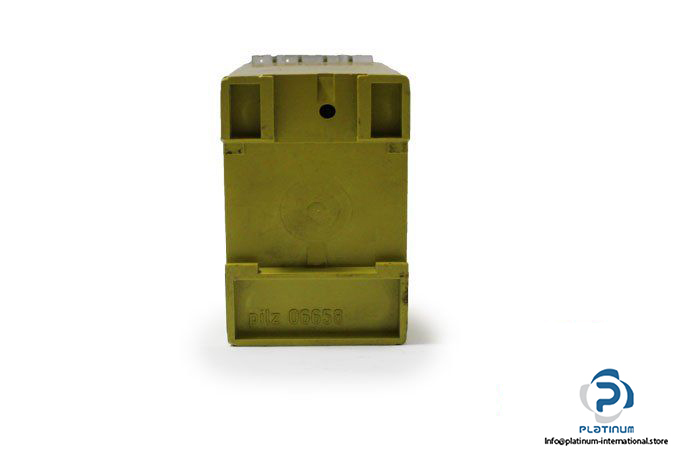

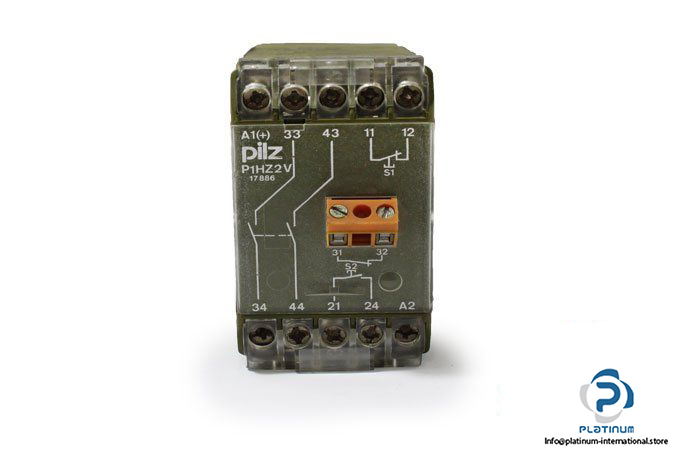

Pilz P1HZ 2V 2S TWO-Hand Relay

Manufacturer: PILZ

Type: TWO-HAND RELAY

Model: P1HZ 2V 2S

Part No.: 474505

Supply Voltage: 24 VDC

Power Consumption: 2 W

Ambient Temperature: -10 … +55 °

Output Contacts: 2 safety contacts (N/O)

Contact Fuse Protection: 6 A quick or 4 A slow

Delay-on Energisation / De-Energisation: 10 ms / Approx. 30 ms

Torque Setting on Connection Terminals: 1.2 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 87 X 45 X 110 mm

Protection Class: IP 20

Weight: 0.28 Kg
