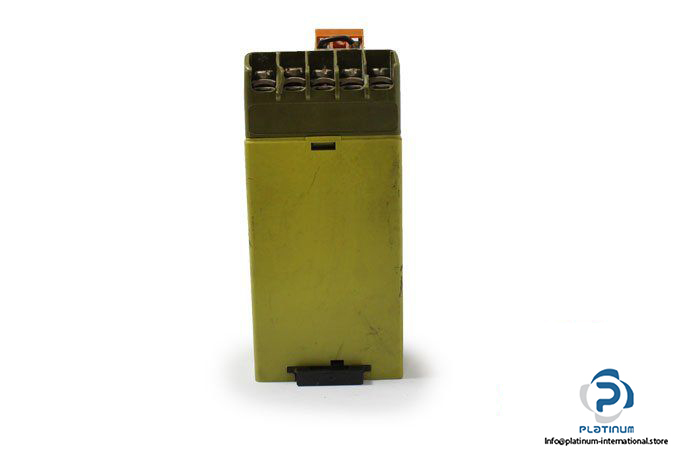

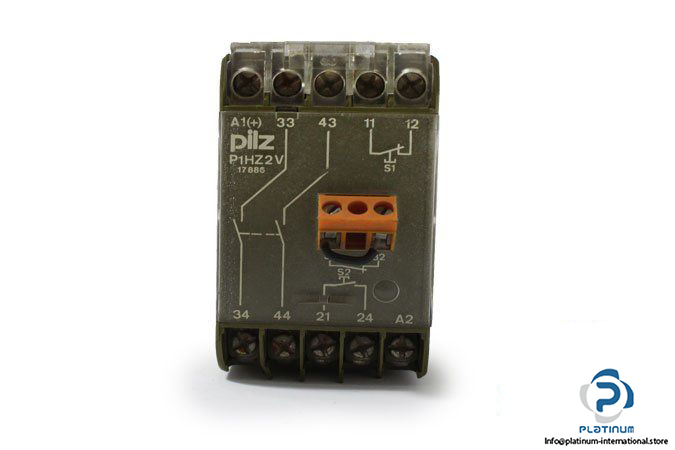

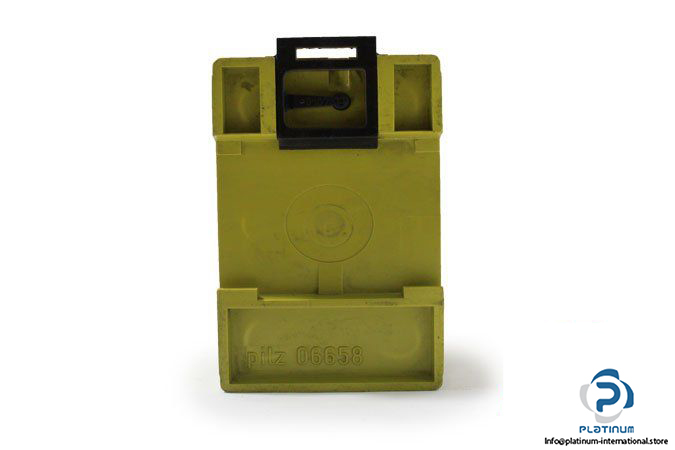

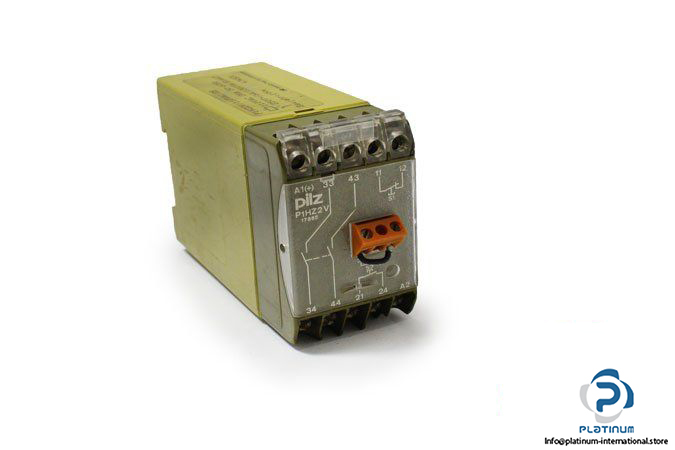

Pilz P1HZ2V/110VAC/2S TWO-Hand Relay

Manufacturer: PILZ

Type: TWO-HAND RELAY

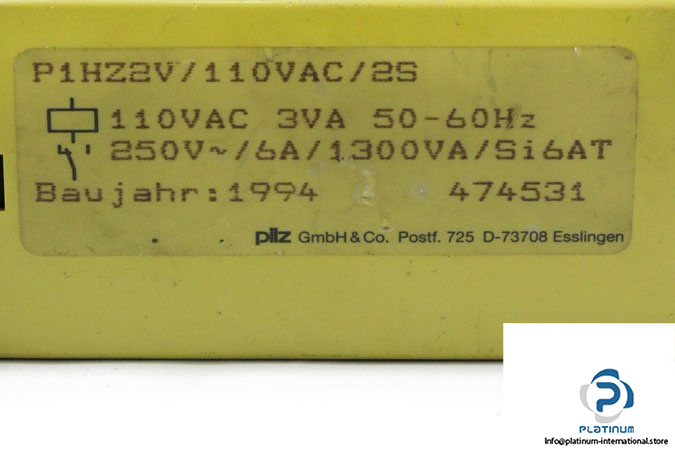

Model: P1HZ2V/110VAC/2S

Part No.: 474531

Supply Voltage: 110 VAC

Power Consumption: 3 VA

Frequency: 50-60 Hz

Output Contacts: 2 safety contacts (N/O)

Contact Fuse Protection: 6 A quick or 4 A slow

Tolerance: 85 … 110 %

Torque Setting on Connection Terminals: 1.2 Nm (screws)

Delay-on Energisation / De-Energisation: 10 ms / Approx. 30 ms

Ambient Temperature: -10 … +55 °C

Dimension: 87 X 45 X 110 mm

Protection Class: IP 20

Weight: 0.38 Kg
