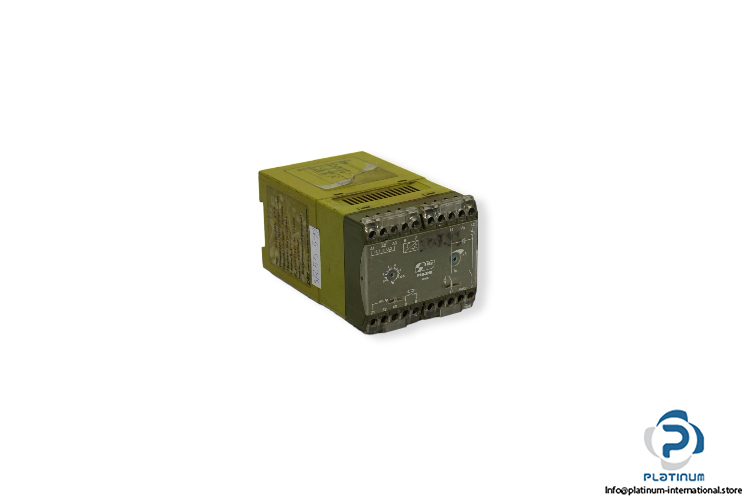

Pilz P4B-3NK 15A Safety Relay
Used
Available on request
66,66$
SAFETY RELAY
PILZ P4B-3NK 15A safety relay with 220/380 V AC supply, 0.2“15 A current range, 0.1“10 sec time range, 3 N/O safety contacts, and 250 V AC / 5 A / 1100 VA ratings.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

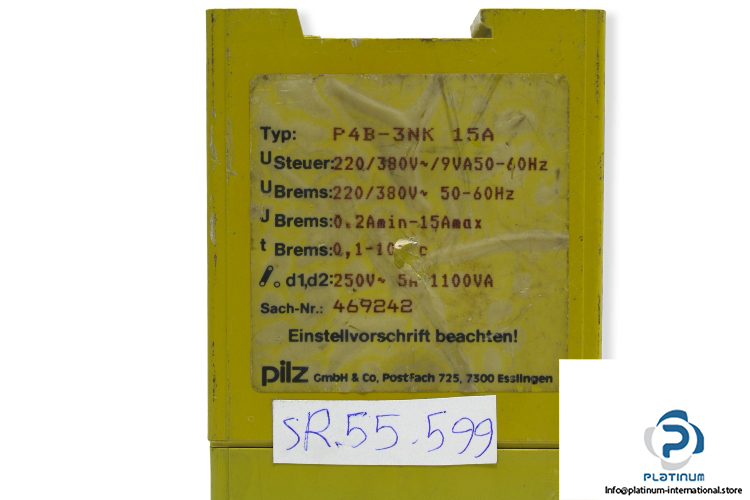

PILZ P4B-3NK 15A Safety Relay
The PILZ P4B-3NK 15A is a high-performance safety relay designed to ensure reliable monitoring and control in safety-critical industrial applications. With multiple safety contacts, adjustable time range, and robust electrical ratings, it provides dependable operation in automation and machinery systems.
Manufacturer: PILZ
Type: Safety Relay
Model: P4B-3NK 15A
Part No.: 469242
Relay Outputs
| Supply Voltage | 220/380 V AC |
| Current Range | 0.2 A (min) / 15 A (max) |
| Time Range | 0.1 / 10 sec |
| Power Consumption | 9 VA |
| Frequency | 50 / 60 Hz |
| Safety Contact | 3 N/O |
| Voltage Safety Contact | 250 V AC |
| Current Safety Contact | 5 A |
| Power Safety Contact | 1100 VA |
