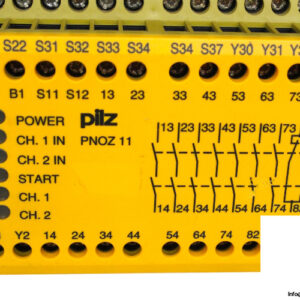

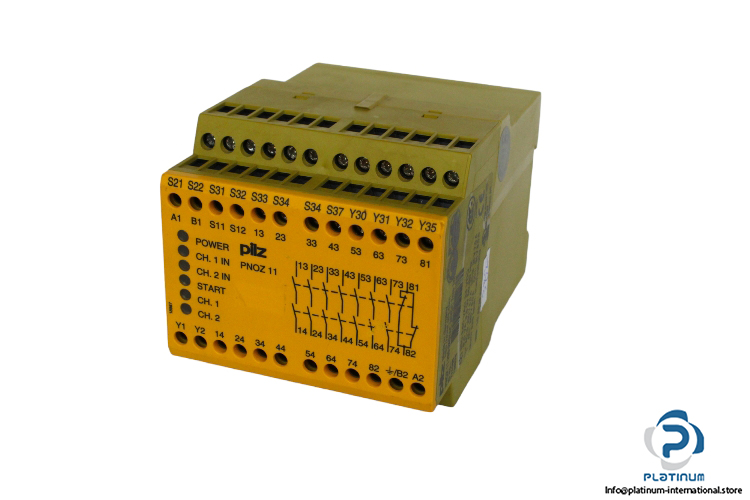

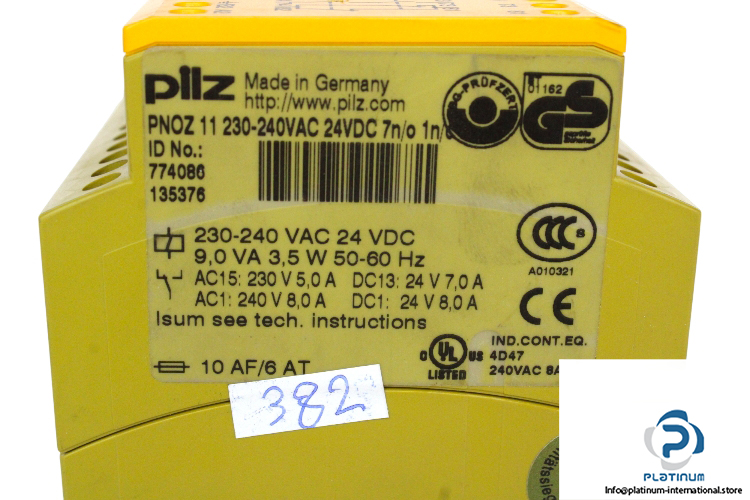

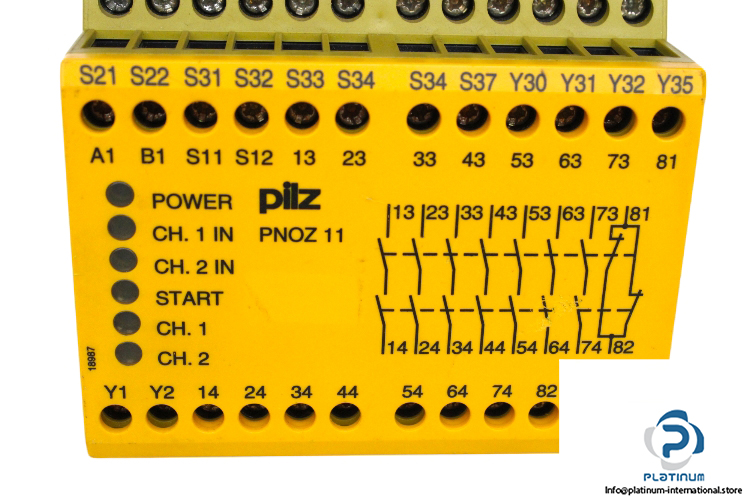

Pilz Pnoz 11 230-240VAC 24VDC 7N/O 1N/C Safety Relay

Manufacturer: PILZ

Type: Safety Relay

Model: PNOZ 11 230-240VAC 24VDC 7N/O 1N/C

ID No.: 774086

MNR: 135376

Supply Voltage:  230 … 240 V AC,24 V DC

Power Consumption: 9 VA, 3.5 W

No. of inputs: 2 channels

No. of semicond. outputs: 2

Outputs: 3 N/O, 1 N/C, 1 SC

Voltage AC15 safety cont.: 230 V, 5 A

Voltage AC1 safety cont.: 240 V, 8 A

Voltage DC1 safety cont.: 24 V, 8 A

Voltage DC13 safety cont.: 24 V, 7 A

Dimension: 87 x 90 x 121 mm
