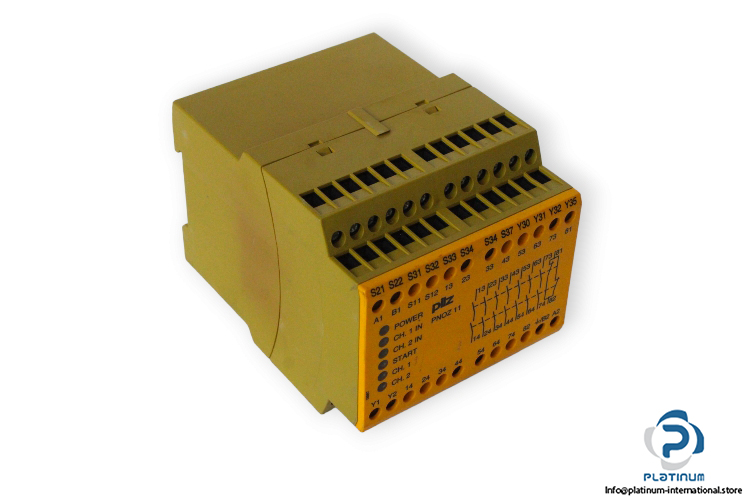

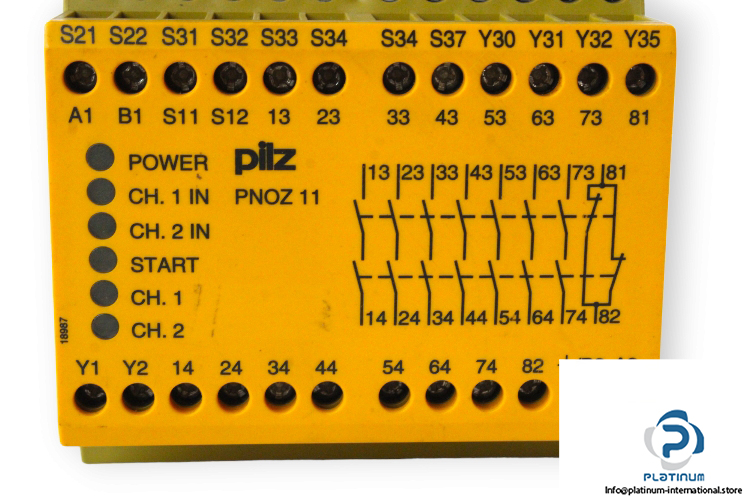

Pilz Pnoz 11 24VAC 24VDC 7N/O 1N/C Safety Relay
Manufacture: Pilz
Type: Safety Relay
Model: PNOZ1124VAC24VDC7NO1NC

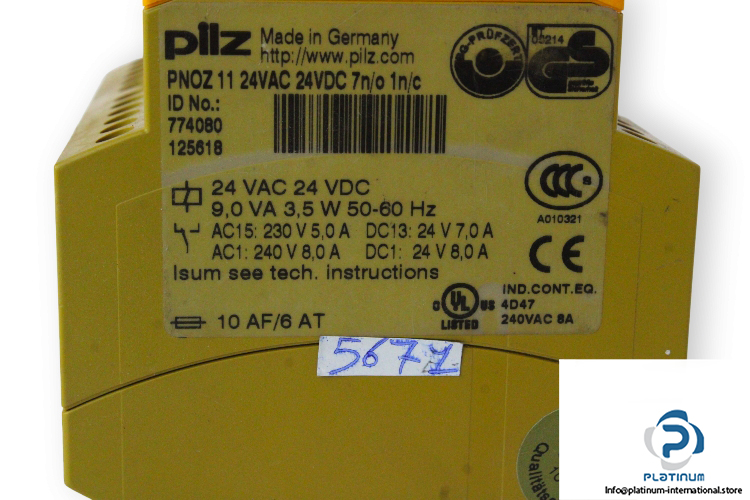

ID No.: 774080 / 125618
Supply voltage: 24 V DC,24 V AC
Power: 3.5 W /9 VA
Frequency: 50 … 60 Hz
No. of output contacts: 7 Normally open contact,1 Normally closed contact
Number of Channels: 1;2
Relay Type: Monitoring
Terminal Type: Screw
Switching capacity: AC15: 230 V AC,5 A/AC1: 240 V AC,8 A/DC13: 24 V DC,7 A/DC1: 24 V DC,8 A
Blow-out fuse, quick Safety contacts: 10 A
Blow-out fuse, slow Safety contacts: 6 A
Ambient temperature: -10 … 55 °C
Protection type: Mounting: IP54, Housing: IP40,Terminals: IP20
Dimensions: 90 x 121 x 87 mm
