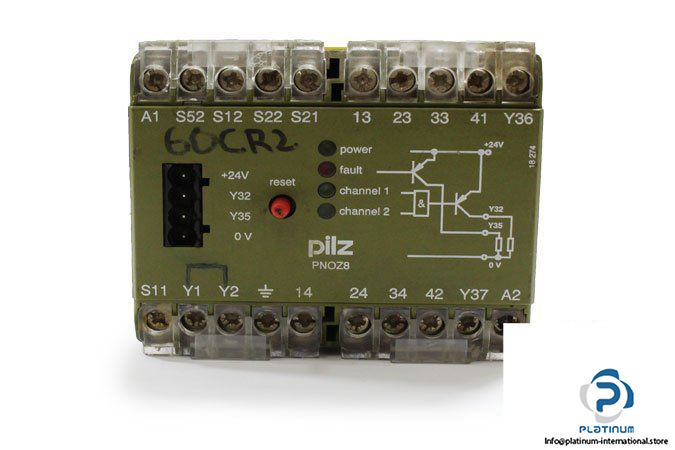

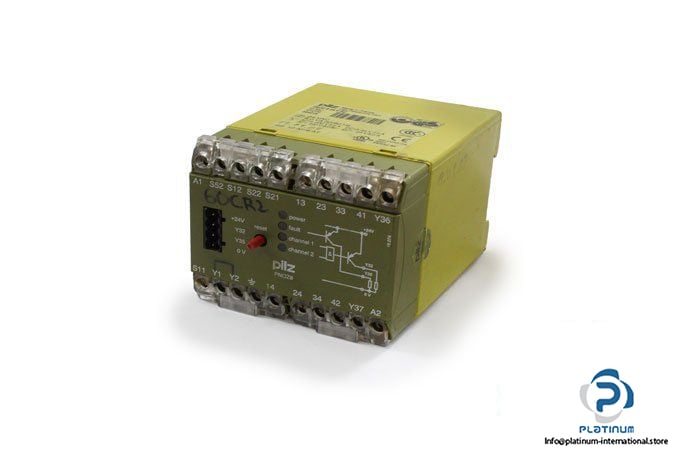

Pilz Pnoz 8 24 V AC Emergency Stop Relay

Manufacturer: PILZ

Type: EMERGENCY STOP RELAY, SAFETY GATE MONITOR

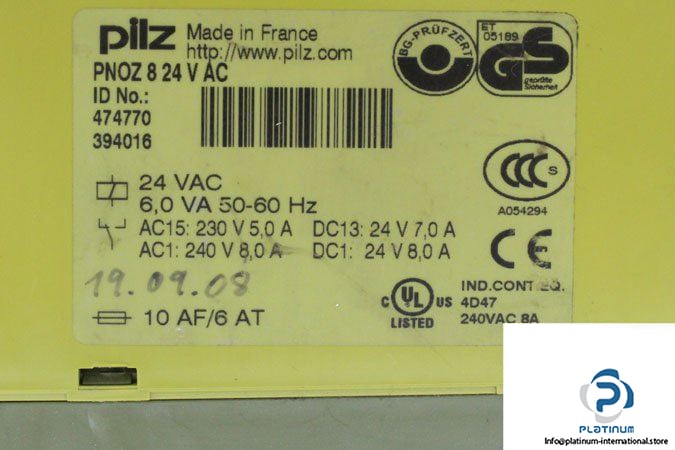

Model: PNOZ 8 24 V AC

Part No.: 474770

Supply Voltage: 24 VAC

Power Consumption: 6 VA

Frequency: 50-60 Hz

Ambient Temperature: -10 … +55 °

Output Contacts: 3 safety contacts (N/O), 1 auxiliary contact (N/C)

Contact Fuse Protection: 10 A quick or 6 A slow

Delay-on Energisation / De-Energisation: Approx. 150 ms / 50 ms

Torque Setting on Connection Terminals: 1.2 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 75 X 90 X 111.5 mm

Protection Class: IP 20

Weight: 0.8 Kg
