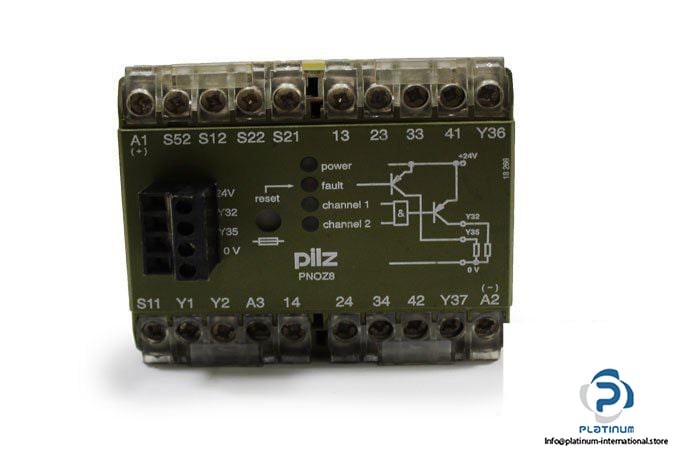

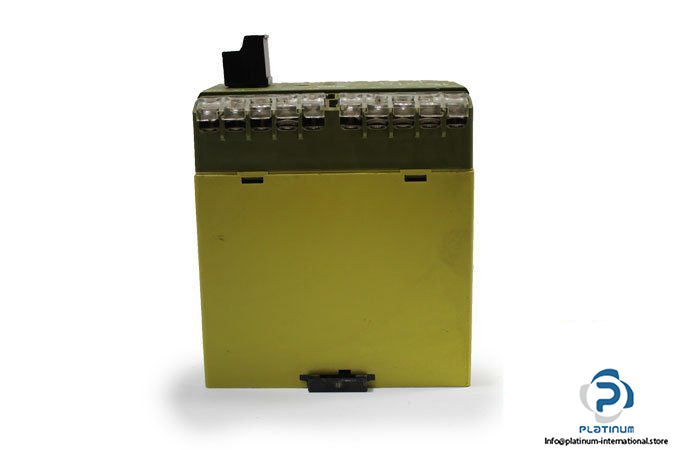

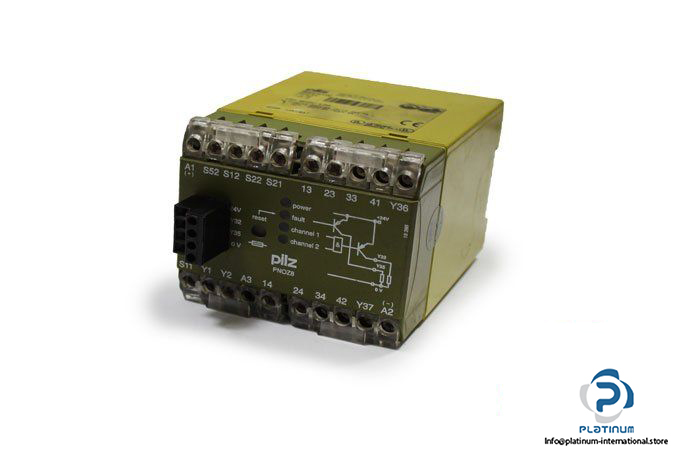

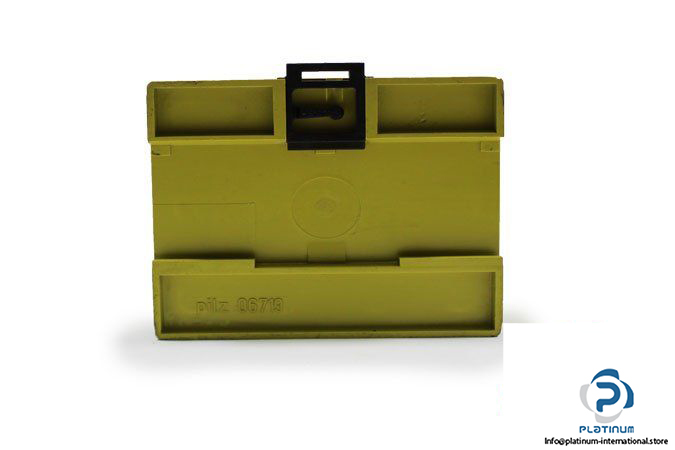

Pilz Pnoz 8 24 V DC Emergency Stop Relay

Manufacturer: PILZ
Type: Emergency Stop Relay, Safety Gate Monitor

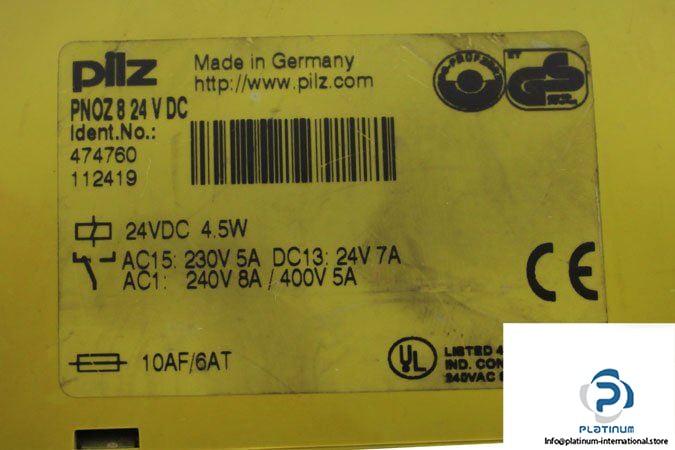

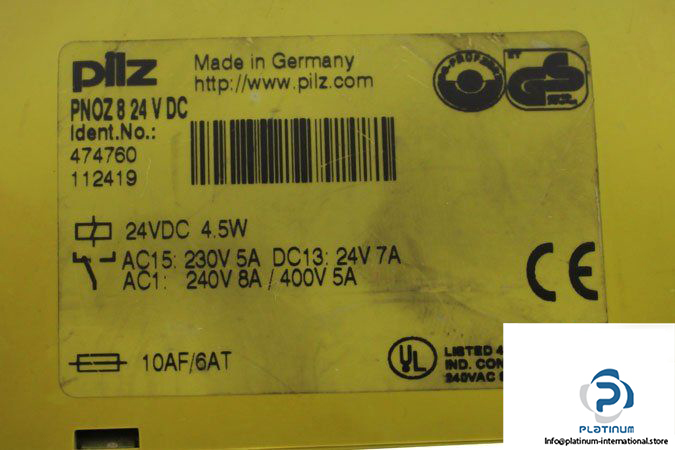

Model: PNOZ 8 24 V DC
Part No.: 474760
ID No.: 112419

Supply Voltage: 24 VDC
Power Consumption: 4.5 W
Ambient Temperature: -10 … +55 °
Output Contacts: 3 safety contacts (N/O), 1 auxiliary contact (N/C)
Contact Fuse Protection: 10 A quick or 6 A slow
Fuse Trip Delay: approx.150 ms
Torque Setting on Connection Terminals: 1.2 Nm
Delay-on Energisation / De-Energisation: Approx. 150 ms / 50 ms
Tolerance: 85 … 110 %
Dimension: 75 x 90 x 111.5 mm
Protection Class: IP 20
