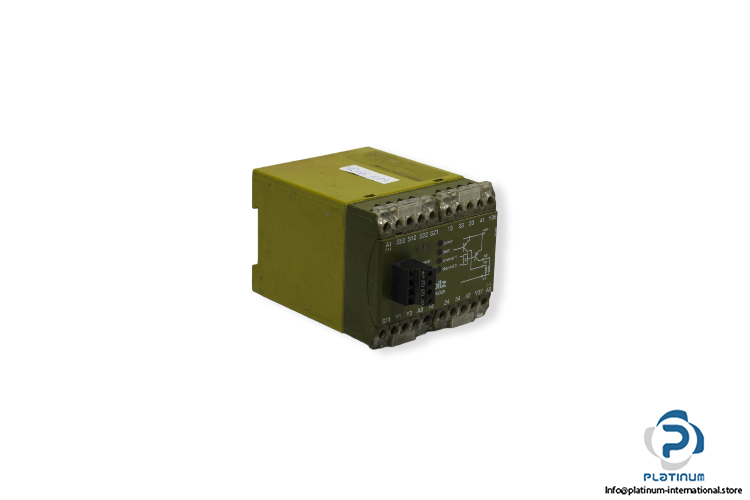

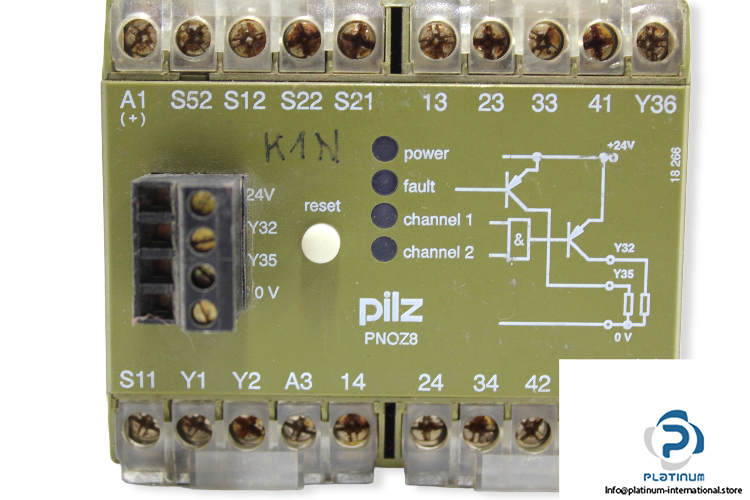

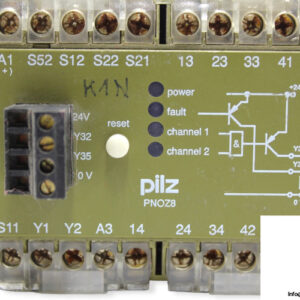

Pilz Pnoz 8 24VDC 3S 1O Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

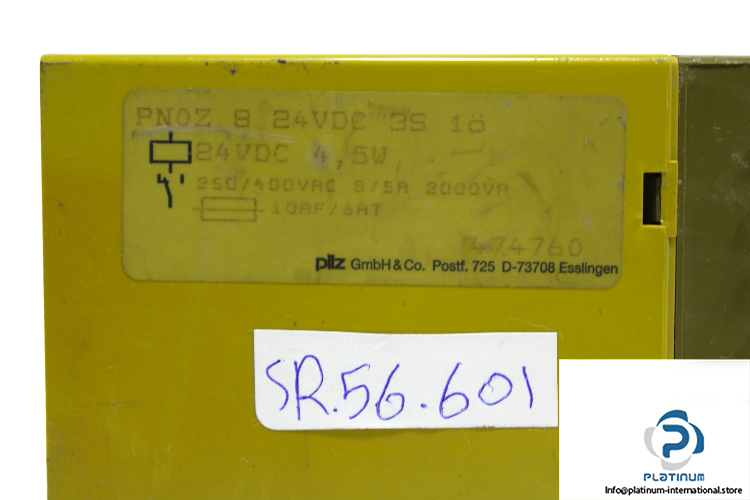

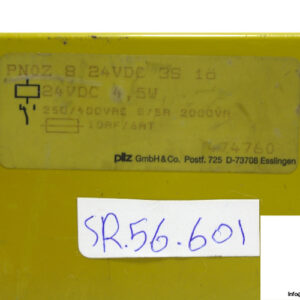

Model: PNOZ 8 24VDC 3S 1O

Part No: 474760

Supply voltage: 24 V DC

Input current: 4.5 A

Contact Fuse Protection: 6 A quick

Number of inputs: 2

Relay outputs:

Contact: 3 safety contacts (N/O), 1 auxiliary contact (N/C)

Voltage safety cont.: 250 / 400 V AC

Current safety cont.: 8 /5 A

Power safety cont.: 2000 VA
