Pilz Pnoz MO1P Configurable Safety System
Used
In stock4 unitsReady to ship
199,99$
The PILZ PNOZ MO1P is a configurable safety system offering flexible configuration options, semiconductor outputs, and excellent protection with IP54/IP20 ratings for industrial environments.
AutomationClassConfigurableControlDelayIndustrialMO1PoutputsPilzPnozPowerProtectionSafetysemiconductorsupplySwitch-onSystemtolerancevoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

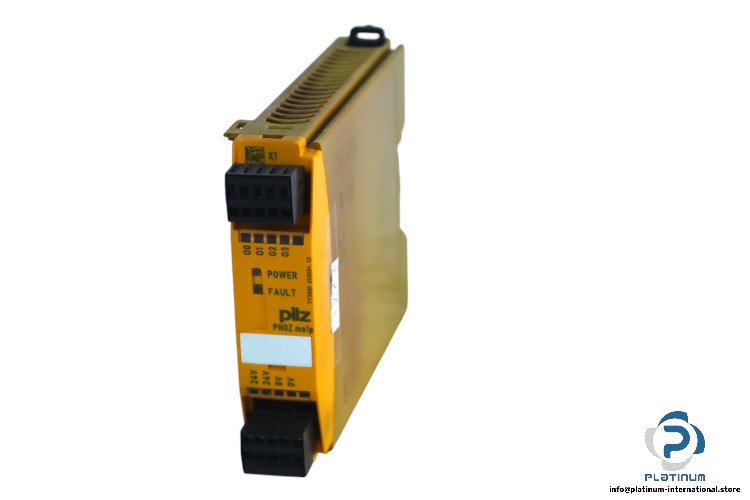

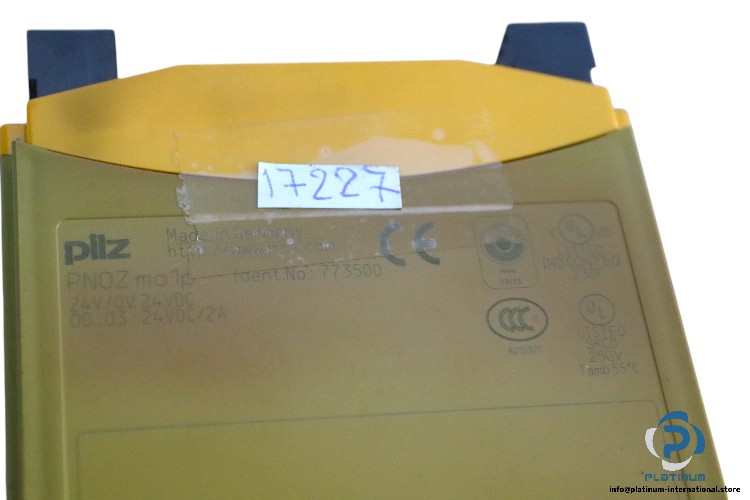

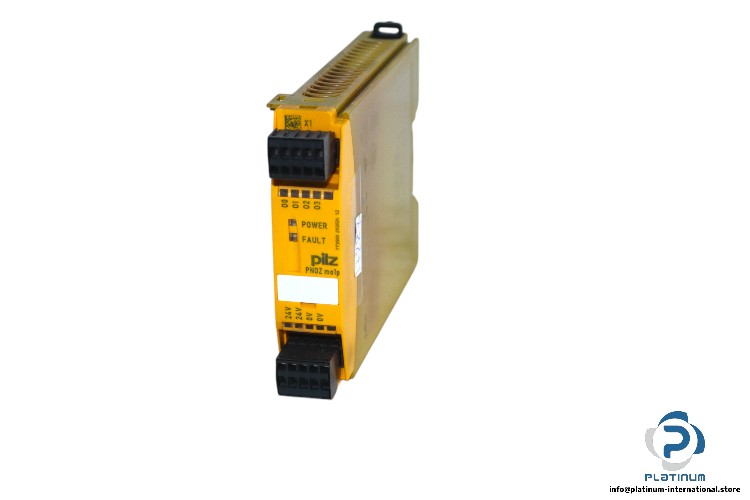

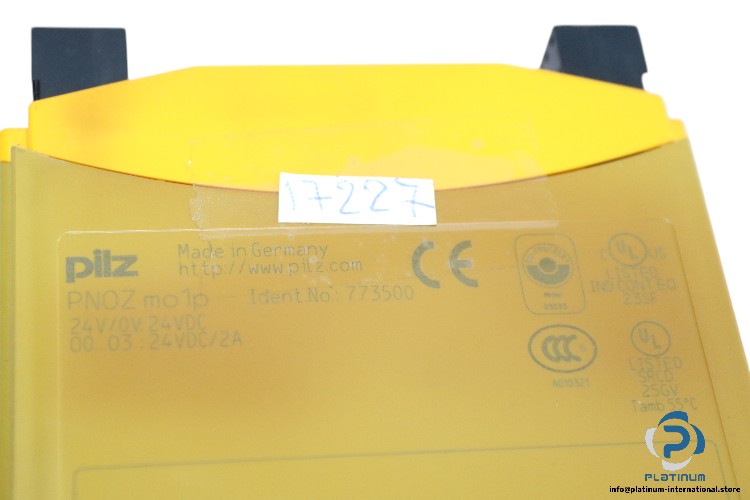

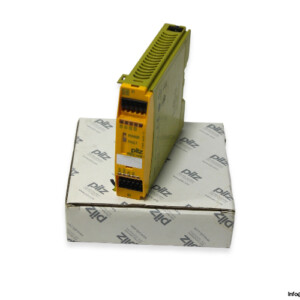

PILZ Configurable Safety System – PNOZ MO1P
The PILZ PNOZ MO1P is a configurable safety system designed to meet high safety standards with flexible configuration options. Ideal for industrial applications, it provides reliable output control and protection features, including semiconductor outputs and various protection classes.
- Manufacturer: PILZ
- Type: Configurable Safety System
- Model: PNOZ MO1P
- Part No.: 773500
Electrical Information:
- Supply Voltage (SC outputs): 24 V DC
- Voltage Tolerance (SC outputs): -15 / +20 %
- External Power Supply Output: 192.0 W
- Supply Voltage (Module Supply): 5.0 V DC
- Voltage Tolerance (Module Supply): -2 / +2 %
- Power Consumption: 2.5 W
Output Information:
- Number of Semiconductor Outputs: 4
- Switching Capability: 24 V, 2.0 A, 48 W
- Switch-On Delay: 5.00 s
Physical and Environmental Information:
- Degree of Protection: Mounting IP54, Housing IP20, Terminal IP20
- Ambient Temperature: 0 – 60 °C
- Dimensions: 94 x 22.5 x 121 mm
