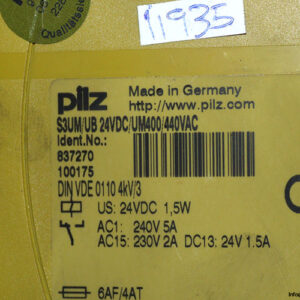

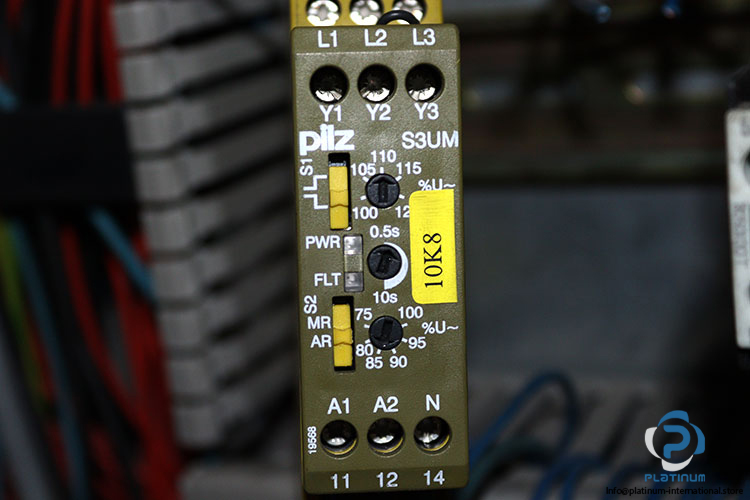

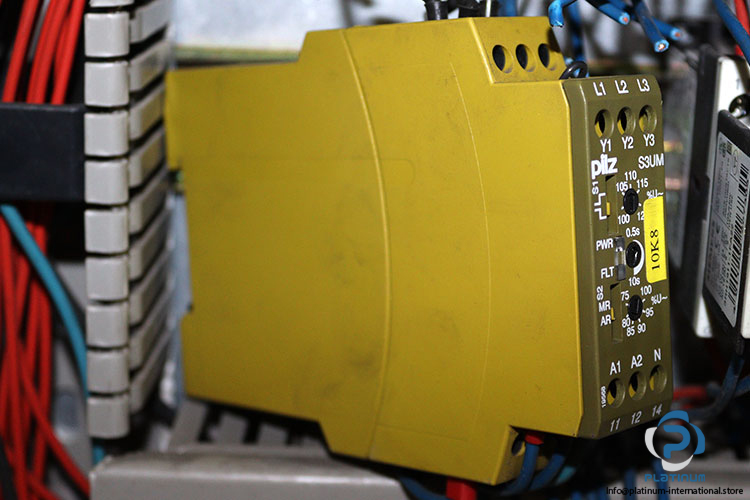

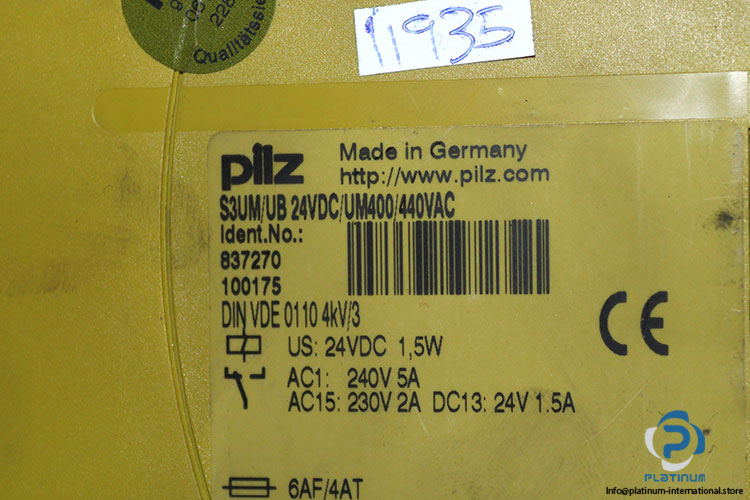

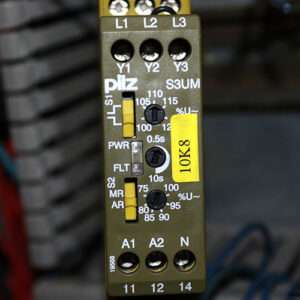

Pilz Pnoz S3UM/UB 24VDC/UM400/440VAC Voltage Monitoring Relay

Manufacturer: PILZ
Type: Voltage Monitoring Relay
Model: S3UM/UB 24VDC/UM400/440VAC
Part No.: 837270 / 100175

Used for: Monitoring Overvoltage, Undervoltage Values, and The Phase Sequence In 3-Phase Supplies
Measuring Voltage: 400 … 440 V AC
Rated Supply Voltage: 24 V DC
Rated Current: 6 / 4 A
Power Consumption: 1.5 W
Frequency: 50 … 400 Hz
Contact: 1 Normally Closed (NC)
Rated Contact Voltage:
AC1: 240 V
AC15: 230 V
DC13: 24 V
Rated Contact Current:
AC1 240 V: 5 A
AC15 230 V: 2 A
DC13 24 V: 1.5 A
Housing Material: ABS UL 94 V0
Protection Class: IP40
Ambient Temperature: -15 … 55 °C
Dimensions (H x W x D): 87 x 22.5 x 121 mm
