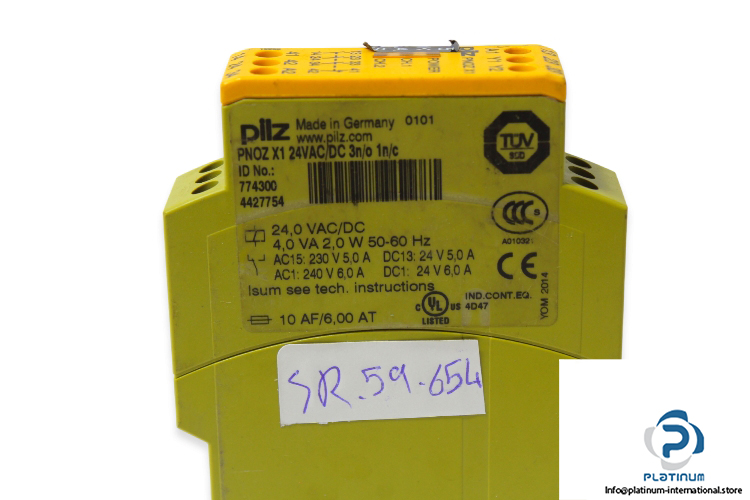

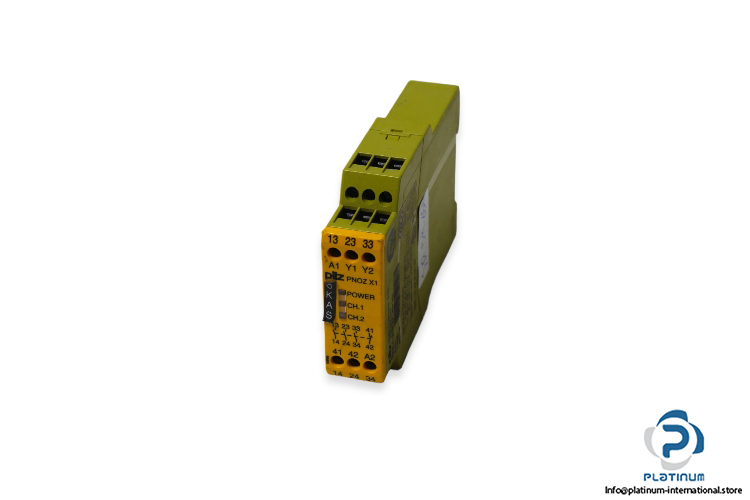

Pilz Pnoz X1 24VAC/DC 3N/O 1N/C Safety Relay

Manufacturer: Pilz

Type: Safety relay

Model: PNOZ X1 24VAC/DC 3N/O 1N/C

ID No.: 774300

Supply voltage: 24 V AC/DC

Power consumption AC: 4

Power consumption DC: 2

Number of inputs: 1

Relay outputs

Contacts type: 3 Normally open, 1 Normally closed

Contacts data: AC15: 230 V 5 A, AC1: 240 V 6 A, DC13: 24 V 5 A, DC1: 24 V 6 A

Relay contact material: AgCuNi

Number of channels: 2

Ambient temperature: -10 … 55 °C

Degree of Protection: mounting IP54, housing IP40, Terminal IP20
