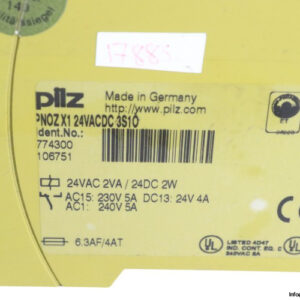

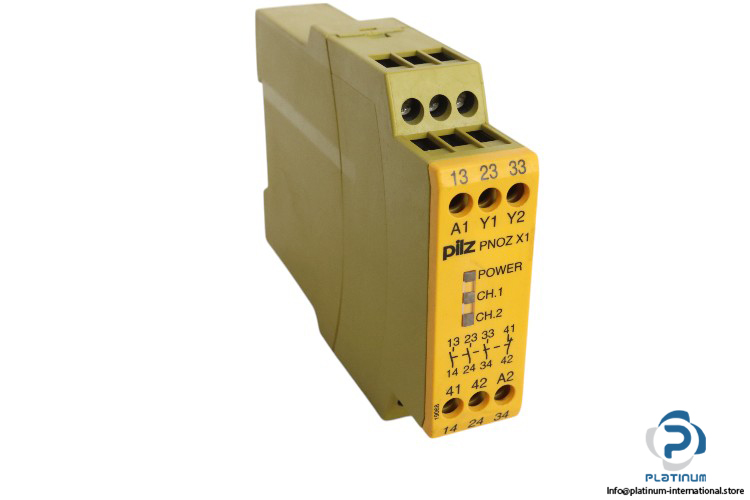

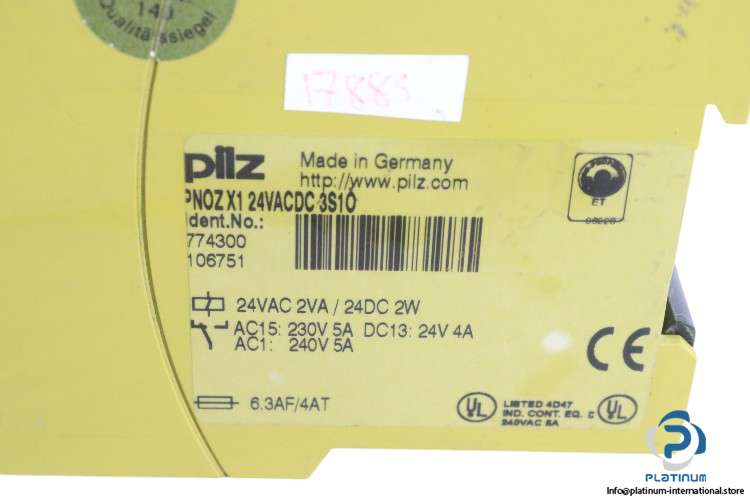

Pilz Pnoz X1 24VACDC 3S10 Safety Relay
The PILZ PNOZ X1 Safety Relay offers 24V AC/DC supply voltage, 5A rated current, IP40 protection, and reliable performance, designed for industrial safety and automation systems.
PILZ PNOZ X1 24VACDC 3S10 Safety Relay
The PILZ PNOZ X1 24VACDC 3S10 Safety Relay is a reliable and efficient solution designed to ensure safety in industrial applications. With versatile voltage tolerance and a range of rated currents, it provides secure control in a wide range of systems. This safety relay is designed for fixed mounting and features robust protection ratings, making it an ideal choice for machine safety and automation systems.
- Manufacturer: PILZ
- Type: Safety Relay
- Model: PNOZ X1 24VACDC 3S10
- Part No.: 774300
Technical Specifications:
- Supply Voltage: 24 V AC/DC
- Rated Current AC15: 5A at 230 V
- Rated Current AC1: 5A at 240V
- Rated Current DC13: 4A at 24V
- Voltage Tolerance: -15 % / +10 %
- Output of External Power Supply (AC): 2 VA
- Output of External Power Supply (DC): 2 W
- Frequency Range AC: 50 – 60 Hz
- Rated Insulation Voltage: 250 V
- Rated Impulse Withstand Voltage: 6 kV
- Connection Type: Screw terminal
- Mounting Type: Fixed
- Torque Setting with Screw Terminals: 0.6 Nm
- Protection Type: Housing IP40, Terminals IP20, Mounting Area IP54
- Ambient Temperature: -10 – 55 °C
- Dimensions (H x W x D): 87 x 22.5 x 121 mm
The PILZ PNOZ X1 Safety Relay offers robust performance with its excellent rated current values and protection levels. Its compact design and versatile mounting options make it suitable for a wide range of industrial environments, ensuring safe and reliable operation in all conditions.
