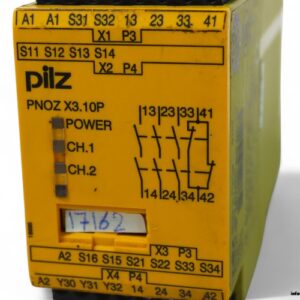

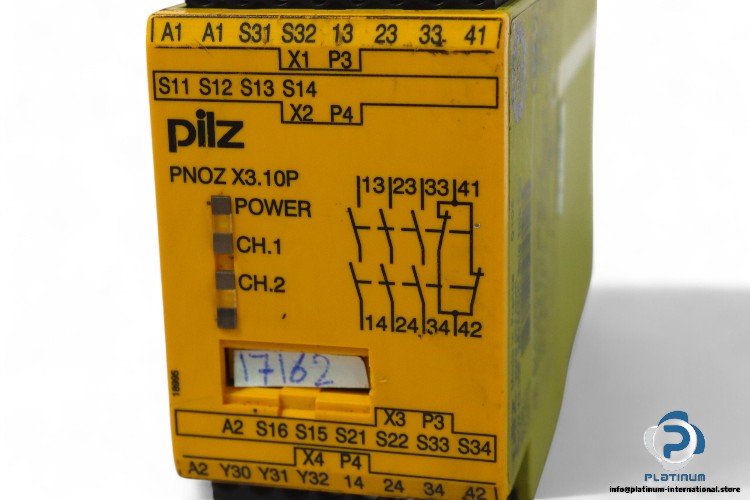

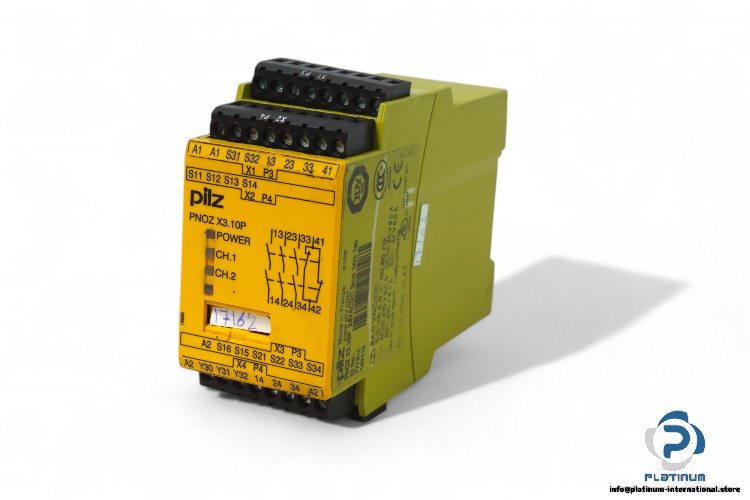

Pilz Pnoz X3.10P Safety Relay
Used
In stock1 unitReady to ship
Pilz Safety Relay PNOZ X3.10P “ Reliable 24VAC/DC safety relay with 3 NO + 1 NC contacts, 8A current rating, IP54 protection, and robust performance for industrial safety control.
1NC24VAC/DC3NO777314AutomationComponentConfigurationContactControlIndustrialIP54PilzPnozRelaySafetyX3.10P
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

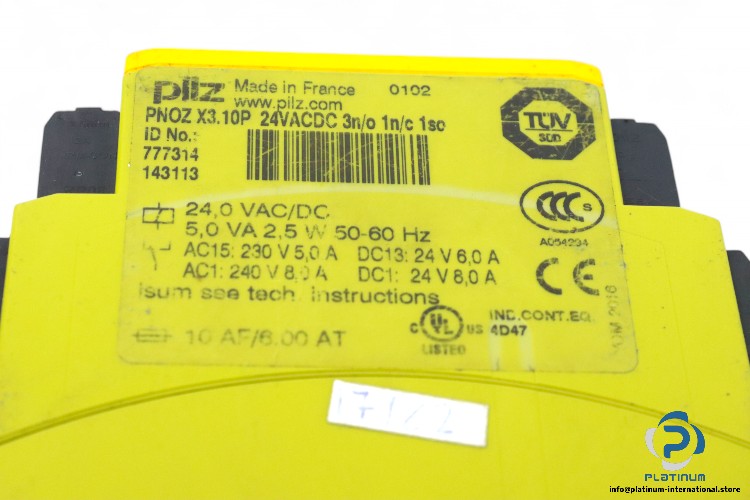

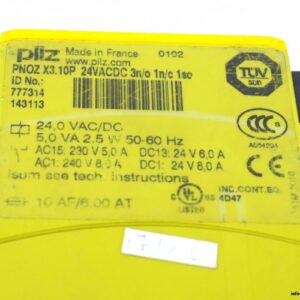

Pilz Safety Relay PNOZ X3.10P 24VACDC 3N/0 1N/C 1S0 (Part No.: 777314)
The Pilz PNOZ X3.10P Safety Relay is a reliable and versatile safety control solution designed to ensure optimal protection in industrial automation systems. Built to meet stringent safety standards, this relay provides seamless monitoring and control with robust performance and long-lasting durability.
Key Features:
- Supply Voltage: 24 VAC/DC
- Power Rating: 5 VA, 2.5 W
- Contact Current Rating: 8 A
- Frequency: 50/60 Hz
- Contact Configuration: 3 NO + 1 NC
- Semiconductor Output: 1
- Contact Ratings:
- AC15 @ 230V / 5A
- DC13 @ 24V / 6A
- AC1 @ 240V / 8A
- DC1 @ 24V / 8A
- Dimensions: 121 x 94 x 45 mm
- Protection Class:
- Mounting (Cabinet): IP54
- Housing: IP40
- Terminals: IP20
- Operating Temperature: -20°C to 55°C
Engineered with precision, the PNOZ X3.10P ensures maximum safety with advanced contact monitoring, reliable outputs, and easy integration into industrial control systems. Ideal for applications requiring precise safety functions.
