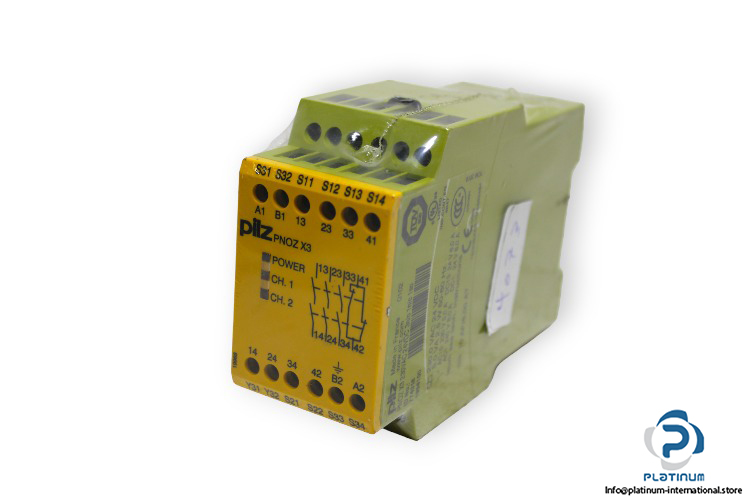

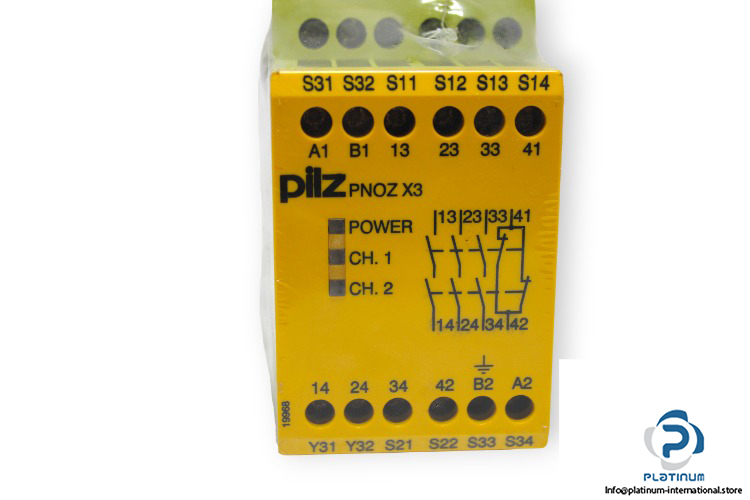

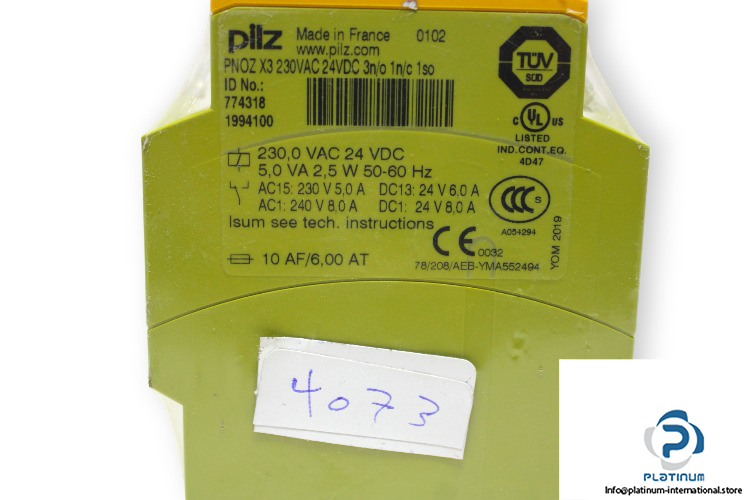

Pilz Pnoz X3 230VAC 24VDC 3N/O 1N/C 1SO Safety Relay

Manufacturer: Pilz

Type: Safety Relay

Model: PNOZ X3 230VAC 24VDC 3N/O 1N/C 1SO

Part No.: 774318 / 1994100

Supply voltage: 230 V AC / 24 V DC

Max. current at DC13: 24V, 6 A

Max. current at DC1: 24V, 6 A

Max. current at AC15: 230V, 5 A

Max. current at AC1: 240V, 5 A

Terminal style: fixed

Terminal type: Screw terminal

Number of instantaneous safety contacts: 3 Normally open Number of auxiliary contacts: 1 Normally closed

Number of semiconductor outputs: 1

Ambient temperature: -20 … +55 °C

Dimensions: 45 x 87 x 121 mm
