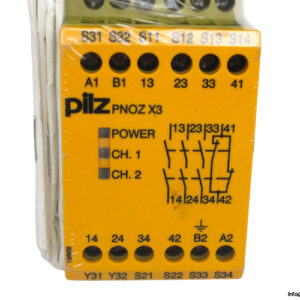

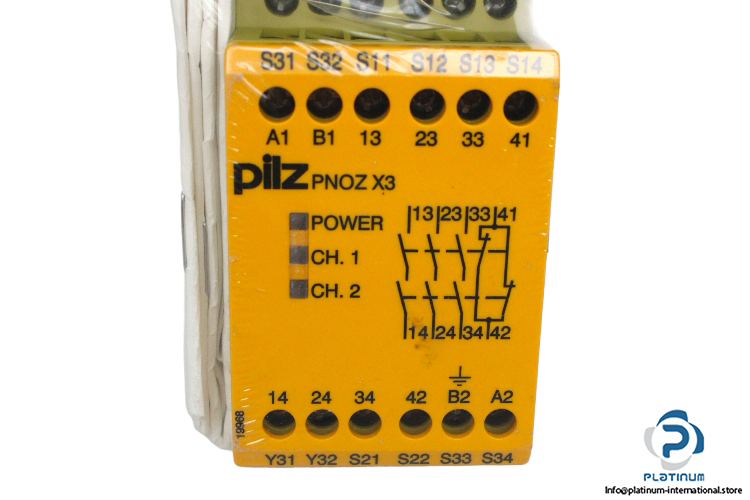

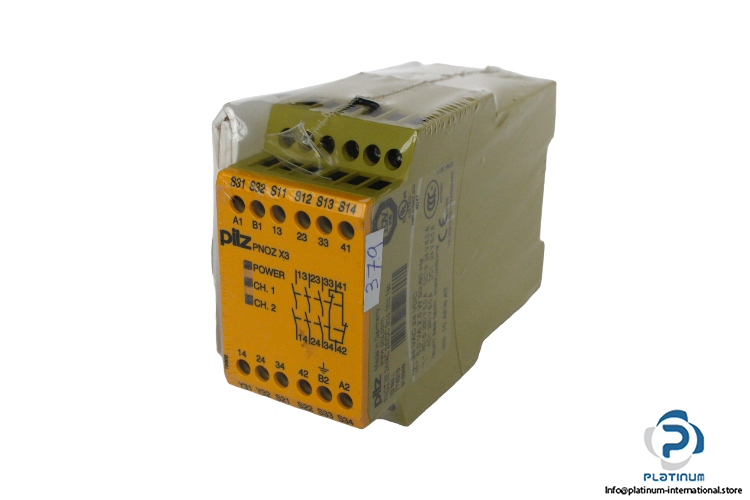

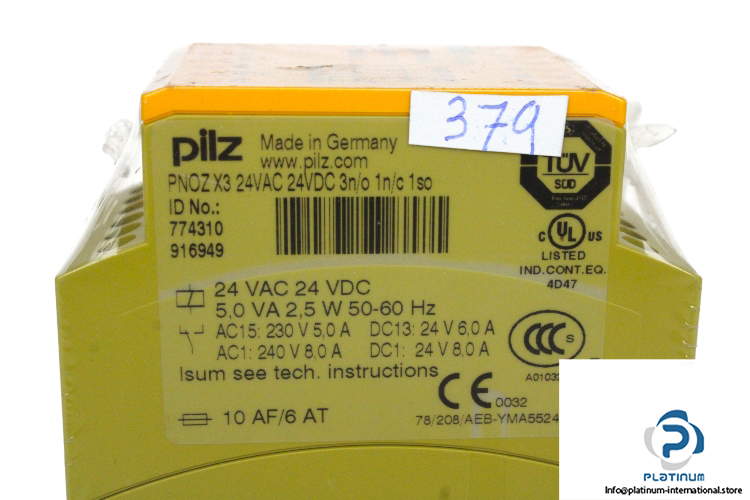

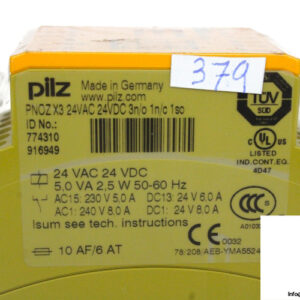

Pilz Pnoz X3 24VAC 24VDC 3N/O 1N/C 1SO Safety Relay Standalone Safety Relay

Manufacturer: PILZ

Type: Safety Relay Standalone

Model: PILZ PNOZ X3 24VAC 24VDC 3N/O 1N/C 1SO

Part No.: 774310

MNR: 916949

Supply Voltage: 24 V AC/DC

Power Consumption: 2.5 W, 5 VA

Frequency: 50-60 Hz

Contact Output: 3 N/O, 1 N/C

Max. Current at DC13 / AC15 : 6 A / 5 A

Terminal Style: fixed

Terminal Type: Screw terminal

Ambient Temperature: –20 … +55 °C

Dimension: 121 X 45 X 87 mm
