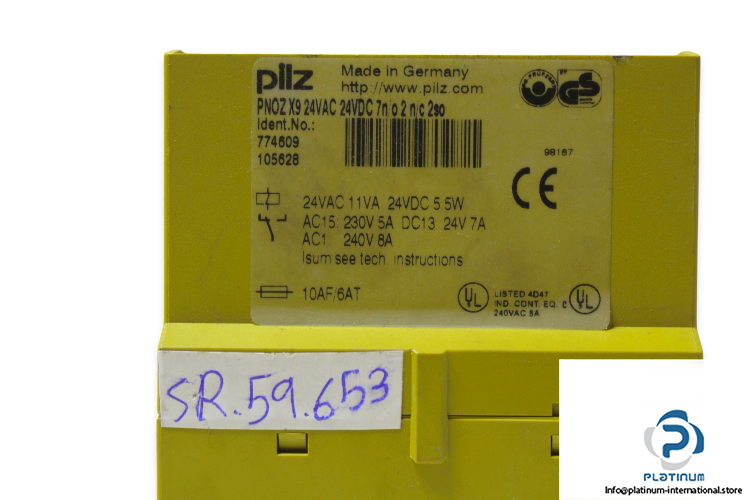

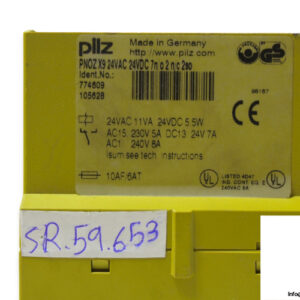

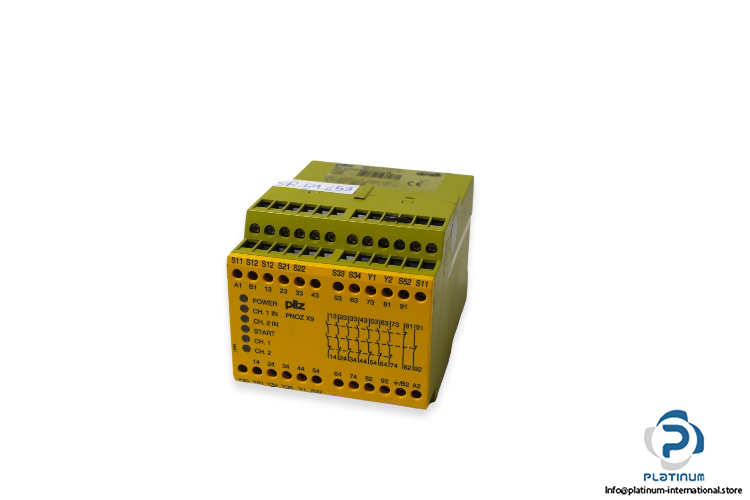

Pilz Pnoz X9 24VAC 24VDC 7N/O 2N/C 2SO Safety Relay

Manufacturer: Pilz

Type: Safety relay

Model: PNOZ X9 24VAC 24VDC 7N/O 2N/C 2SO

Ident No.: 774609

Supply voltage: 24 V AC/DC

Power consumption AC: 11 VA

Number of inputs: 2

Number of semicond. outputs: 2

Relays output: 7 Normally open contacts, 2 Normally closed contacts

Contacts data: AC15: 230 V 5 A, DC13: 24 V 7 A, AC1: 240 V 8 A

Relay contact material: AgSnO2

Ambient temperature: -10 … 55 °C

Degree of Protection: mounting IP54, housing IP40, Terminal IP20

Housing material: PPO UL 94 V1
