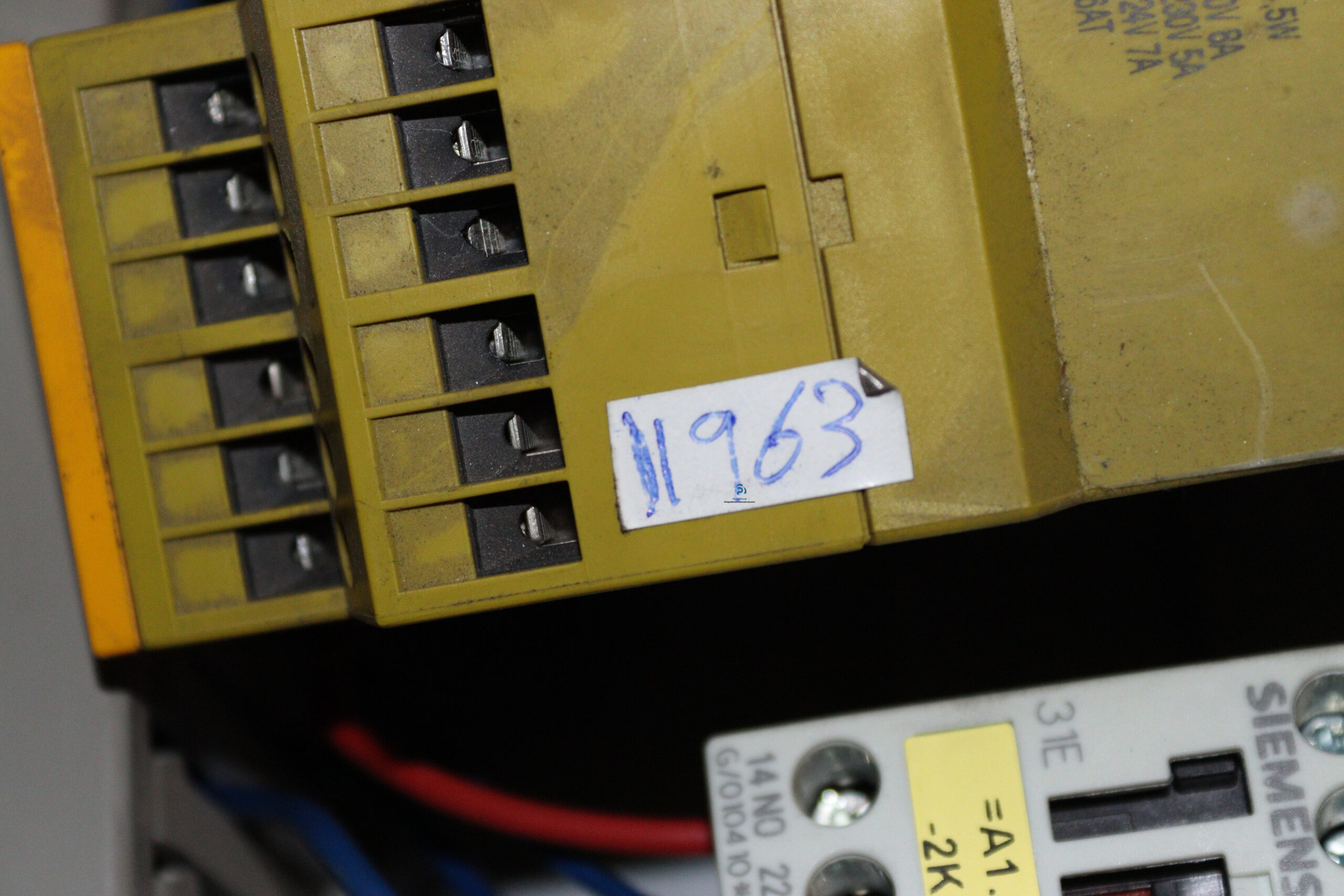

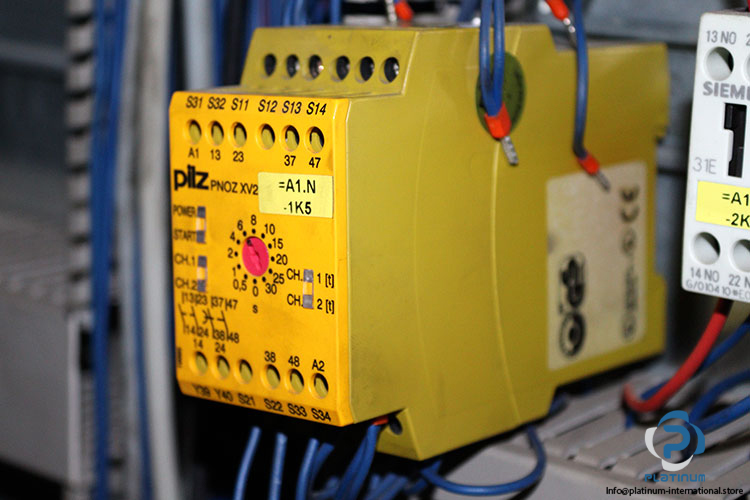

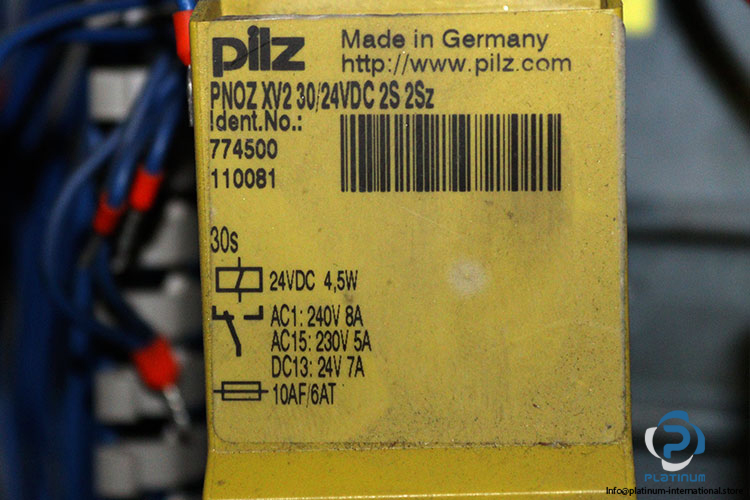

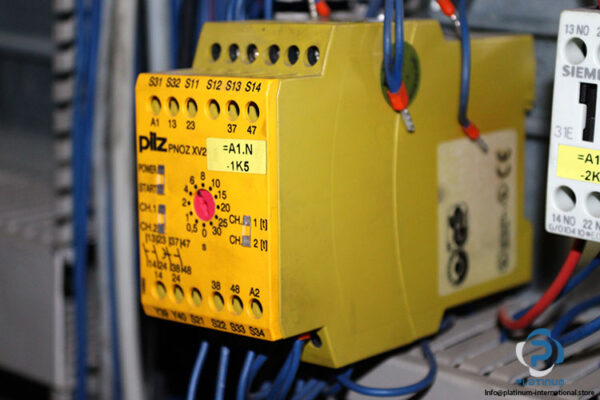

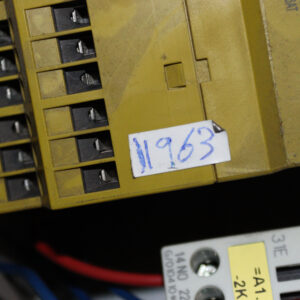

Pilz Pnoz XV2 30/24VDC 2S 2SZ Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: PNOZXV230/24VDC2S2SZ
Part No.: 774500 / 110081

Rated Supply Voltage: 24 V DC
Power Consumption: 4.5 W
Inputs No.: 2-Channels
Selectable Time: 0 … 30 s
Contact: 4 Normally Open (NO)
Rated Contact Voltage:
AC1: 240 V
AC15: 230 V
DC13: 24 V
Rated Contact Current:
AC1 240 V: 8 A
AC15 230 V: 5 A
DC13 24 V: 7 A
Type of Electrical Connection: Screw Terminals
Housing Material:
Front Plate: ABS UL 94 V0
Upper Part: PPO UL 94 V1
Ambient Temperature: -10 … 55 °C
Dimensions (H x W x D): 87 x 45 x 121 mm
