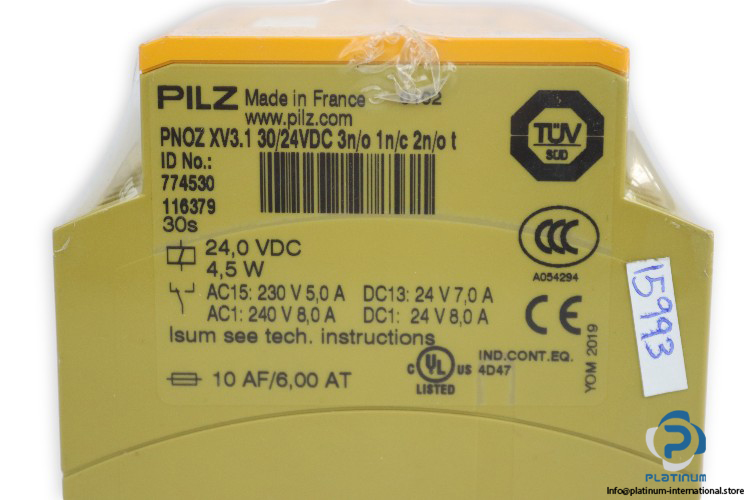

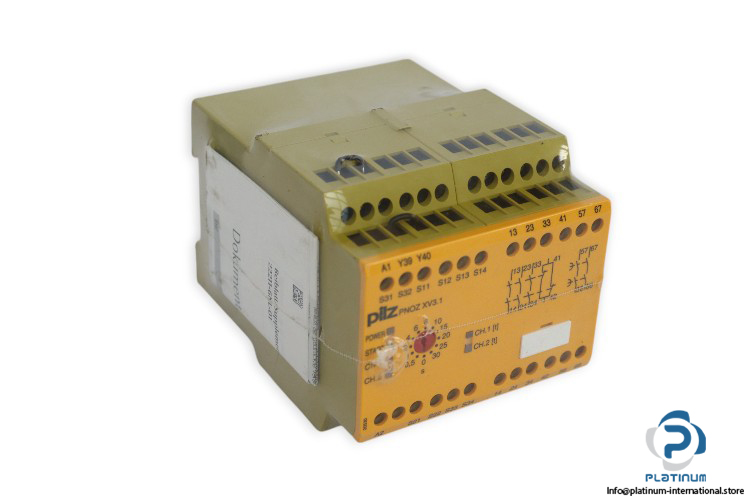

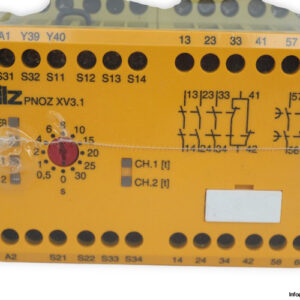

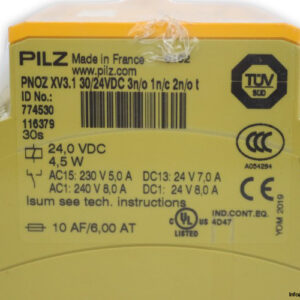

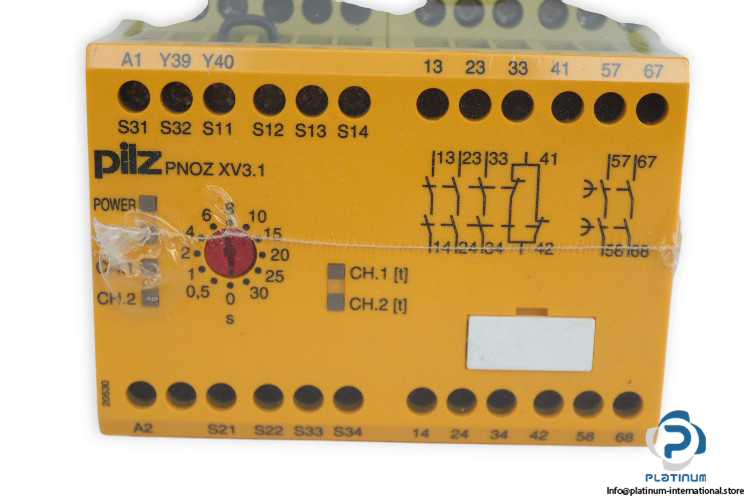

Pilz Pnoz XV3.1 30/24VDC 3N/O 1N/C 2N/O T 116379 Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: PNOZXV3.13024VDC3no1nc2not 116379
Part No.: 774530

Used for: Monitoring Emergency Stops, Guardrails, Light Barriers and Other Safety Systems
Rated Supply Voltage: 24 V DC
Power Consumption: 4.5 W
Inputs No.: 2
Time Range: 0 … 30 s
Contact: 3 Normally Open (NO) + 1 Normally Closed (NC)
Delayed Contact: 2 Normally Open (NO)
Rated Contact Voltage:
AC1: 240 V, 8.0 A
AC15: 230 V, 5.0 A
DC1: 24 V, 8.0 A
DC13: 24 V, 7.0 A
Electrical Connection: Screw terminals
Housing Material: ABS UL 94 V0
Ambient Temperature: -10 … 55 °C
Dimensions (H x W x D): 94 x 90 x 121 mm
