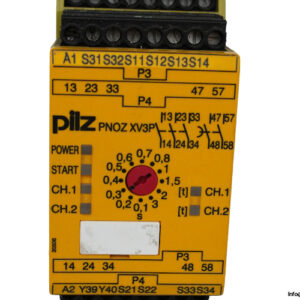

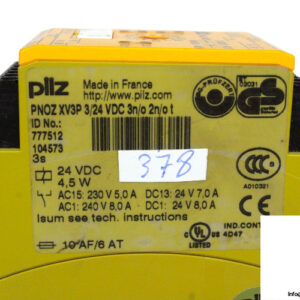

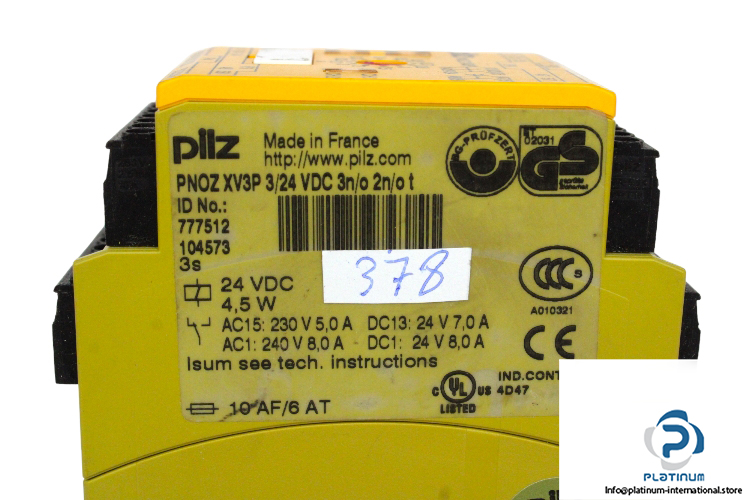

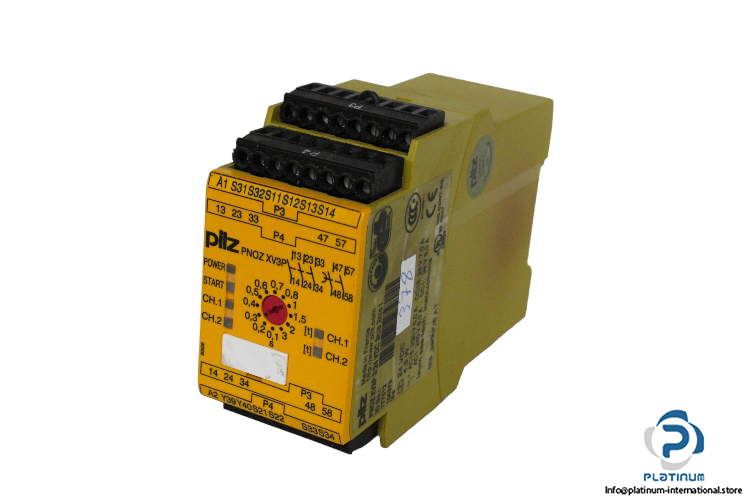

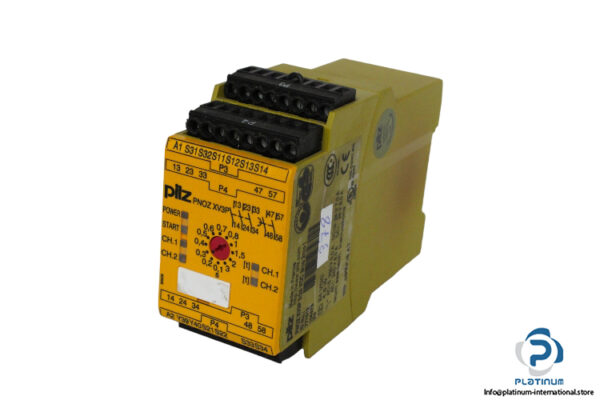

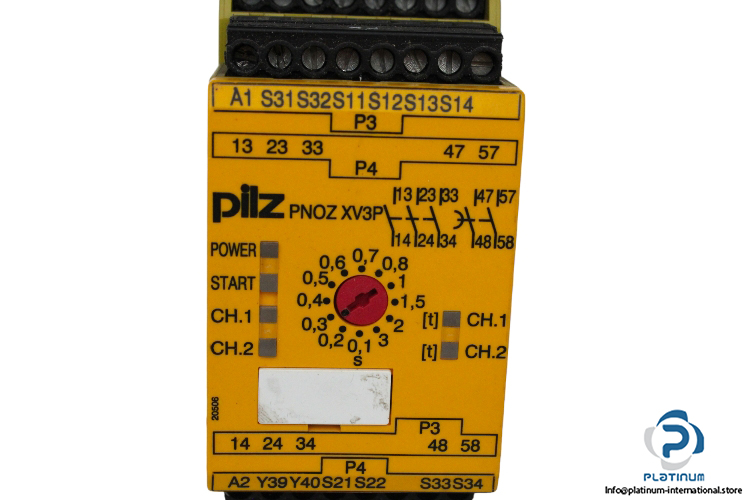

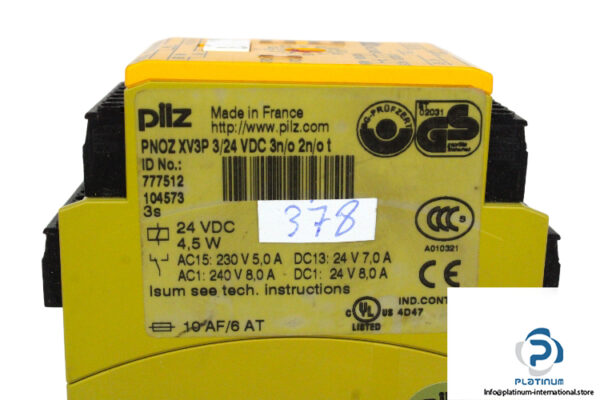

Pilz Pnoz XV3P 3/24 VDC 3N/O 2N/O T Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: PNOZ XV3P 3/24 VDC 3N/O 2N/O T
Part No.: 777512
MNR: 104573

Supply Voltage: 24 V DC
Power Consumption:  4.5 W
No. of inputs: 2-channel
Number of semicond. Outputs:5,  3( NO),2 (NO)
Voltage AC15 safety cont.: 230 V, 5 A
Voltage AC1 safety cont.: 240 V, 8 A
Voltage DC1 safety cont.: 24 V , 8 A
Voltage DC13 safety cont.: 24 V ,7 A
Max. Timing: 3 sec
Dimension: 94 x 45 x 121 mm
Ambient Temperature: -10 … 55°C
