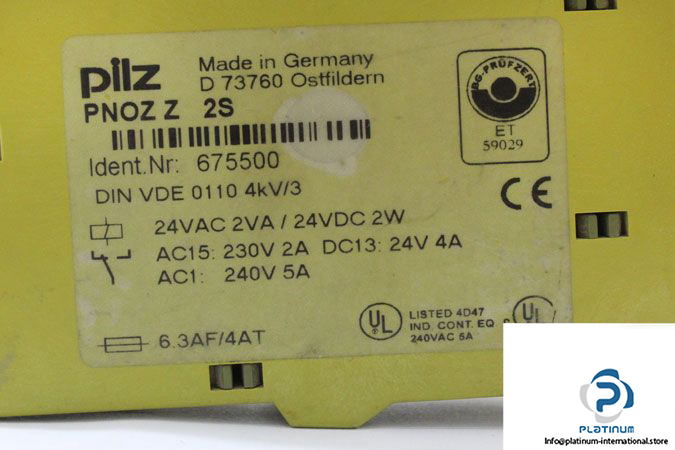

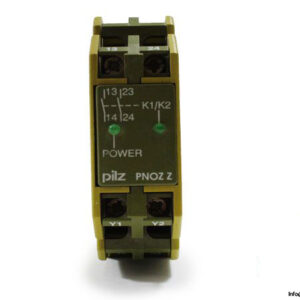

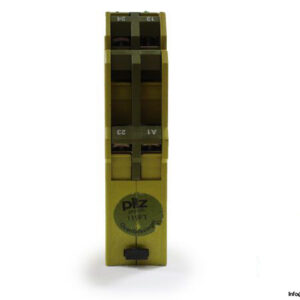

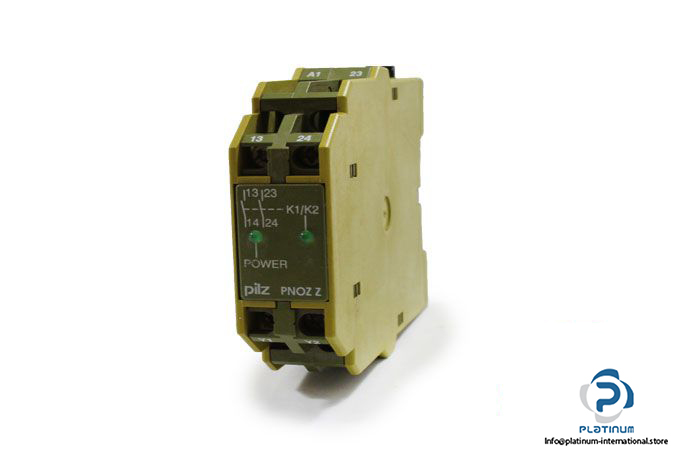

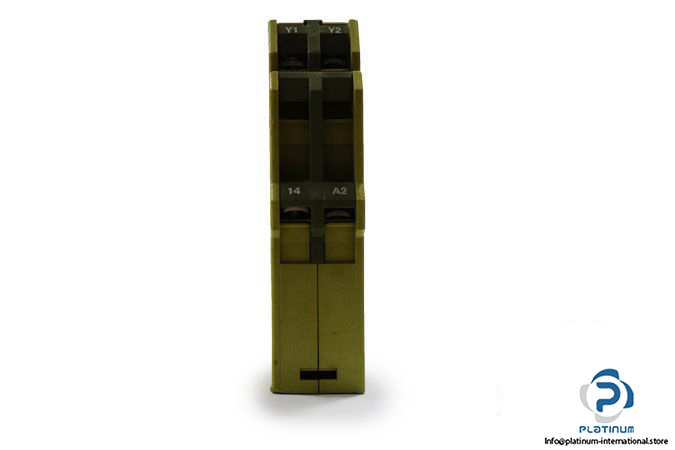

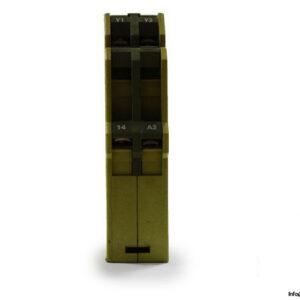

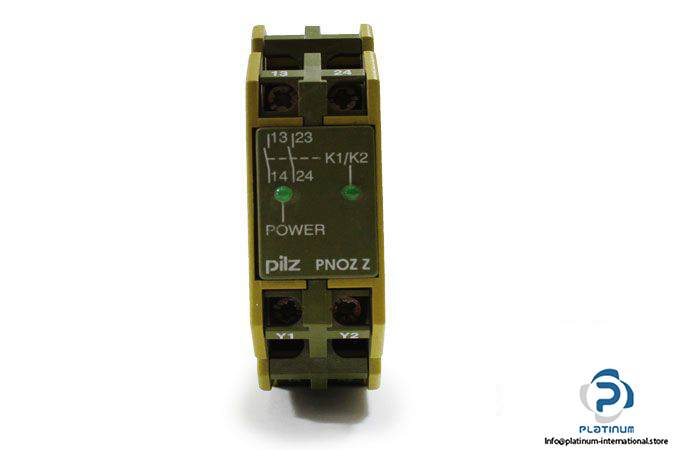

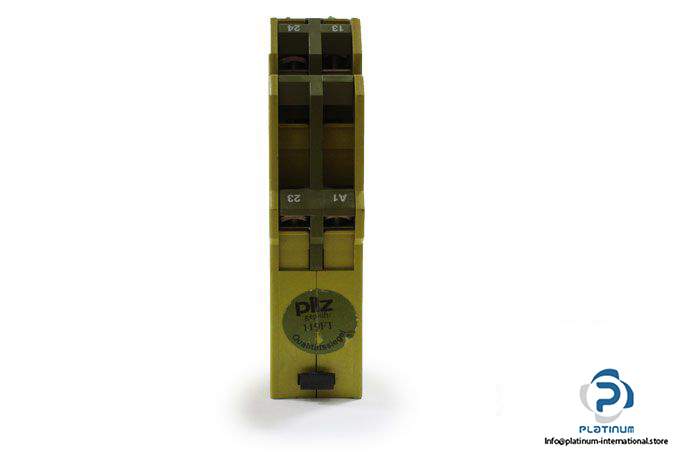

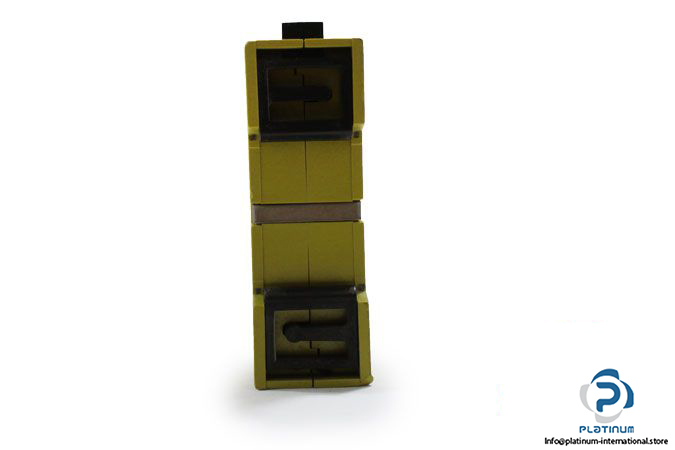

Pilz Pnoz Z 2S Emergency Stop Relay

Manufacturer: PILZ

Type: EMERGENCY STOP RELAY, SAFETY GATE MONITOR

Model: PNOZ Z 2S

Part No.: 675500

Supply Voltage: 24 V AC / DC

Power Consumption: 2 VA / 2 W

Frequency: 50-60 Hz

Ambient Temperature: -10 … +55 °

Output Contacts: 2 safety contacts (N/O)

Contact Fuse Protection: 6 A quick or 4 A slow

Delay-on Energisation / De-Energisation: Max. 100 ms / 70 ms

Torque Setting on Connection Terminals: 0.6 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 75 X 22.5 X 105 mm

Protection Class: IP 20

Weight: 0.6 Kg
