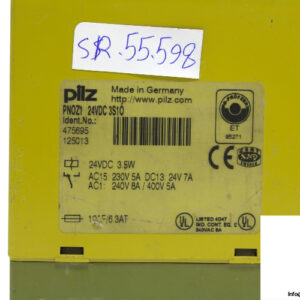

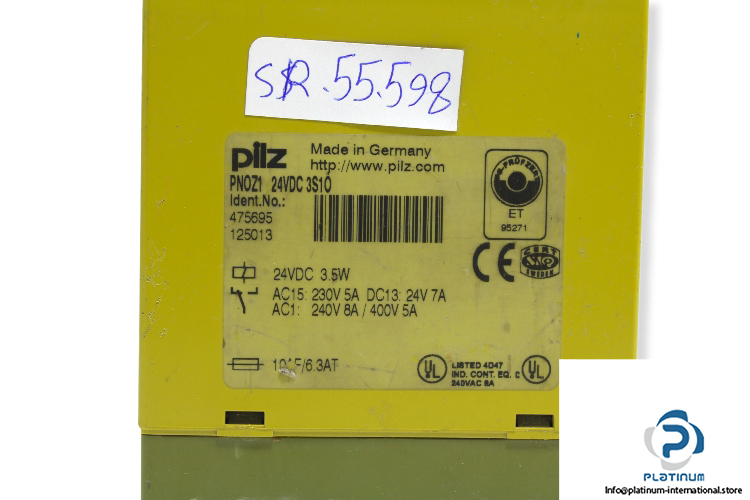

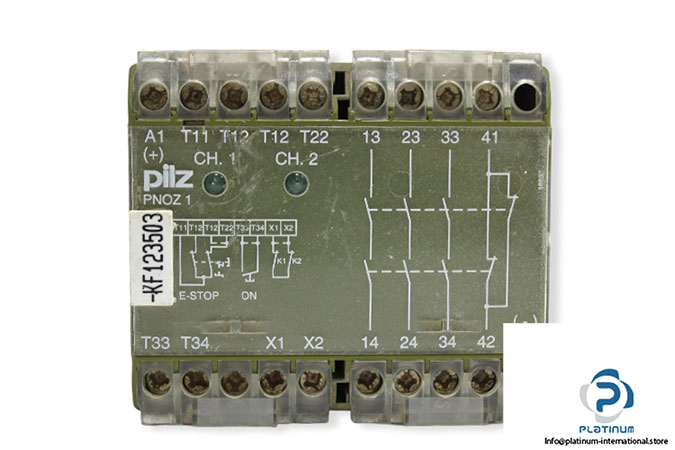

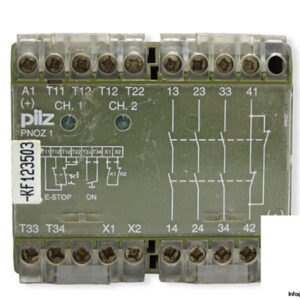

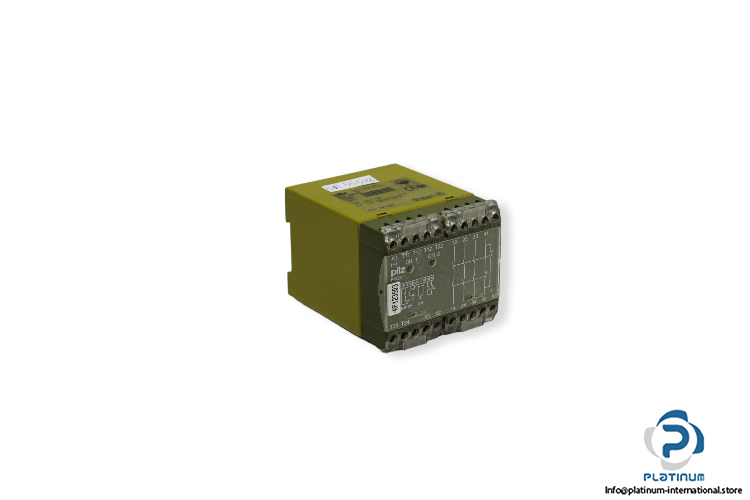

Pilz PNOZ1 24VDC 3S1O Emergency Stop Relay

Manufacturer: PILZ

Type: Emergency stop relay

Model: PNOZ1 24VDC 3S1O

Part No: 475695125013

Supply voltage: 230 V AC

Power consumption: 6 VA

Contact Fuse Protection: 6.3 A quick

Frequency: 50 … 60 Hz

Switching Capability

Conacts: 3 safety contacts (N/O), 1 auxiliary contact (N/C)

AC1: 240 V/8 A/2000 VA, 400 V/ 5 A/2000 VA

AC15: 230 V/ 5 A

DC13: 24 V/ 7 A

Ambient Temperature: -10 … +55 °C

Protection Mounting: IP 54

Protection Housing: IP 40

Protection Terminal Range: IP 20

Dimension: 75 x 90 x 110 mm
