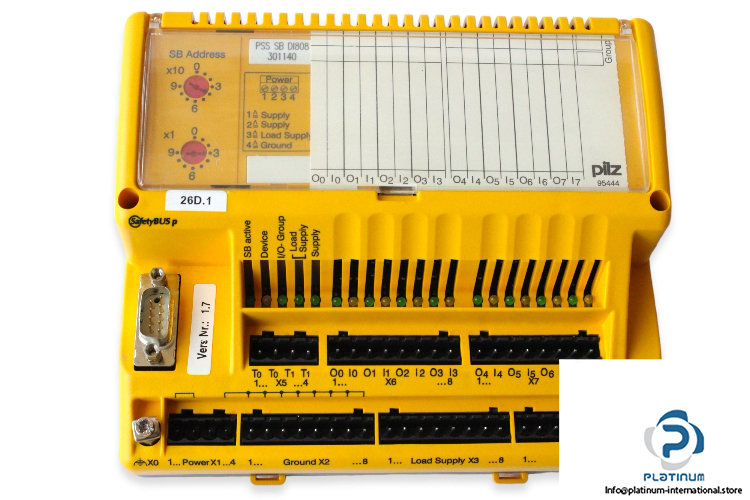

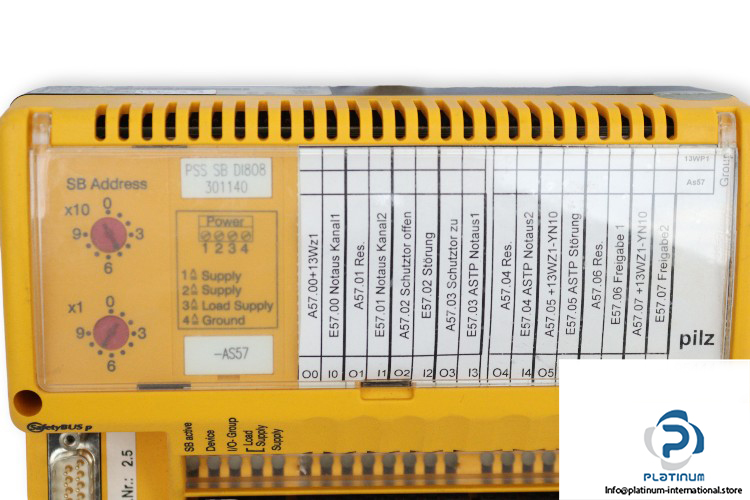

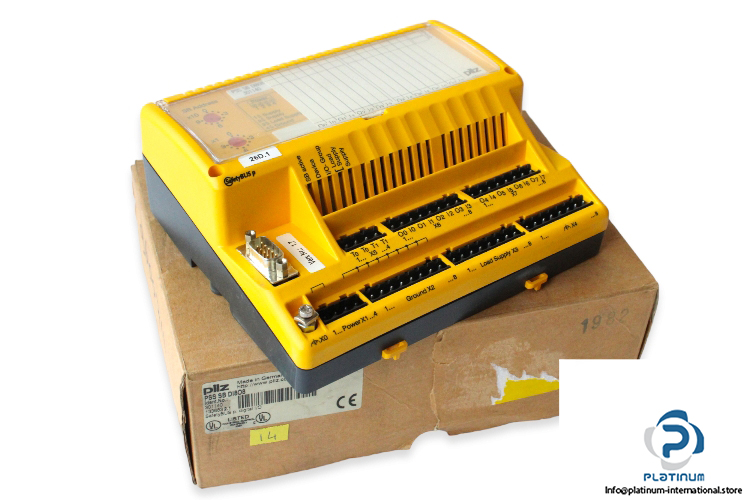

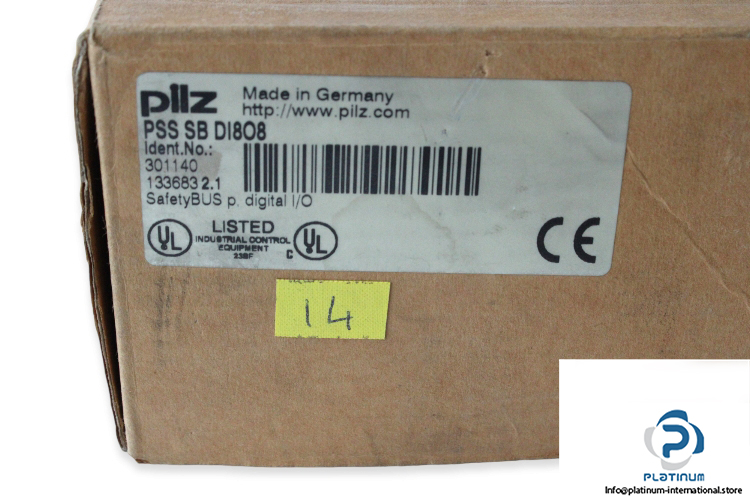

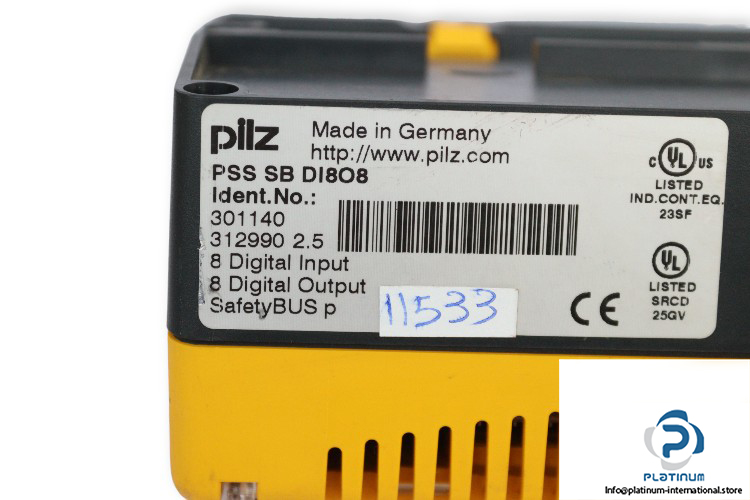

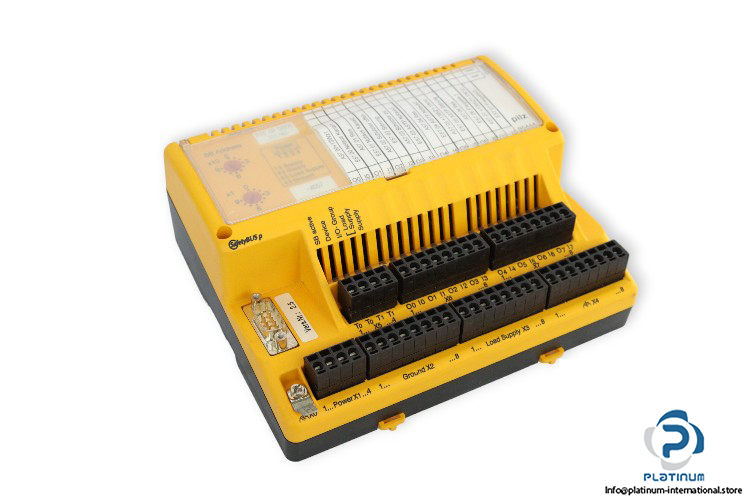

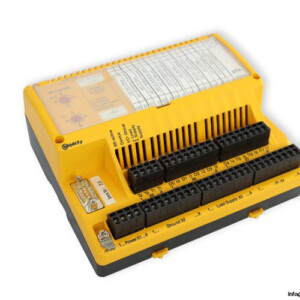

Pilz PSS SB DI8O8 Programmable Safety Systems

Manufacturer: PILZ
Type: Programmable Safety Systems
Model: PSS SB DI8O8
Part No: 301140

Supply Voltage: 24 V DC (20 … 30 V DC)

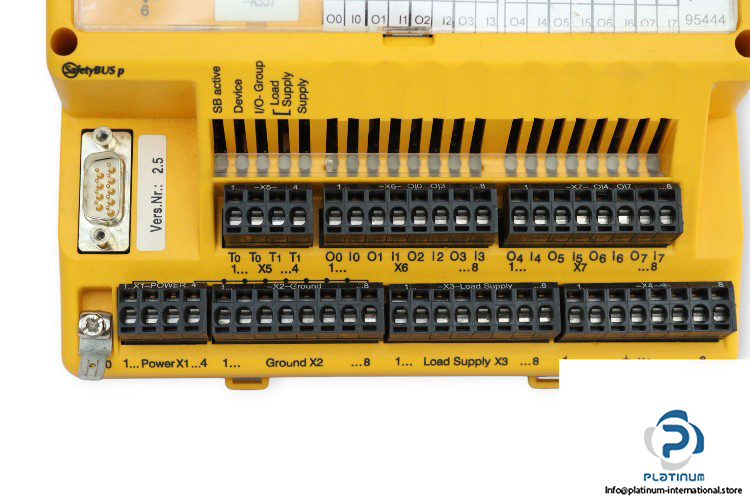

Connection type: Spring-loaded terminals or plug-in screw connectors

Connection for Safety BUS p: 9-pin D-Sub connector

Inputs

Number of digital inputs (DI): 8

Signal level at “1” (high): +15 … +30 V DC

Signal level at “0” (low): -3 … +5 V DC

Input current: 6 mA

Outputs positive-switching

Number of outputs: 6

Output current at “1” signal: 2 A

Signal level at the outputs “0” signal: 0 V DC

“1” signal and 2.5 A load: Ub-1 V DC

Outputs negative-switching

Number of outputs: 2

Output current at “1” signal: 2 A

Signal level at the outputs “0” signal: Ub

“1” signal and 2.5 A load: < 1 VDC

Protection degree: IP20

Ambient temperature: 0 … 60 °C

Dimensions: 140 x 170 x 65 mm
