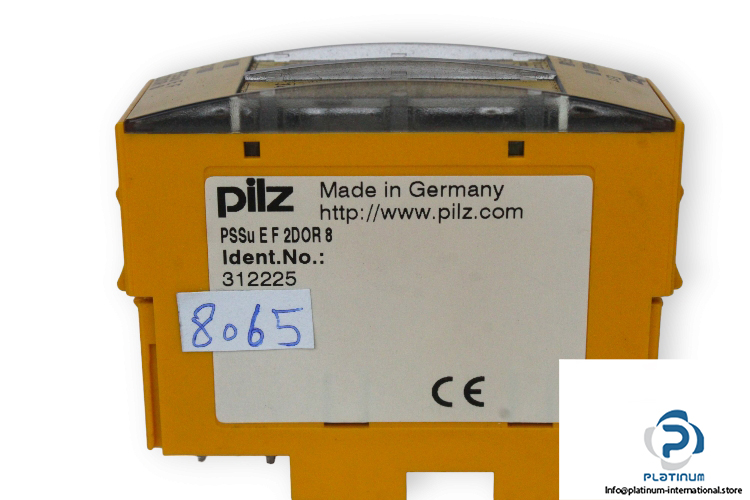

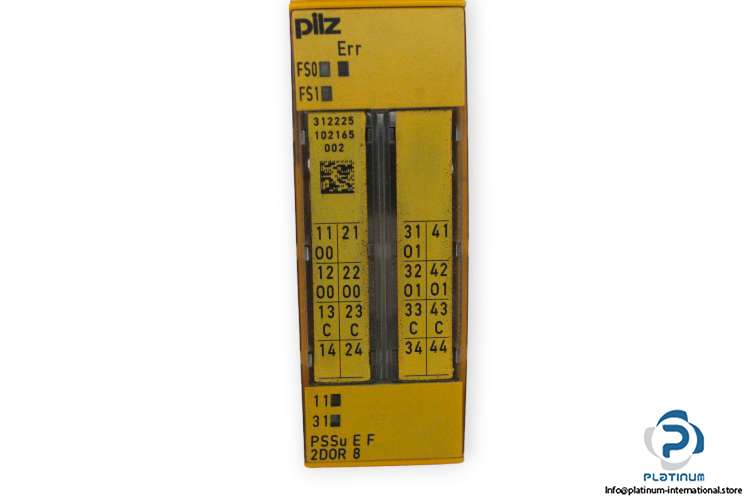

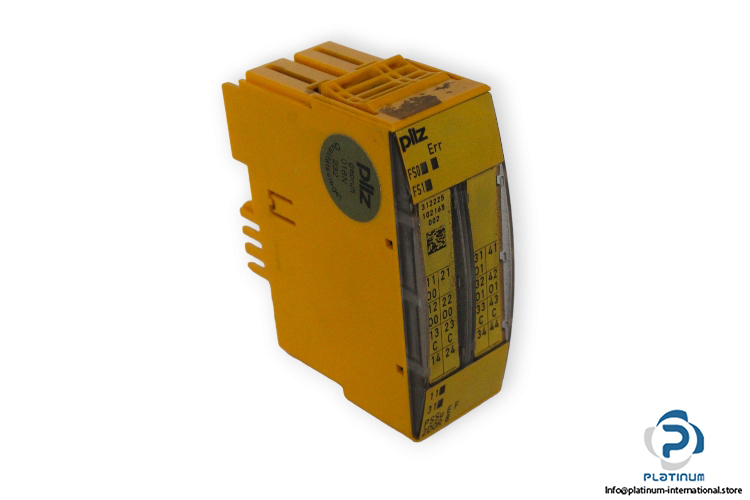

Pilz Pssu E F 2DOR 8 Safety Relay
Manufacture: Pilz
Type: Safety relay
Model: PSSU E F 2DOR 8
Part No.: 312225
Voltage range: 16,8 … 30 V
No. of relay outputs: 2
Max. power dissipation: 2,5 W
Max. inrush current: 1 A
Contact rating:
AC-1: 250 V AC,8 A,2000 VA
DC-1: 24 V DC,8 A,192 W
AC-15: 230 V AC,3 A
DC-13: 24 V DC,5 A
Contact material: AgCuNi + 0,2 µm Au
Mounting type: plug-in
Pollution degree: 2
Protection type, housing: IP20
Ambient temperature: 0 … 60 °C
Dimension: 76 x 25.2 x 60.2 mm
