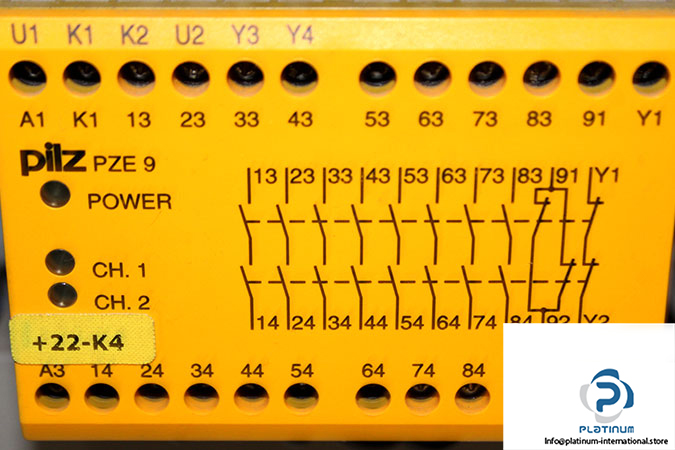

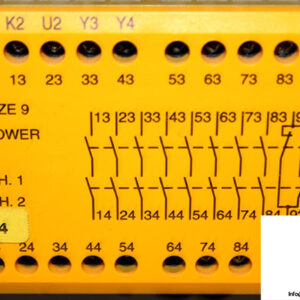

Pilz PZE 9 24VDC 8N/0 1N/C Contact Expansion

Manufacturer: PILZ
Type: Contact expansion
Model: PZE 9 24VDC 8N/0 1N/C
Part No.: 774150

Supply Voltage: 24 V DC
Power Consumption: 3.5 W
Number of inputs: 2
Contact Configuration: 8 NO, 1 NC
Contact Rating: 230 V AC,5 A/ 240 V AC,8 A/ 24 V DC, 7 … 8 A
Connection Terminal: Screw Terminal

Terminal Style: Fixed
Operating Temperature: -10 … 55 °C
Dimensions: 87 X 90 X 121 mm
