Pilz PZE X4 24VDC 4N/O Safety Relay
Used
In stock2 unitsReady to ship
PILZ Safety Relay PZE X4 24VDC 4N/O
Compact safety relay with 4 NO outputs, 24 V DC, 240 V AC, and 2.5 W power consumption for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

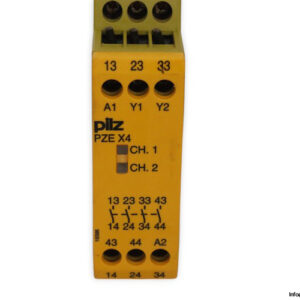

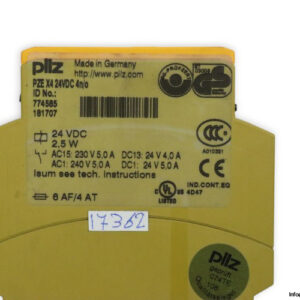

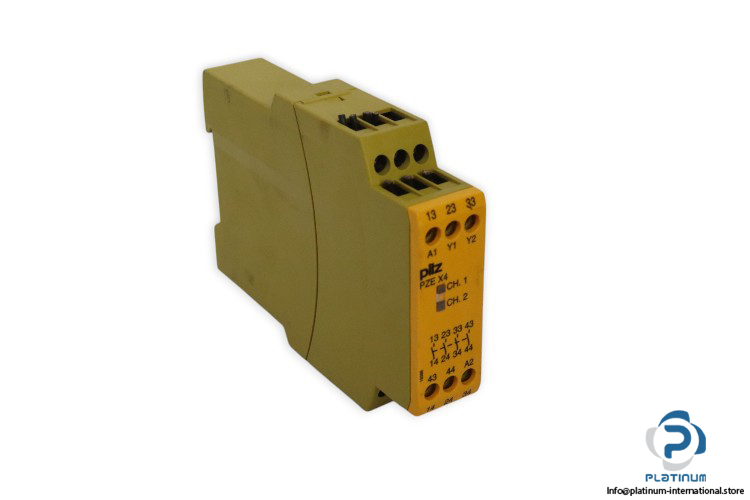

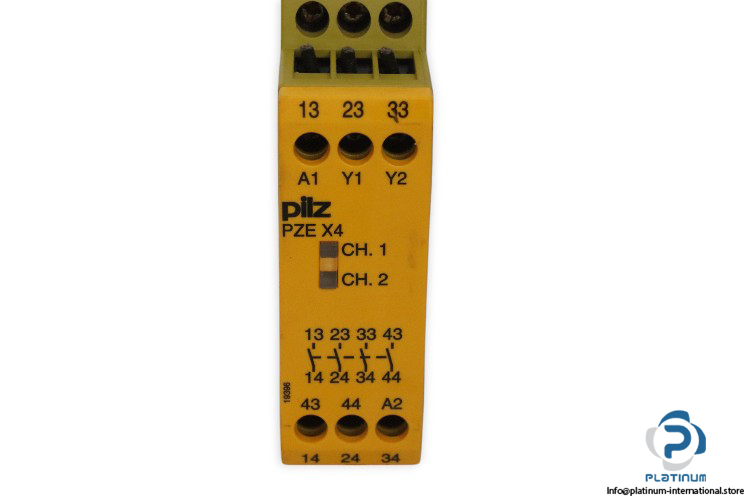

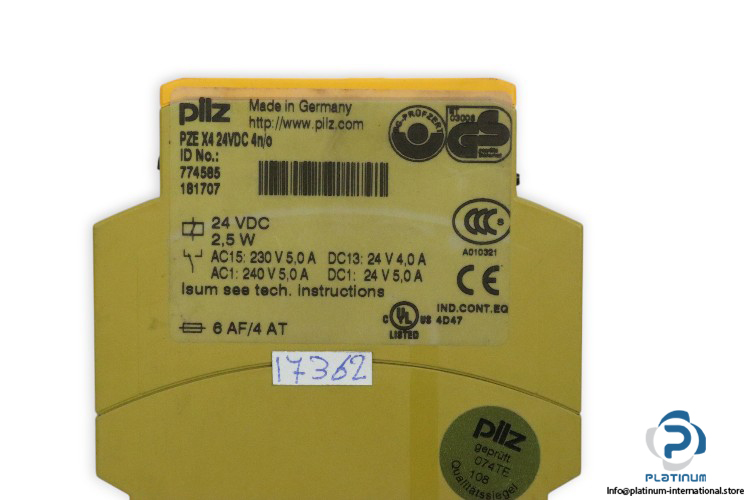

PILZ Safety Relay PZE X4 24VDC 4N/O
The PILZ PZE X4 24VDC Safety Relay (Part No. 774585) is designed for industrial safety applications requiring reliable and efficient performance. This relay operates at 24 V DC and supports a rated voltage of up to 240 V AC at 5 A. It features 4 normally open (NO) outputs and a compact design, making it an excellent choice for environments with space constraints.
- Manufacturer: PILZ
- Type: Safety Relay
- Model: PZE X4 24VDC 4N/O
- Part No.: 774585
- Rated Voltage (AC1): 240 V A at 5 A
- Rated Voltage (DC1): 24 V at 5 A
- Power Consumption (DC): 2.5 W
- Inputs: 1-channel wiring
- Outputs: 4 Normally Open (NO)
- Ambient Temperature: -10 to 55 °C
- Dimensions (H X W X D): 87 x 22.5 x 121 mm
