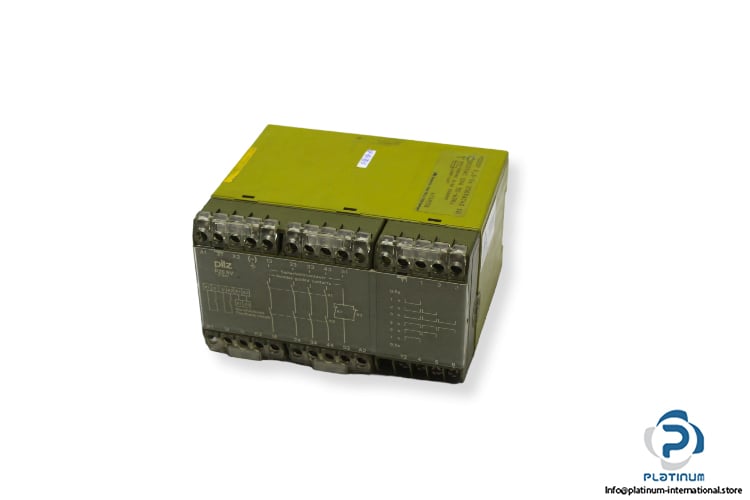

Pilz PZE5V 0,5-3S 230VAC4S 1O Expander Module

Manufacturer: Pilz

Type: Expander Module

Model: PZE5V 0,5-3S 230VAC4S 1O

Order No.: 474958

Supply voltage: 230 V AC

Power consumption: 5 VA

Frequency: 50 – 60 Hz

Number of channels: 2 channels

Output contacts: 4 Safety contacts (Normally open), 1 Auxiliary contact (Normally closed)

Switching capacity: 250/400VAC, 8/5A, 2000VA

Operating Temperature: -10 … +55 °C

Degree of Protection: Mounting IP 54, Housing IP 40, Terminal range IP 20

Dimensions: 87 x 135 x 110 mm
