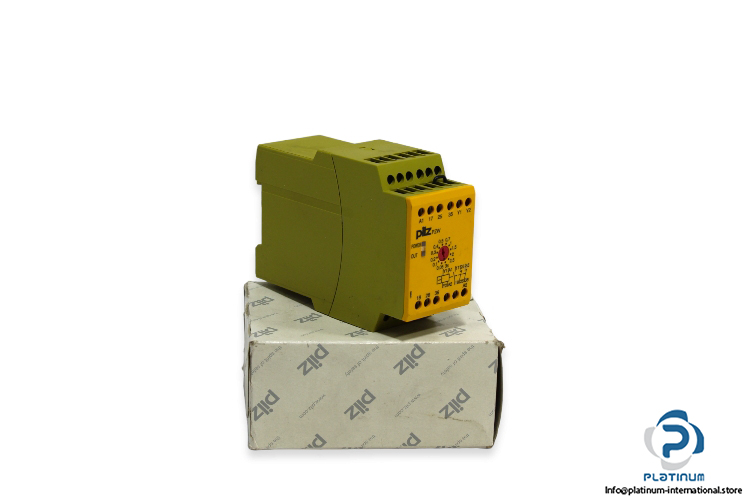

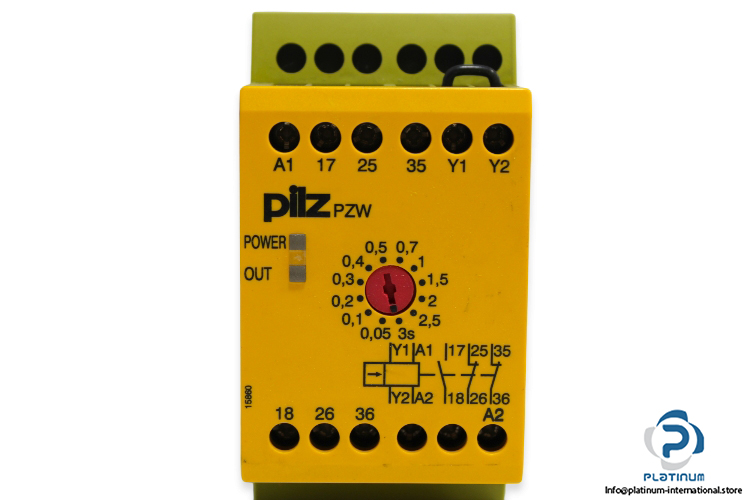

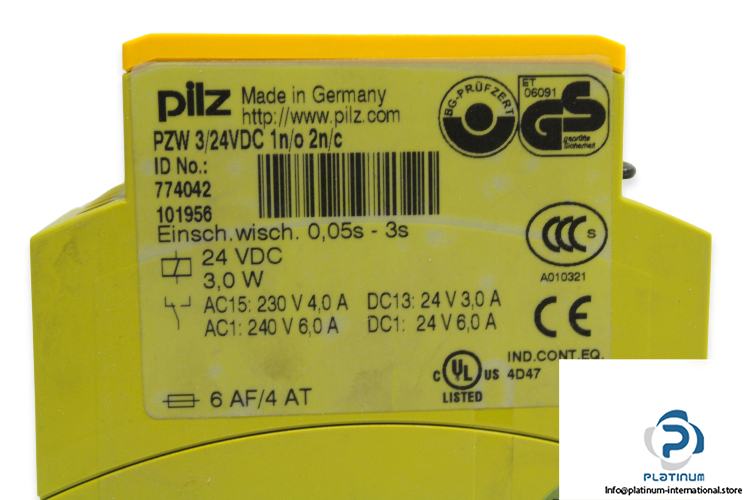

Pilz PZW 3/24VDC 1N/O 2N/C Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

Model: PZW 3/24VDC 1N/O 2N/C

Part No: 774042101956

Supply voltage: 24 V DC

Time range: 0.05 … 30s

Power consumption: 3 W

Contact Fuse Protection: 4 A quick

Relay outputs:

Contacts: 1 Safe Contacts (N/O),2 Auxiliary Contacts (N/C)

AC15: 230 V/4 A

DC13: 24 V/3 A

AC1: 240 V/6 A

DC1: 24 V/6 A

Ambient temperature: -10 … 55 °C

Protection

Mounting: IP54, Housing: IP40, Terminal: IP20

Dimensions: 87 x 45 x 121 mm
