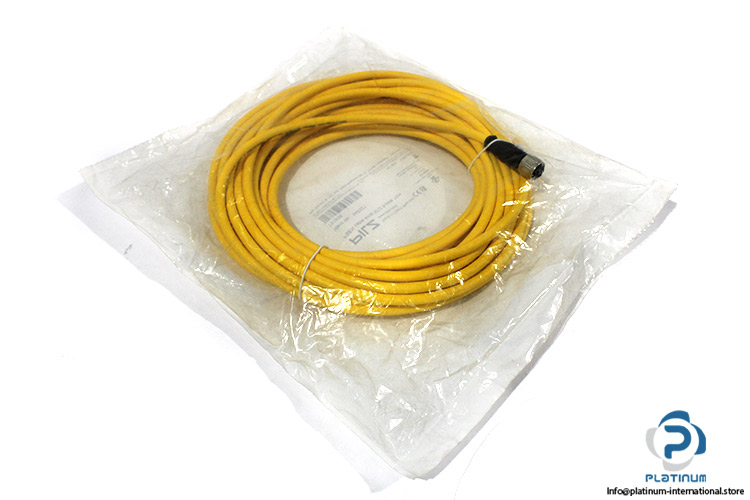

PILZ 540321 Connection Cable
New
In stock32 unitsReady to ship
PSEN Axial Connection Cable PILZ PSEN axial connection cable with 10 m length, 8-pin M12 female connector, IP68 protection rating, and durable PUR insulation for industrial safety and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

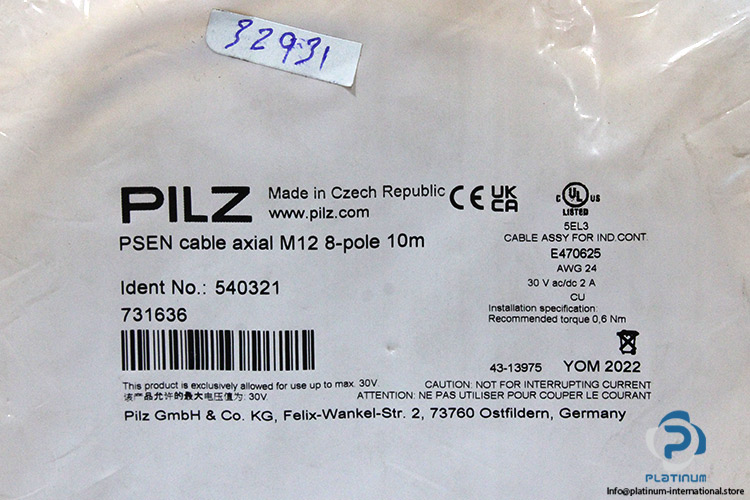

| Part No. | 540321 |
| Part No. | 731636 |
| Cable length | 10 m |
| connector 1 | 8-pins |FeMale/M12 |
| connector 2 | 8- wires / male |
| Rated current | 2 |
| Typ. conductor resistance K1 | 79 Ohm/km |
| Specific contact resistance K1 | 7E+15 Ohm*cm |
| Specific conductor capacity K1 | 64.6pF/m |
| Ambient temperature | -25 - 80 c |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP68 |

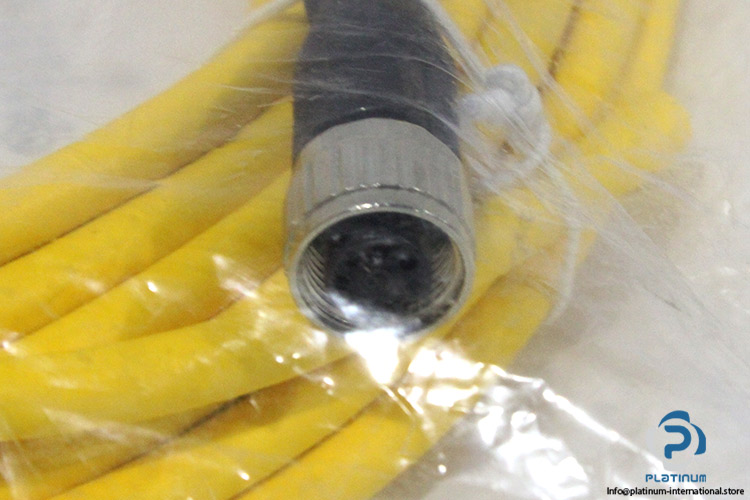

| Connector type 1 | 8-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Matl threaded ring conn 1 | CuZn nickel-plated |
| Contact surfaces material 1 | Au |
| Material of sockets | CuSn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Cable type K1 | LiF9Y11Y |
| Length cable | 10 |
| Colour cable insulation 1 | Yellow, similar to RAL 1003 |
| Housing colour | Black |
| Material of cable insulation 1 | TPU / TPE-U ,PUR |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 6.1 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Stranding K1 | 8 cores round plastic filler |
| Number of conductors | 8 |
| Approval | CE ,UKCA,cULus Listed |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099544 |
| Weight | 0,49 |
