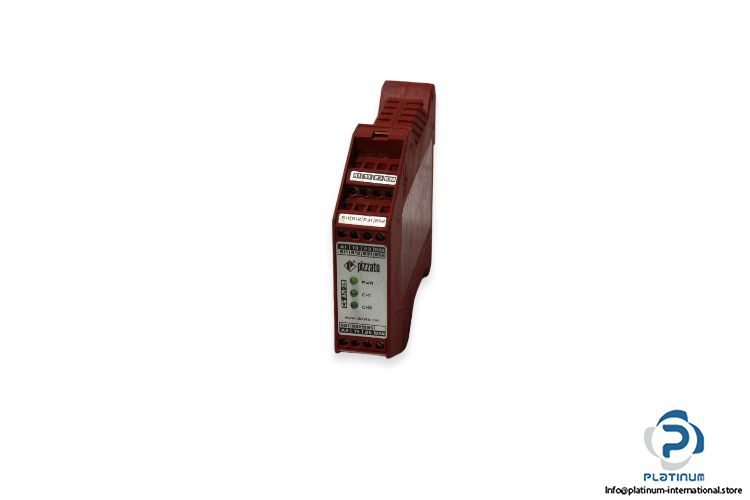

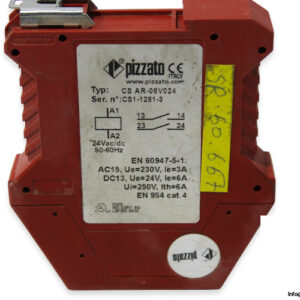

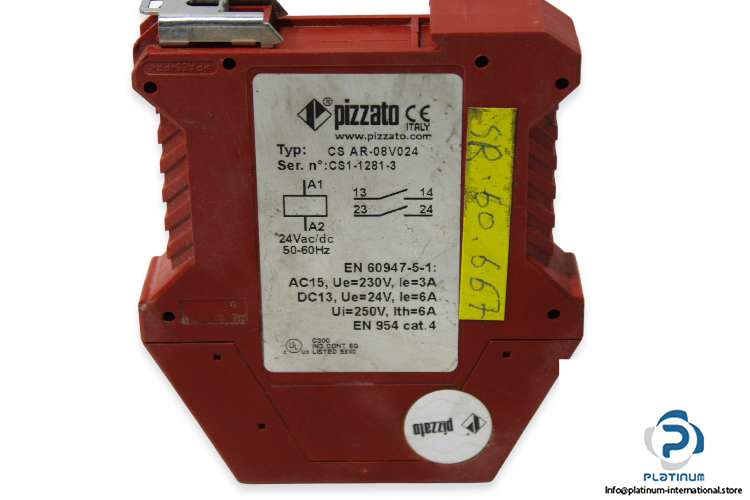

Pizzato CS AR-08V024 Emergency Stop Safety Module

Manufacturer: Pizzato

Type: Emergency Stop Safety Module

Model: CS AR-08V024

Voltage: 24 V AC/DC

Frequency: 50 / 60 Hz

Power consumption AC: < 5VA

Power consumption DC:  < 2W
Number of channels: 2 channels

Contacts type: 2 Normally open contacts

Alternating current:

AC15, Ue=230V, Ie= 3A

DC13, Ue= 24V, Ie=6A

Ui=250V, Ith= 6A

Operating Temperature: -25 … +55 °C

Connection type: screw terminals

Degree of Protection: Housing IP 40, terminal IP 20

Housing material: polyamide housing PA 66
