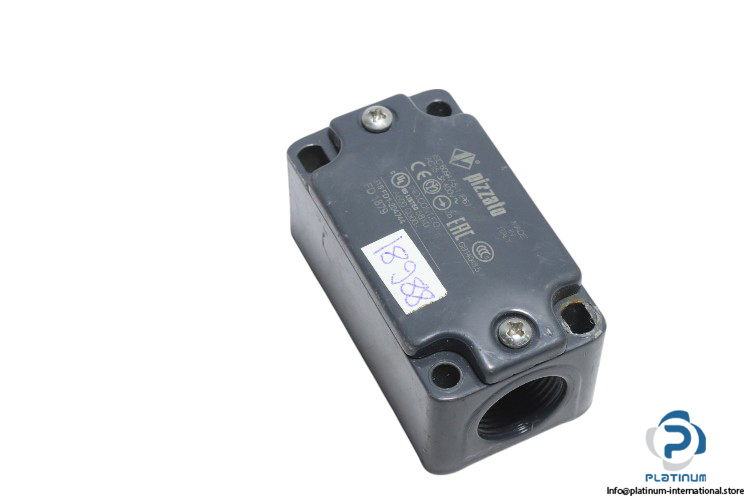

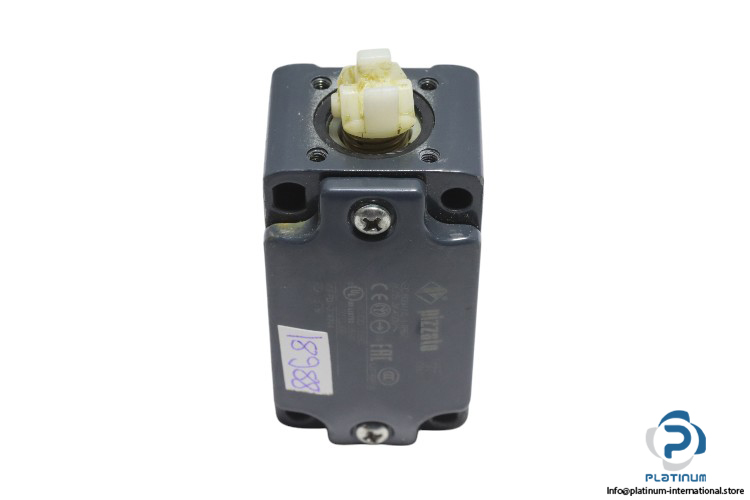

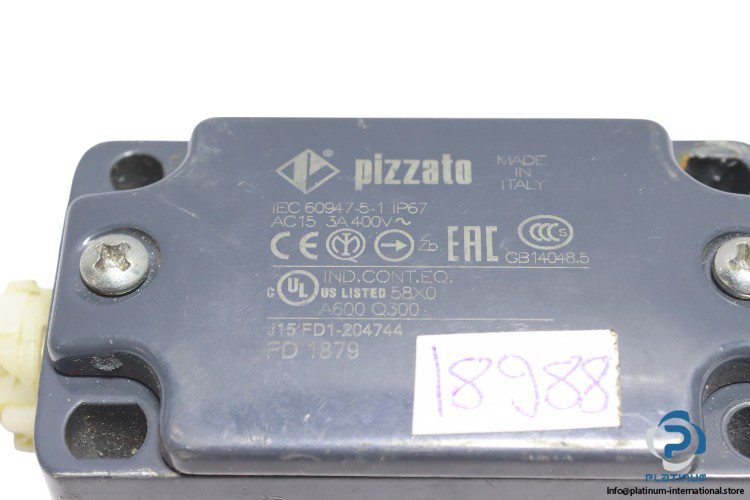

Pizzato FD 1879 Safety Switch
Safety Switch
The Pizzato FD 1879 Safety Switch offers 400V AC rated voltage, 3A rated current, and IP67 protection. It features 1NO+1NC slow action contacts, a metal housing with PG 13.5 conduit entry, and is ideal for reliable safety switching in industrial environments.Pizzato FD 1879 Safety Switch
The Pizzato FD 1879 Safety Switch is designed to enhance safety in industrial automation systems, offering reliable performance in demanding environments. This safety switch features a metal housing with one threaded PG 13.5 conduit entry, making it ideal for applications where safety and robustness are critical. Its 1NO+1NC slow action contact block provides secure switching, ensuring the protection of machinery and operators.
With a rated voltage of 400V AC and a rated current of 3A under AC-15 conditions, the FD 1879 is capable of handling moderate electrical loads, ensuring reliable operation in most industrial applications. The rope without reset allows for a simple stop, and the longitudinal head design ensures easy mounting and operation.
The FD 1879 Safety Switch features a high degree of protection with an IP67 rating, making it dust-tight and resistant to water immersion. This ensures that the switch performs reliably even in harsh industrial conditions where exposure to dirt, water, and other elements is common. The switch operates efficiently in environments where both safety and durability are essential.
Manufacturer: Pizzato
Type: Safety Switch
Model: FD 1879
The Pizzato FD 1879 Safety Switch is the ideal choice for applications requiring reliable safety switching in harsh environments, offering high protection and durable performance in a compact design.
| Rated Voltage AC-15 | 400V AC |
| Rated Current AC-15 | 3A |
| Housing | Metal housing, one threaded PG 13.5 conduit entry (FD series) |
| Contact Block | 1NO + 1NC slow action, closer contacts |
| Head | Rope without reset for simple stop, longitudinal head |
| Protection Degree | IP67 |
